Mini Pressure Transmitter PT-S

Mini Pressure Transmitter
Model: PT-S

Introduction
PT-S series mini pressure transmitter adopts piezoresistive silicone chip as measuring elements. The in- uilt circuit can transform mV signal into standard voltage and current output, which is suitable for using with computer, control equipment and display unit.

Features
■ OEM service
■ Compact structure design with affordable price, suitable for installing in limited space
■ All stainless steel integrated design, easy installation
■ Various electrical connections and thread types for selection
■ Wide measurement range: -100kPa⋯0⋯10kPa to100MPa
■ Anti-vibration, impact and corrosive
■ Anti-high interference, long term stability
■ Zero and span field calibration

Main Specifications
▼Pressure connection
Material: SS304
G1/4”(M)／M14x1.5／1/4”NPT／1/4”PT／M12x1.5／7/16-20UF／1/8”-27NPT
▼Electrical connector

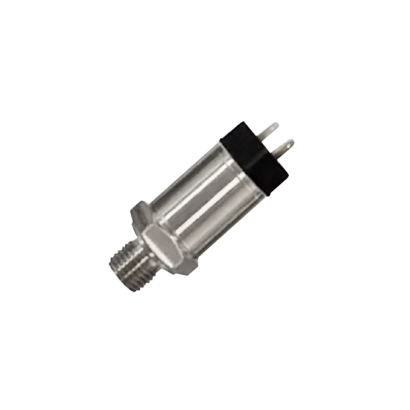

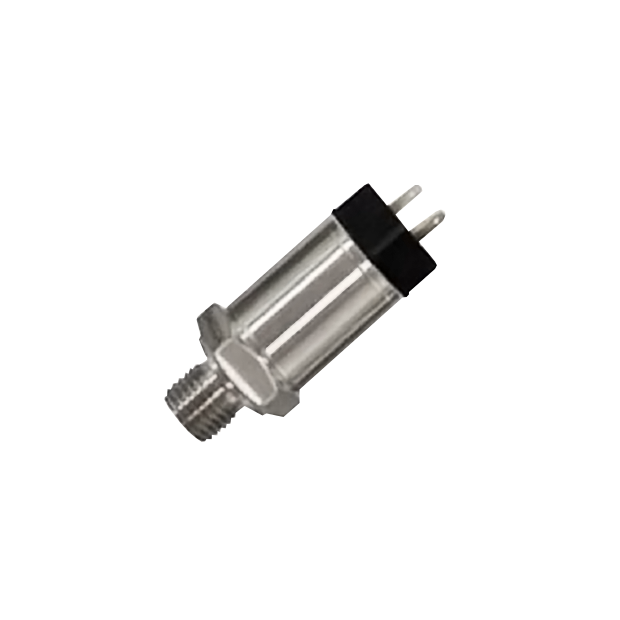

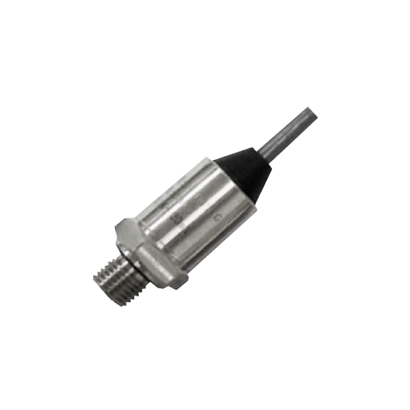

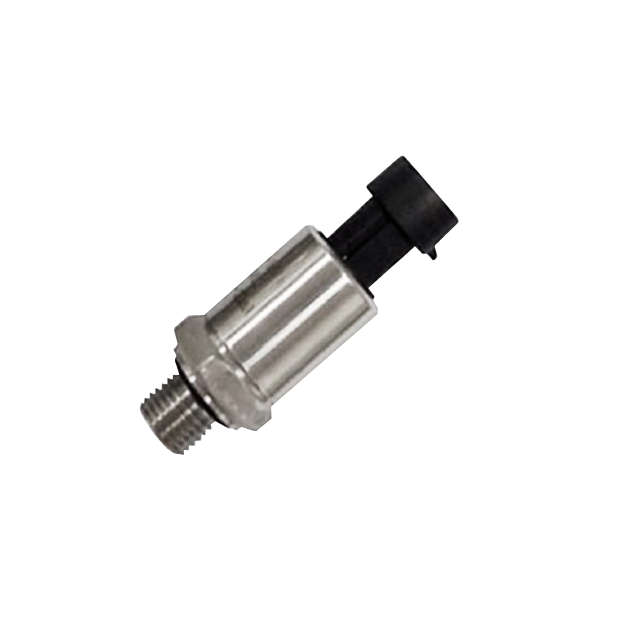

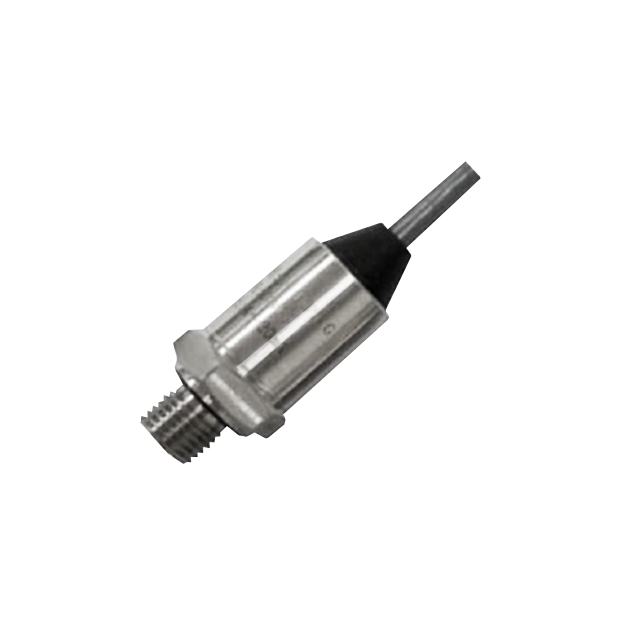

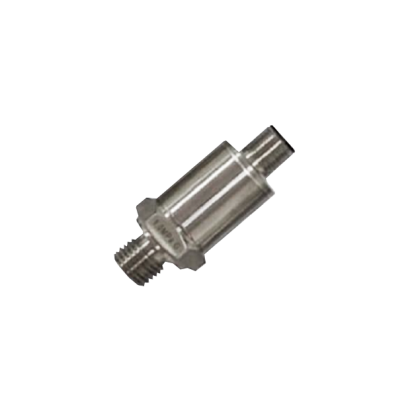

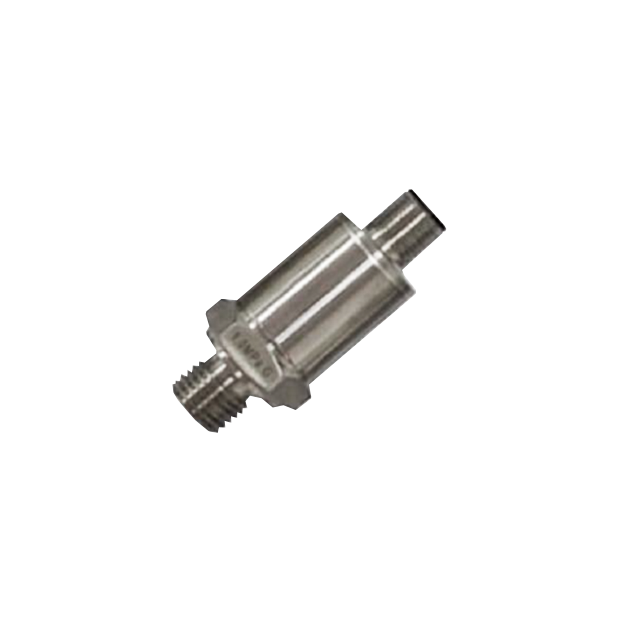

Hirschmann connector / Cable outlet / Packard / Aviation plug
▼Sealing O-ring
NBR
▼Pressure range
-100kPa…0~10kPa…100MPa
▼Pressure type
Gauge pressure / Sealed pressure / Absolute pressure
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-20 to 85℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance test
20g (20-5000Hz)
▼Impact resistance test
100g (11ms)
▼Protection level
IP 54 (Hirschmann connector)
IP 65 (Packard)
IP 67 (Aviation plug, cable outlet)
▼Explosion-proof class (option)
Exia II CT6

Other Specifications
▼Case
Stainless steel
▼Power supply
24VDC / 12VDC / 5VDC
▼Output signal
4~20mA／1~5V／0~5V／0.5~4.5V
▼Measuring elements
Piezoresistive silicone chip
Material: SS316L
▼Zero & span drift
±1.5% F.S. max (@-10~70℃)
▼Accuracy
0.5% F.S. (standard) / 0.3% F.S. (option) / 0.1% F.S (option)
▼Stability
±0.2% F.S. /year
▼Response time
≤1ms (pressure increased to 90%F.S.)
▼Insulation resistance
100MΩ, 250VDC
▼Temperature compensation
-10 to 70℃ / -20 to 85℃ (option)
▼Overpressure
1.5*F.S.
▼EMC surge
(IEC61000-4-5) 2KV
▼EMC discharge
(IEC61000-4-2)
Contact discharge 8KV
Air discharge 15KV
