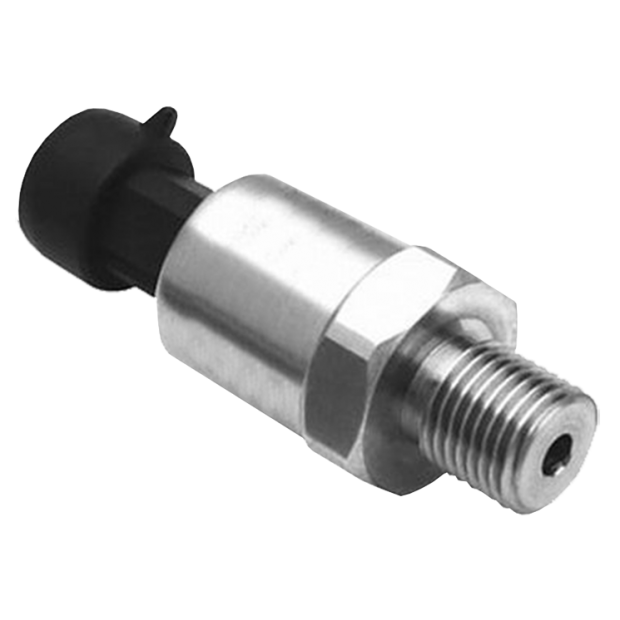

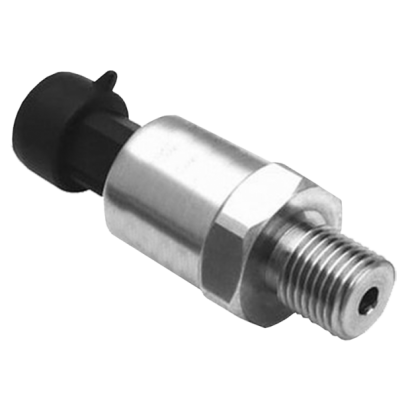

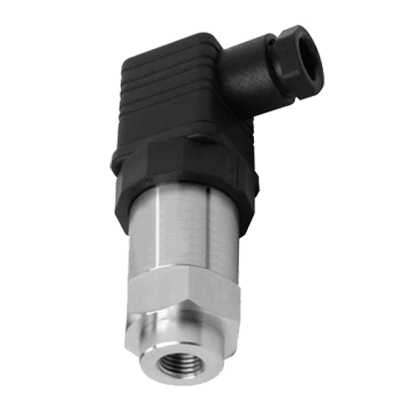

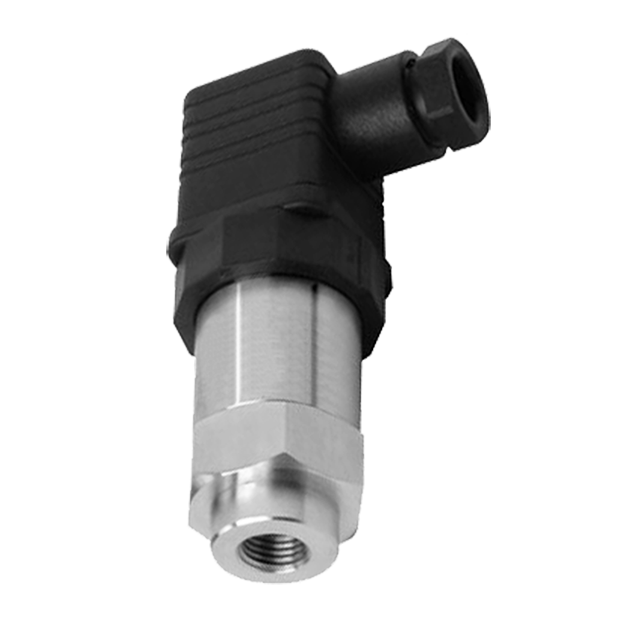

Glass Micro-fused Compact Pressure Transmitter PT-GMF
Glass Micro-fused Compact Pressure Transmitter PT-GMF
PT-GMF pressure transmitter adopts glass micro-fused technology, which is one of the most economic transmitter that can apply to gas and liquid pressure measurement.
DETAIL
Model: PT-GMF
Introduction
PT-GMF pressure transmitter adopts glass micro-fused technology, which is one of the most economic transmitter that can apply to gas and liquid pressure measurement.
Features
■ OEM service
■ Pressure sensor adopts glass micro-fused technology
■ Affordable and economic pressure transmitter
■ Compact design
■ Long-term stability
Main specifications
▼Pressure connection
M20 x 1.5
1/4”PT
Material: SS304
▼Electrical connection
Round Packard
M12x1P

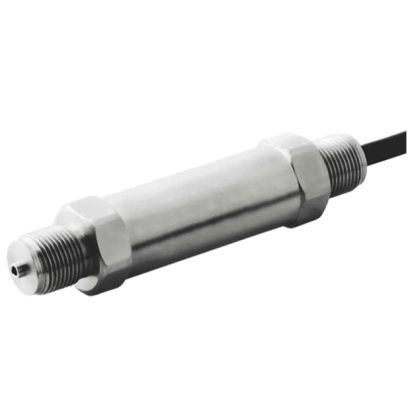

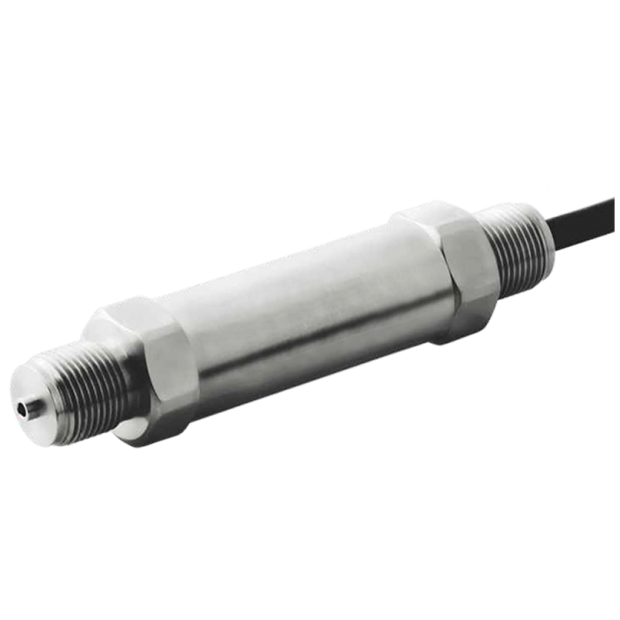

Cable outlet
Mini 4-pin
▼Pressure range
500kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa (bar and psi unit available)
▼Pressure type
Gauge pressure / Sealed gauge pressure
▼Applicable fluid
Gas and liquid that compatible with SS304
▼Operating temperature
-40 to 125℃
▼Storage temperature
-40 to 125℃
▼Protection level
IP 65
Other Specifications
▼Housing
17-4PH Stainless steel (SS630)
▼Power supply
24VDC / 12VDC / 5VDC
▼Output signal
4~20mA
0.5 to 4.5V
1 to 5V
0 to 5V
▼Measuring elements
Glass micro-fused
▼Zero & span temp. drift
±1.5% F.S. max. (@-10 to 70℃)
▼Accuracy
±0.5% F.S. (Typical)
For special measurement range (<500kPa or >60MPa), the accuracy may less than
±0.5% F.S.
▼Stability
±0.3% F.S. / year
▼Compensated temperature
-10 to 70℃ / -20 to 85℃ (option)
▼Operating overpressure
≤70kPa: 3*F.S
≤25MPa: 2*F.S.
▼Weight
About 95g
