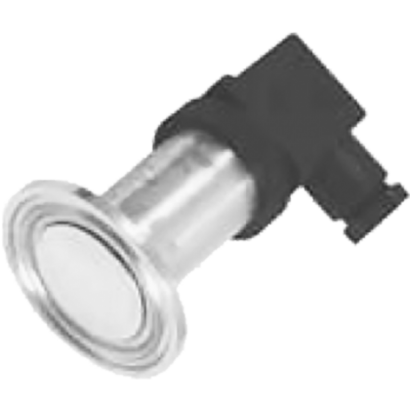

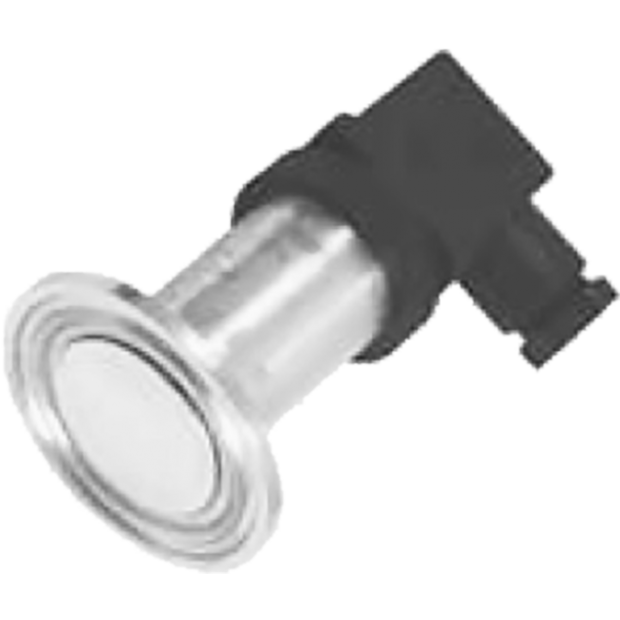

Clamped Flush Diaphragm Pressure Transmitter FDPT-500 Series
Clamped Flush Diaphragm Pressure Transmitter FDPT-500 Series
FDPT-500 adopts a piezoresistive silicon pressure sensor with the flush diaphragm as its measuring elements. The blind space has been eliminated to prevent impurity or viscosity generated. The features make FDPT-500 transmitter suitable for the sanitary required environment such as food, pharmaceuticals, and wine industry.
DETAIL
Model: FDPT-500 Series
Introduction
FDPT-500 adopts a piezoresistive silicon pressure sensor with the flush diaphragm as its measuring elements. The blind space has been eliminated to prevent impurity or viscosity generated. The features make FDPT-500 transmitter suitable for the sanitary required environment such as food, pharmaceuticals, and wine industry.
Features
■ OEM service
■ The flush diaphragm connection design can prevent impurity generated
■ Specially designed for high sanitary requirement
■ Integrated stainless steel structure
■ Compact design, easy installation
■ High anti-impact and anti-vibration performance
■ Various output signals for selection
Main Specifications
▼Pressure connection
Flush diaphragm connection
Material: SS316L
Specification: 2”／2.5”Clamp
▼Electrical connector

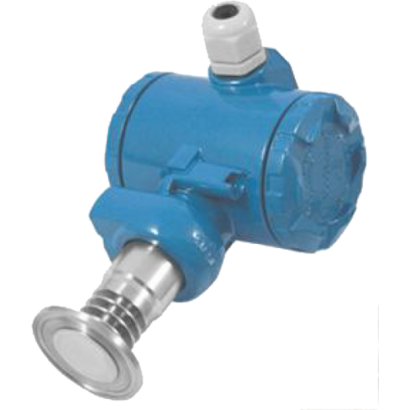

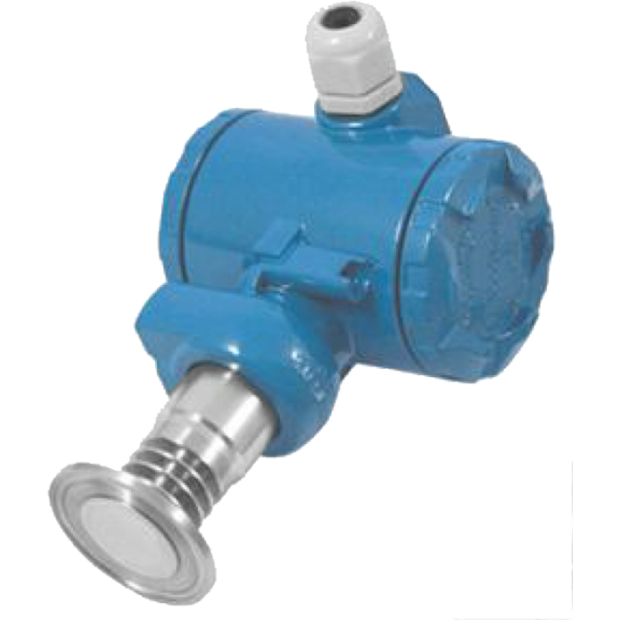

Hirschmann connector／2088 housing
▼Pressure range
-100…0~10kPa…10MPa
Please refer to pressure range table
▼Pressure type
Gauge pressure／Absolute pressure／Sealed pressure
▼Applicable media
Corrosive / viscous fluid that compatible with SS316L
▼Operating temperature
Normal Type▼
-40 to 85℃

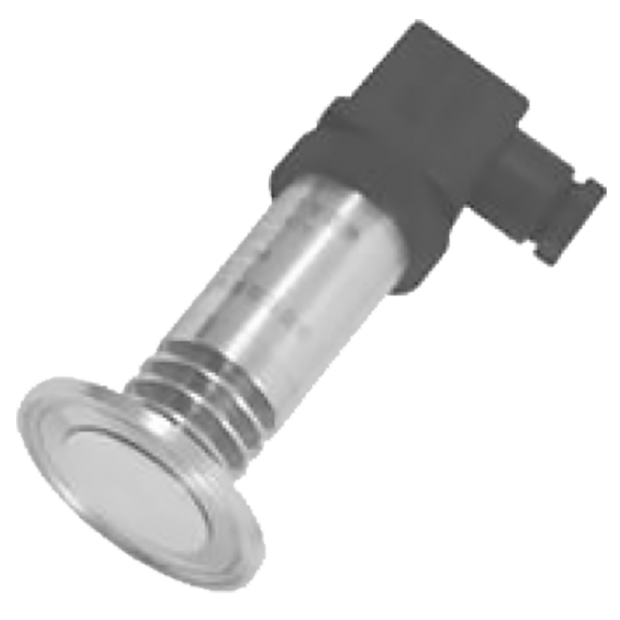

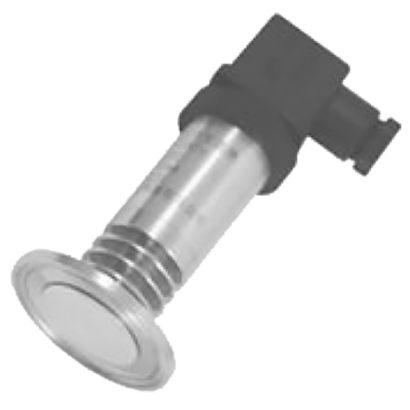

With cooling fin Type (Three pieces)▼
-40 to 150℃
With cooling fin Type (Five pieces)▼
-40 to 250℃
▼Storage temperature
-40 to 85℃
▼Protection level
IP65
Other specifications
▼Case material
SS304
▼Clamp material
SS316L
▼Diaphragm material
SS316L
▼Output signal
2-wire: 4~20mA
3-wire: 0-5V / 0-10V / 1-5V
▼Power supply
2-wire: 12～30VDC
3-wire: 12~24VDC
▼Accuracy
±0.5%F.S.
▼Zero drift
±1.5%F.S. (@-20 to 85℃)
▼Hysteresis and Repeatability
±0.1%F.S.
▼Insulation
100MΩ／250VDC
▼Response time
≤1ms (increasing to 90%F.S.)
▼Service life
≧10*106 pressure cycle
▼Vibration resistance
20g (25Hz~2kHz)
