All Stainless Steel Micro Pressure Gauge (Liquid-filling Type) MP-SUS-L

All Stainless Steel Micro Pressure Gauge (Liquid-filling Type)
Model: MP-SUS-L

Introduction
MP-SUS-L all stainless steel micro pressure gauge filled with liquid, providing excellent anti-vibration performance with long service life.

Features
■ OEM service
■ Oil fillable micro pressure gauge
■ Minimum measurable pressure 80 mmAq
■ All stainless steel design

Main Specifications
▼Size
4”, 6”
▼Installation type

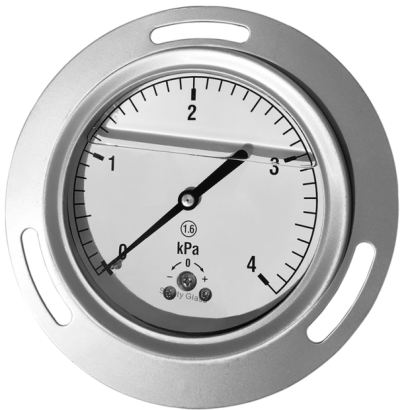

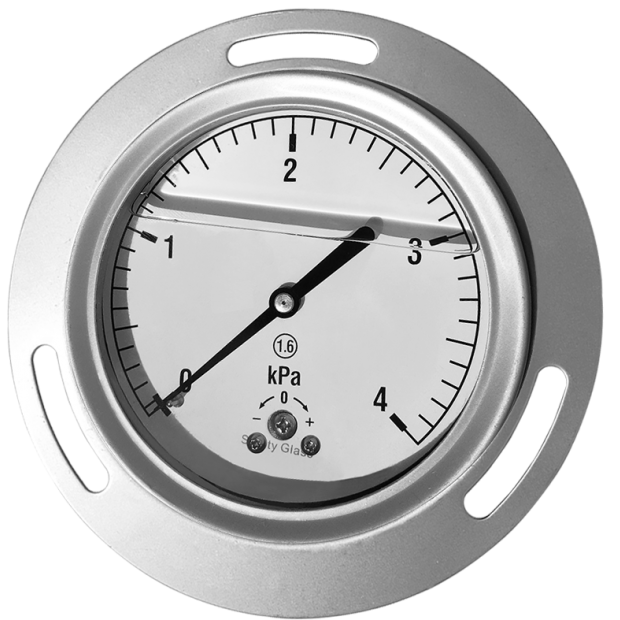

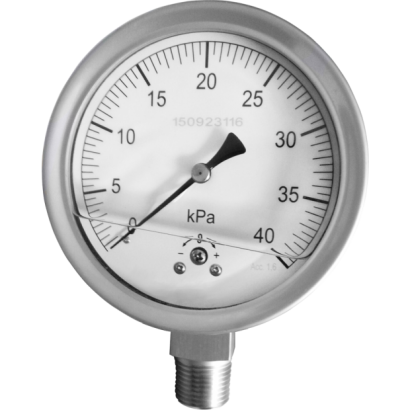

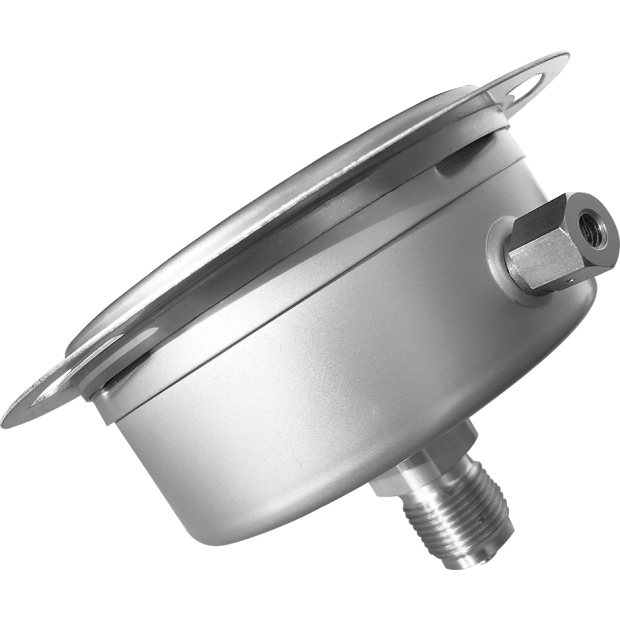

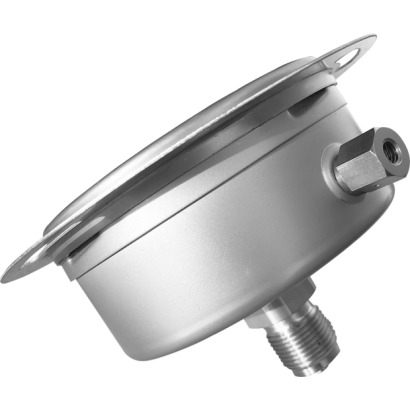

Bottom mount (A)／Back mount (ADC)／Back mount with flange (BDC)
▼Window
PC／Acrylic
Option: safety glass (Only available for 4”& 6”)
▼Pressure connection
Material: SS304
Thread size: 1/4”, 3/8”, 1/2”
Thread type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
0….300 to 6000 mmAq
Minimum measurable micro pressure ±25 mmAq (Only available for 6”)
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Liquid-filling
Silicone oil／Glycerin
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-20 to +60°C
▼Temperature drift
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP65

Other Specifications
▼Ring material
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS304
▼Pointer
Aluminum with black enamel
▼Dial face
Black scale
Pressure unit, scale & color can be customized upon request
Micro pressure unit▼
kPa, mbar, mmH₂O, mmAq, mmWC, inH₂O
▼Measuring elements
Capsule
Material: SS304
▼Movement
Stainless steel
▼Accuracy
±3% (Option: ±2%)
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
