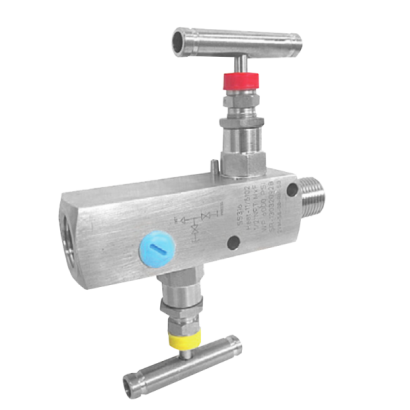

2-Valve Manifolds (Remote Installation Type) 2VM-RI
2-Valve Manifolds (Remote Installation Type) 2VM-RI
Features
■ Forged all-in-one structure provides high strength and durability
■ With one bleed valve and one block valve, enabling easily block, bleed and calibrate the static pressure, transmitter, or gauge.
■ Forged all-in-one structure provides high strength and durability
■ With one bleed valve and one block valve, enabling easily block, bleed and calibrate the static pressure, transmitter, or gauge.
DETAIL

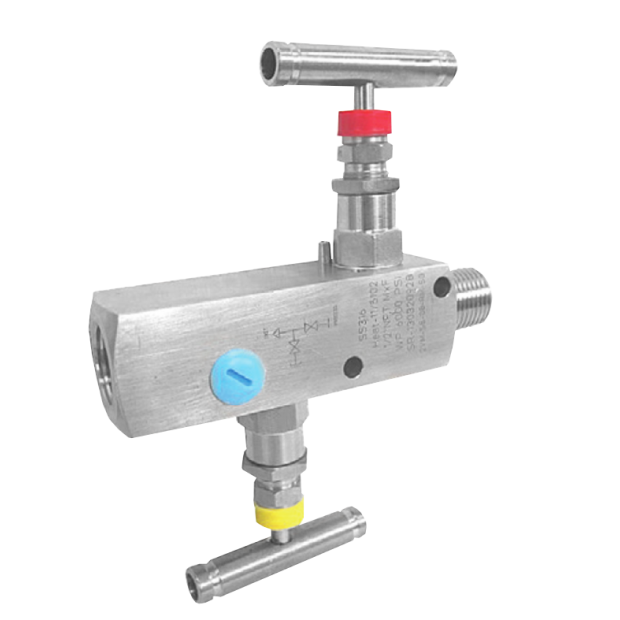

Model: 2VM-RI
Features
■ Forged all-in-one structure provides high strength and durability
■ With one bleed valve and one block valve, enabling easily block, bleed and calibrate the static pressure, transmitter, or gauge.
Main Specification
▼Body Dimensions
120 x 18 mm
▼Process Connection
1/2”NPT Male
▼Instrument Connection
1/2”NPT Female
▼Bleed Connection
1/4”NPT Female
▼Working Pressure
Please refer to working pressure / temperature table
▼Working Temperature
Please refer to working pressure / temperature table
Other Specification
▼Body
SS 316
▼Gland Body
SS 316
▼Gland Retainer
SS 316
▼Washer
SS 316
▼Packing
PFTE / Graphoil
▼Packing Washer
SS 316
▼Spindle
Stellited SS 316
▼Lock nut
SS 316
▼Setting screw
Steel
▼Handle
SS304 / Aluminum
Powder coated
▼Lock pin
SS 316 / SS 304
▼Dust Cap
LDPE
▼Vee Tip
17-4 PH
