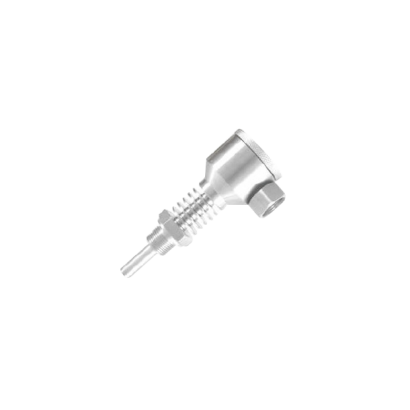

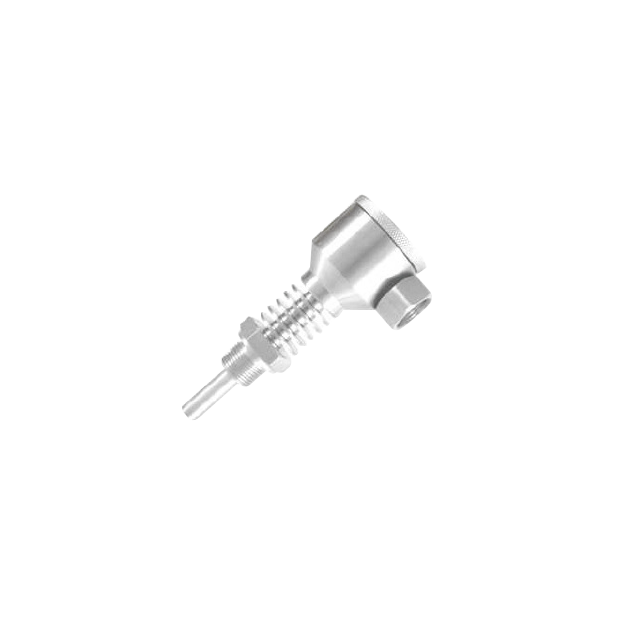

Explosion-Proof Temperature Transmitter ATTX-200
Explosion-Proof Temperature Transmitter ATTX-200
ATTX-200 temperature transmitter consists of Pt100 temperature sensor, compensation circuit and switching circuits. It features high stability, temperature sensitivity and reliability. The integrated structure, all- welded design and explosion-proof enclosure ensuring safe operation and temperature measurement in hazardous environment.
DETAIL
Model: ATTX-200
Introduction
ATTX-200 temperature transmitter consists of Pt100 temperature sensor, compensation circuit and switching circuits. It features high stability, temperature sensitivity and reliability. The integrated structure, all-welded design and explosion-proof enclosure ensuring safe operation and temperature measurement in hazardous environment.
Features
■ Temperature sensor adopts Pt100
■ Explosion-proof class Exia II CT6
■ Fast response to ambient temperature change
■ Customized stem insertion length
■ Cooling fin installed to use in high temperature measurement
Main Specifications
▼Process connection
Material: stainless steel
M20x1.5, G1/2”, M14x1.5
Other thread types are available made-to-order

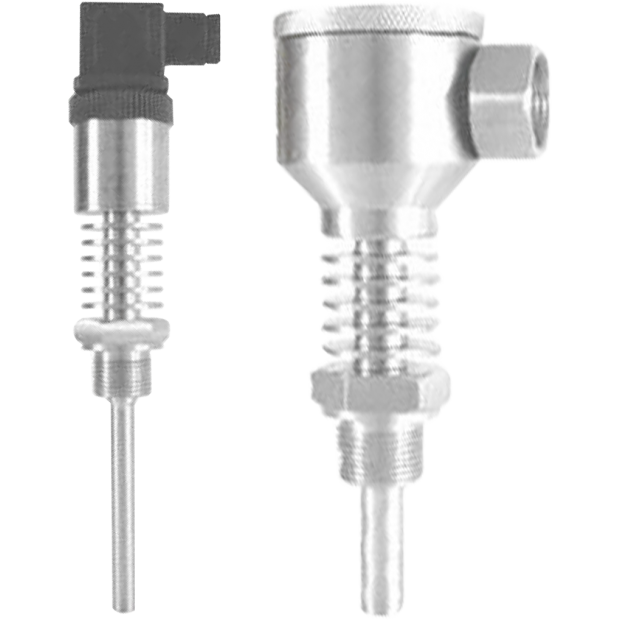

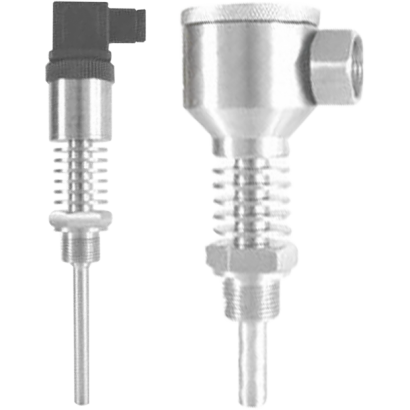

▼Electrical connector

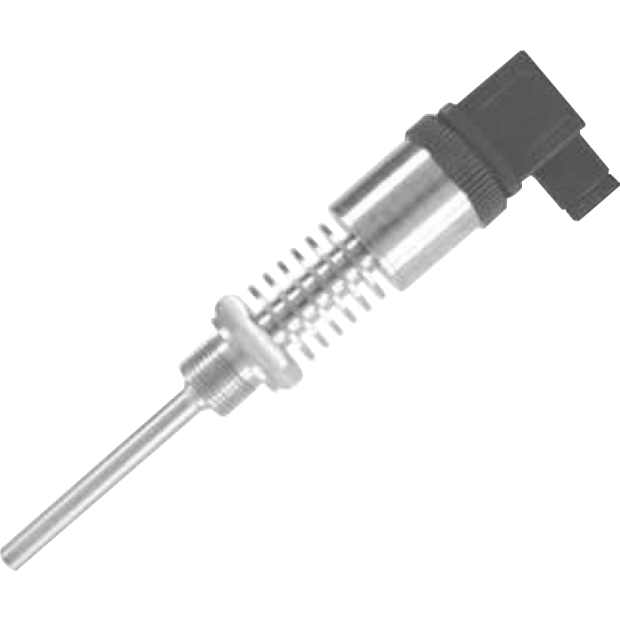

Hirschmann connector (H)
Explosion-proof connector (E)
▼Output signal
4~20mA
▼Stem insertion length
30 / 50 / 75 / 100 / 150mm
▼Stem outer diameter
Ø8mm
▼Temperature range
-50 to 250℃
▼Ambient temperature
-40 to 85℃
▼Relative humidity
0…95%RH
▼Protection level
IP65
▼Explosion-proof level
Intrinsically safe: Exia II CT6
Other Specifications
▼Case material
Stainless steel
▼Measuring elements
Pt100
▼Power supply
24VDC (Standard)
16-36VDC is available
▼Accuracy
0.5%F.S.
Option: 0.3%F.S.
▼Response time
≤30s
▼Load resistance
100MΩ / 250VDC
▼Power consumption
<0.5W
▼Temperature drift
±0.2% F.S./℃
▼Stability
≤0.2% F.S./year
▼Vibration resistance
f ≤ 55Hz
Amplitude: <0.15mm
▼Other requests (Option)
Third party notarized documents
Inspection report
