Digital Platinum Resistance Thermometer RTD-907A
Digital Platinum Resistance Thermometer RTD-907A

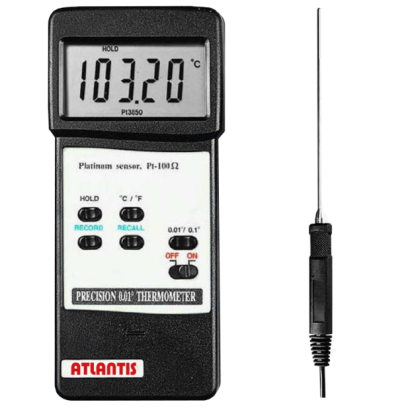

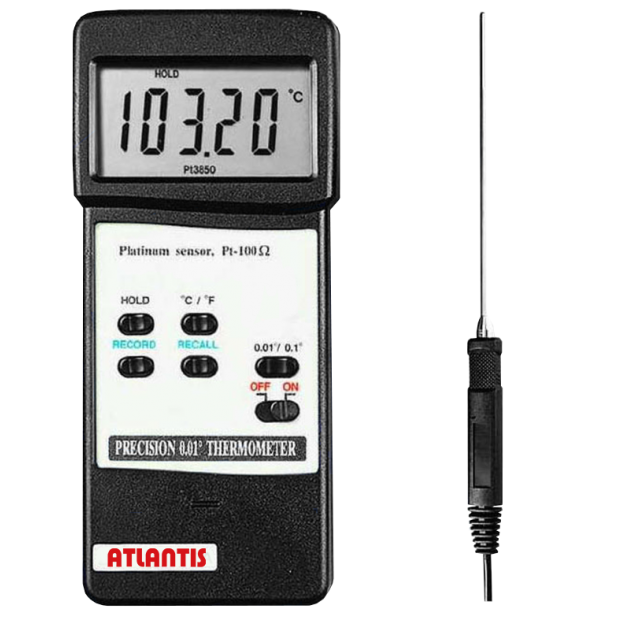

RTD-907A digital platinum resistance thermometer used with a 4-wire Pt100Ω probe can measure wide temperature range.
DETAIL
Model: RTD-907A
Introduction
RTD-907A digital platinum resistance thermometer used with a 4-wire Pt100Ω probe can measure wide temperature range.
Features
■ High accuracy 0.1%, highest resolution: 0.01
■ Used with 4-wire Pt100Ω probe to measure temperature
■ Wide temperature range: -199.99 to +850℃
■ Switchable temp. unit: ℃／℉
■ Switchable resolution
■ Large LCD display ensures clear reading
■ RS232 output
■ Data recording function－record max.／min. temperature value
■ Lock current reading function
■ Software calibration can replace traditional hardware calibration
■ Low battery / overload indication - screen display「－－－－」
■ Probe／carrying box／software for options
Main Specifications
▼Dimension
180 x 72 x 32mm
▼Screen size
Large LCD 62 x 34mm
Height 13mm
▼Screen display
5-digit LCD screen display
Switchable temp. unit ℃/°F
Switchable resolution
Low battery indication
▼Temperature range
Min. -199.99℃
Max. +850℃
▼Probe (option)
Pt100
Input connector: DIN 4-pin socket
▼Ambient temperature
0 to 50℃ (32 to 112℉)
▼Storage temperature
-10 to 60℃ (14 to 140℉)
▼Ambient humidity
< 80%RH
▼Accessories (option)
Pt100 probe
Carrying box
RS232 cable
USB cable
RS232/USB interface software
Data integration software
Other Specifications
▼Refresh rate
0.4 sec/time
▼Resolution
Switchable decimal point
0.01℃ / 0.1℃
0.02℉ / 0.1℉
▼Power supply
DC 9V alkaline battery
▼Data output
RS232 PC interface
▼Power consumption
DC 15mA
▼Display numerical accuracy
±( 0.1 % + 0.2)℃／±( 0.1 % + 0.4 )℉
▼Data record
Record max. & min. value
▼Weight
285g
