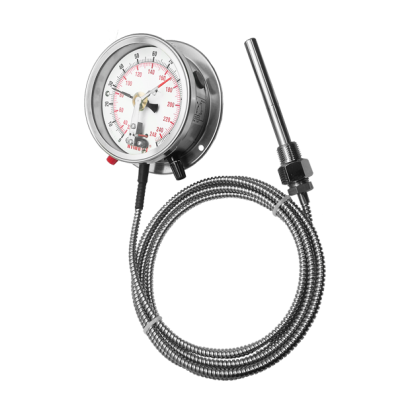

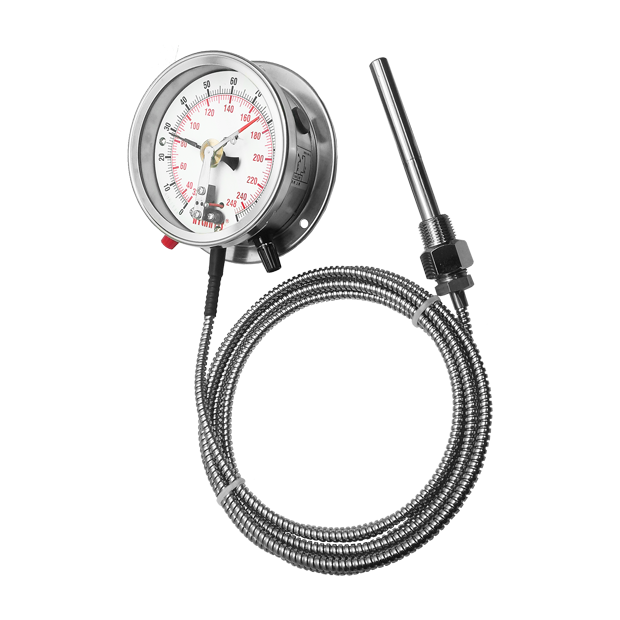

Remote Reading Thermometer with Electrical Contact FTC series
Remote Reading Thermometer with Electrical Contact FTC series
The remote reading thermometer equipped with a buzzer, a flashing indicator or a relay to remote control and monitor connected facility.
DETAIL
Model: FTC series
Introduction
The remote reading thermometer equipped with a buzzer, a flashing indicator or a relay to remote control and monitor connected facility.
Features
■ OEM service
■ Adopts sliding switch SPST, various contact functions
■ Various installation type
■ Stem／Capillary’s outer diameter and length can be customized upon request
■ Media-actuated thermometer can fast response to ambient temperature
Main Specifications
▼Size
3”, 4”, 5”, 6”
▼Installation type
Back mount with flange (FTFFC)
Back mount with U-clamp (FTFUC)
Wall mount with flange (FTWFC)
▼Window
Acrylic
▼Process connection
Material: SS304
1/2”PT
3/8”PT
With swivel nut
▼Stem
Material: SS304／SS316
Length: 6”(standard)
Outer diameter: 12mm
Other outer diameter／length are available upon request
▼Capillary
Material: SS304
Length: 3m
Outer diameter: 6.35mm
Other outer diameter／length are available upon request
▼Temperature range
Min. -50°C
Max. +650°C
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS 304
External adjustable screw
▼Wiring type
Visual wiring (FL)／Visual magnet base with junction box (JB)
▼Switch contact type
Sliding switch SPST
▼Contact function
Single contact N.O. (1a) / Single contact N.C. (1b) / Double contacts N.O.+N.C. (1a1b)／Double contacts N.C.+N.O. (1b1a)／
Double contacts N.O.x2 (2a)／Double contacts N.C.x2 (2b)
For more information please refer to single / double contacts wiring
▼Contact material
80% silver, 20% nickel, 10μm gold-plated (>110V)
Gold (≦36V)
▼Number of contacts
SPST*1／SPST*2／SPST*4
▼Pointer
Aluminum with black enamel (With adjustable screw)
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Gas-actuated (standard)
Liquid-actuated (option)
▼Temperature accuracy
±1℃<-20~80>
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
