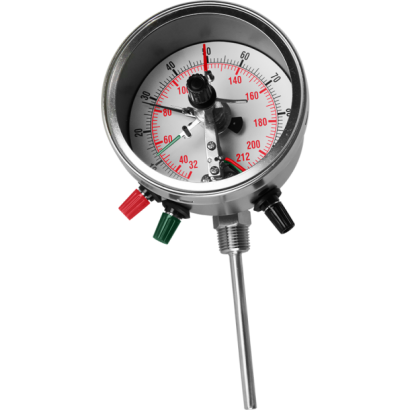

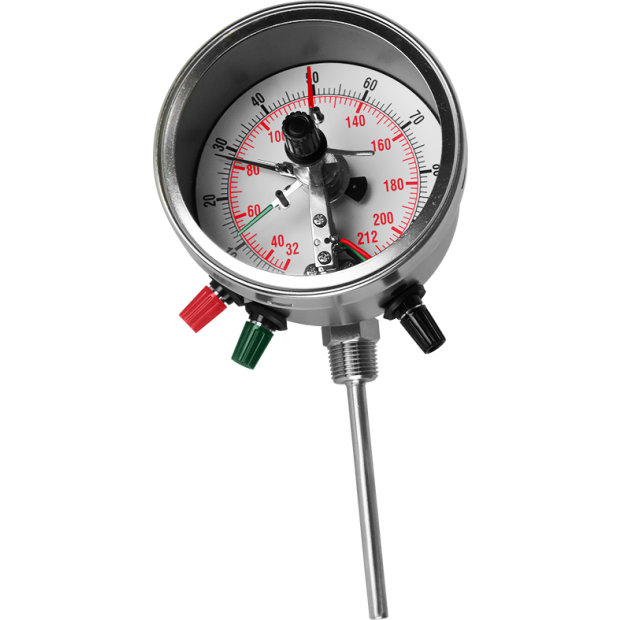

Bimetal Thermometer Gas-inmetal with Electrical Contact (Adjustable angle type) BTAC
Bimetal Thermometer Gas-inmetal with Electrical Contact (Adjustable angle type) BTAC
BTAC adjustable angle type thermometer with sliding contact SPST is used to control the facility connected to the thermometer. BTAC has wide temperature measuring range (-50 to 600℃), the stem length and outer diameter can be customized upon request, which makes it suitable for various industrial application.
DETAIL
Model: BTAC
Introduction
BTAC adjustable angle type thermometer with sliding contact SPST is used to control the facility connected to the thermometer. BTAC has wide temperature measuring range (-50 to 600℃), the stem length and outer diameter can be customized upon request, which makes it suitable for various industrial application.
Features
■ OEM service

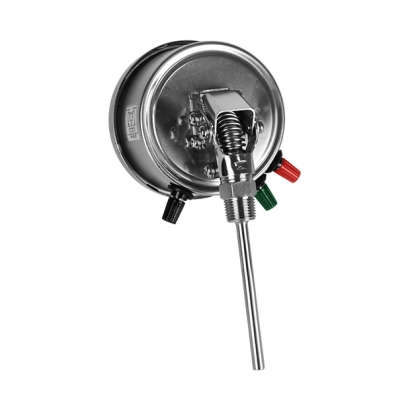

■ Adjustable angle type thermometer
■ Adopts sliding switch SPST with various contact function
■ All stainless steel design
■ Full scale accuracy within ±1.5%F.S.
■ Stem length and outer diameter can be customized upon request
■ With external adjustable screw
■ Dual temperature unit scale℃/℉
Main Specifications
▼Size
3”, 4”, 5”, 6”
▼Installation type
Adjustable angle installation
▼Window
Acrylic
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”, 1/2”, 3/4”, 1”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS304／SS316
Outer diameter: 6.35mm
Length: 63.5mm ~ 2032mm
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable media
Liquid and gas that compatible with SS304
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Crimp bezel
▼Case
SS304
With external adjustable screw
▼Wiring type
Visual wiring (FL)／Visual magnet base with junction box (JB)
▼Contact type
Sliding switch SPST
▼Contact function
Single contact N.O. (1a) / Single contact N.C. (1b) / Double contacts N.O.+N.C. (1a1b)／Double contacts N.C.+N.O. (1b1a)／
Double contacts N.O.x2 (2a)／Double contacts N.C.x2 (2b)
For more information please refer to single / double contacts wiring
▼Contact material
80% silver, 20% nickel, 10μm gold-plated (>110V)
Gold (≦36V)
▼Number of contacts
SPST*1／SPST*2／SPST*4
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bimetal
Temperature sensing area: last 2”~4”of stem
▼Temperature accuracy
±1.5%F.S. (Option: ±1% F.S.)
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
