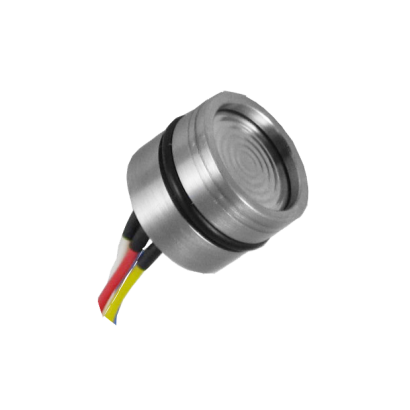

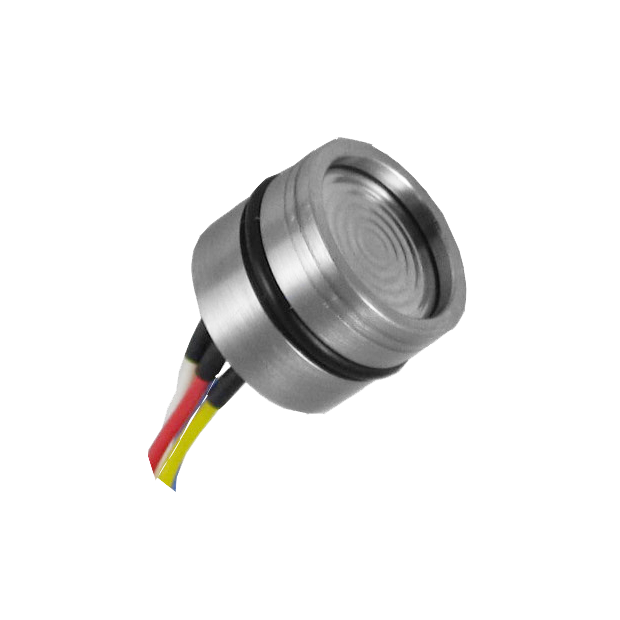

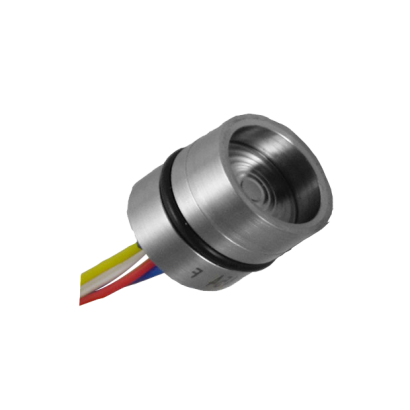

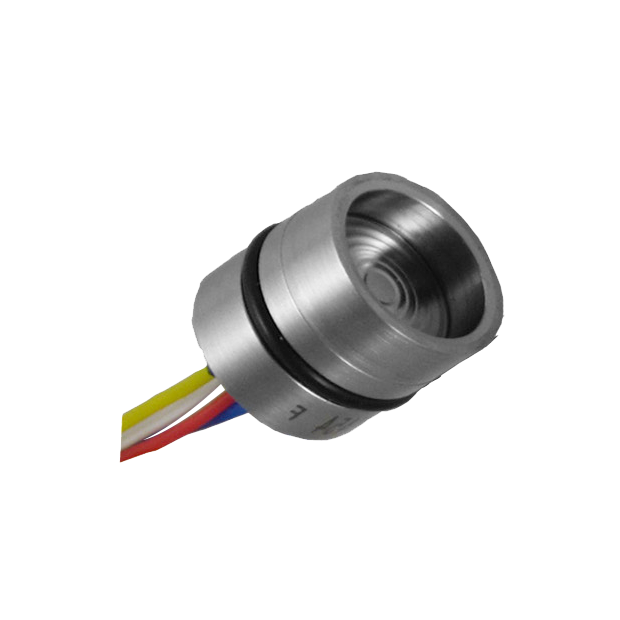

Industrial Pressure Sensor PS(E)-WT10
Industrial Pressure Sensor PS(E)-WT10
PS(E)-WT10 industrial pressure sensor is a standard and economical pressure sensor that applied in air and liquid pressure measurement. Each sensor adopts a high sensitivity piezoresistive silicon pressure chip. The housing is filled with oil for pressure transmission. PS (E)-WT10 sensor is specially designed for industryapplication with long-term stability.
DETAIL
Model: PS(E)-WT10
Introduction
PS(E)-WT10 industrial pressure sensor is a standard and economical pressure sensor that applied in air and liquid pressure measurement. Each sensor adopts a high sensitivity piezoresistive silicon pressure chip. The housing is filled with oil for pressure transmission. PS (E)-WT10 sensor is specially designed for industry application with long-term stability.
Features
■ OEM service
■ Amplified output (internal ASIC)
■ Available output signal - 4~20 mA / 0.5 to 4.5V / I2C
■ Adopts high-tech piezoresistive silicon chip
■ Long-term stability
■ Various pressure range available
Main specifications
▼Pressure range
35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa
▼Pressure type
Gauge pressure / Absolute pressure / Sealed gauge pressure
▼Electrical connection
Wire connection / Pin connection
▼Diaphragm connection type
Standard welding / Front welding / Flush diaphragm

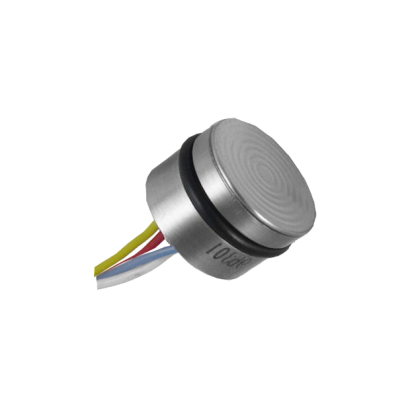

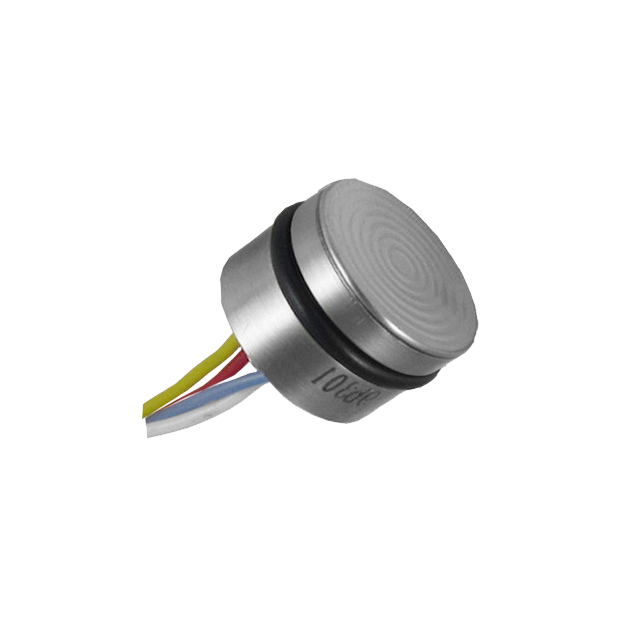

▼Wire connection
4-wire (typical) / 5-wire (option)
Length: 39xØ0.015mm
Silicon shielded
Heat resistance: 200℃

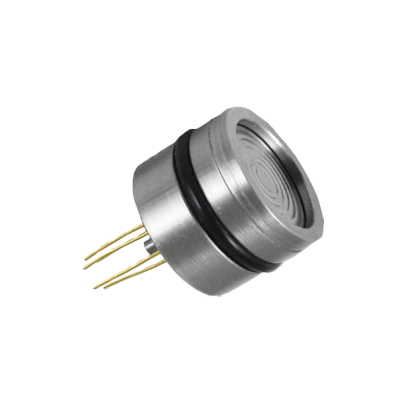

▼Pin connection
Kovar pin (0.6um gold platted)
▼Sealing
O-ring sealing
Material: NBR, Viton (option)
▼Oil-filling
Silicon oil (standard)
Olive oil (optional, for sanitary application)
▼Operating temperature
-40 to 125℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance
20g (20-5000Hz)
▼Protection level
IP65
Other Specifications
▼Diaphragm material
SS316L
▼Housing material
SS316L
▼Output signal
4~20 mA (Power supply 24V) / 0.5 to 4.5V (Power supply 5V) / I2C (Power supply 3.3V)
▼Power supply
24V / 5V / 3.3V
▼Accuracy (include linearity, repeatability, and hysteresis)
±0.25% F.S. (Typical)
▼Zero and span temp. drift
0.02% F.S./℃ (≥100kPa)
0.04% F.S./℃ (<100kPa)
▼Long term stability
±0.2% F.S. / year
▼Compensated temperature
-10 to 70℃ / (Typical)
0 to 60℃ (<100kPa)
▼Insulation resistance
>200MΩ / 250VDC
▼Bridge resistance
Min. 2600Ω
Max. 5500Ω
▼Operating overpressure
≤70kPa: 3*F.S
<25MPa: 2*F.S.
≥25MPa: 1.5*F.S.
▼Weight
About 40g
