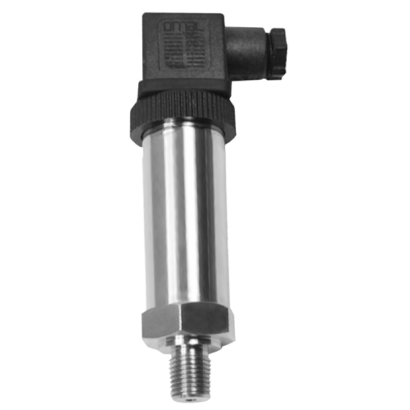

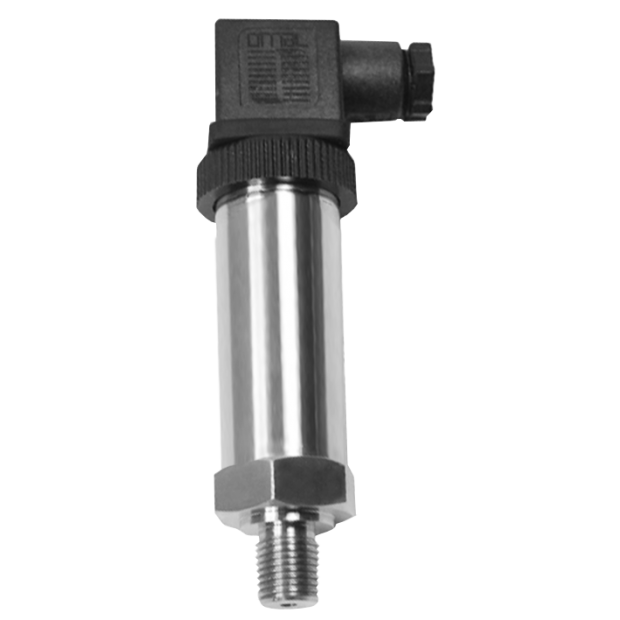

High Pressure Transmitter PT-HP

High Pressure Transmitter
Model: PT-HP

Introduction
PT-HP High pressure transmitter adopts metallic strain as measuring element. PT-HP is designed for high, ultra-high pressure and high impact frequency environment.The special integrated design ensures PT-HP features high stability and reliability.

Features
■ OEM service
■ Adopts metallic strain pressure sensor to measure high and ultra-high pressure. Measurement
range: 0⋯40 to 600 MPa
■ The hard metal diaphragm ensures impact resistance performance
■ The integrated stainless steel design with easy installation feature ensures long service life in
hazardous environment
■ Using inorganic material sealing technology to improve aging problem of sealing ring.
■ Various types of electrical and thread connections are available for selection
■ Anti-vibration, anti-impact, anti-corrosive design
■ High anti-interference with long-term stability
■ Zero and span calibration

Main Specifications
▼Pressure connection
Material: SS 304
M20 x 1.5／G1/4”
Other thread spec. available upon request
▼Electrical connection
Hirschhann connector (DIN 43650) / Cable outlet / Aviation plug
▼Sealing
NBR
▼Pressure range
0...40 to 600 MPa
Please refer to the pressure range table
▼Pressure type
Gauge pressure
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Media temperature
-40℃~85℃ / -40℃~120℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance
Vibration: 20g (20-5000Hz)
Impact: 100g (11ms)
▼Protection level
IP 65

Other Specifications
▼Housing
Stainless steel
▼Power supply
9～30 VDC
▼Output signal
4~20mA
▼Measuring elements
Metallic strain pressure sensor
▼Zero & span temp. drift
0.5% F.S.／10℃
▼Accuracy
±0.5%F.S / ±0.25%F.S.
▼Stability
±0.15% F.S.／year
▼Insulation resistance
≥500MΩ／1000VDC
▼Compensated temperature
0℃~70℃ / -20℃~85℃
▼Mechanical service life
≥5 million cycles
▼Pressure rating
Overpressure: 1.25 *F.S.
Burst pressure: 1.5 *F.S.
