Digital Pressure Gauge DPG-GH Series
Digital Pressure Gauge DPG-GH Series
DPG-GH Series digital pressure gauge adopts diffused silicon as measuring element, features wide pressure range and highest accuracy can up to 0.1%. It is suitable for hydraulic, oil, and air pressure measurement.
DETAIL
Model: DPG-GH Series
Introduction
DPG-GH Series digital pressure gauge adopts diffused silicon as measuring element, features wide pressure range and highest accuracy can up to 0.1%. It is suitable for hydraulic, oil, and air pressure measurement.
Features
■ OEM service
■ 4-digit LCD screen display with white backlight (Other backlight color is available made-to-order)
■ Highest accuracy up to 0.1%
■ Switchable pressure unit up to 7
■ Temperature compensation function
■ Peak-hold function
■ A key to zero function
Main Specifications
▼Size
4”
▼Installation type

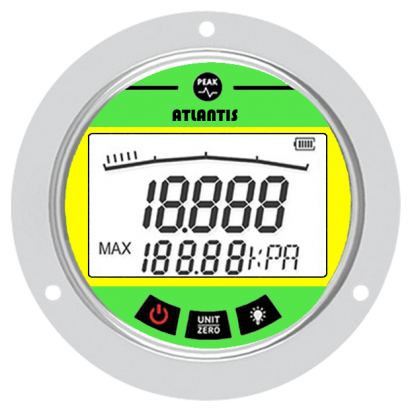

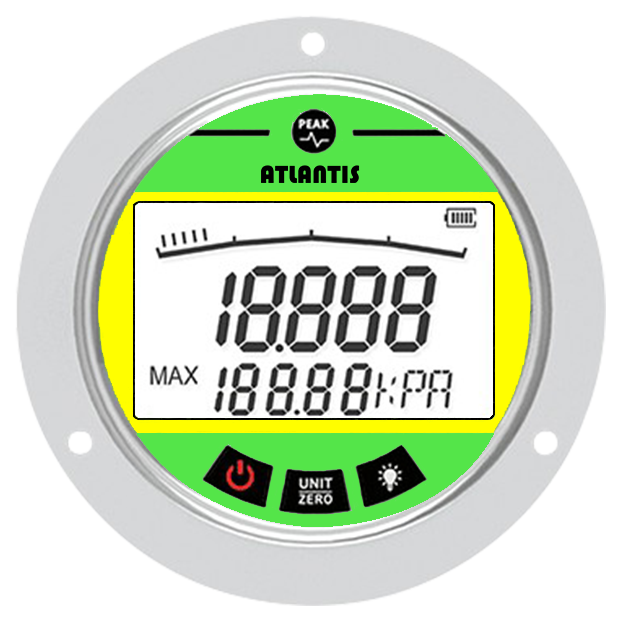

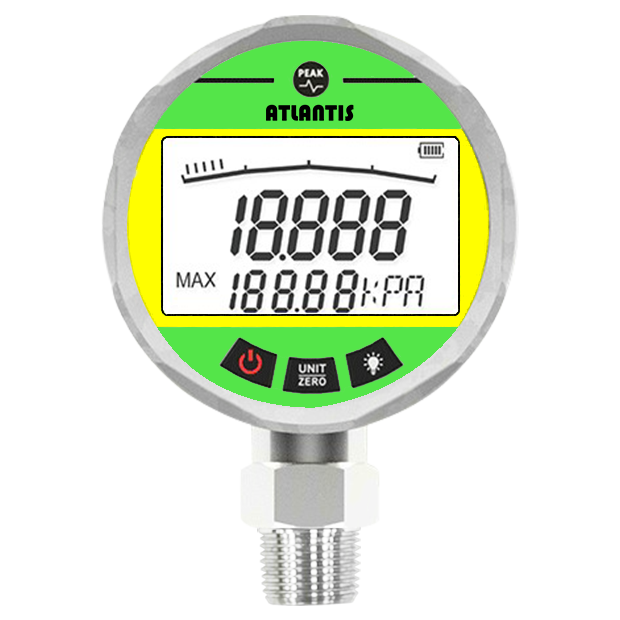

Bottom mount (A) / Back mount with flange (Centric thread) (BDC)
▼Pressure connection
Thread specification:
M20*1.5, G1/4”, G1/2”, 1/4”PT, 1/4”NPT
Material: SS304 / SS316 / SS316L
Other thread specification are available made-to-order
▼Pressure type
Gauge pressure
Vacuum pressure
Compound pressure
▼Pressure range
Please refer to pressure range table
▼Applicable media
Liquid and gas that compatible with pressure connection
▼Ambient temperature
-10~100℃
▼Operating temperature
-10~80℃
▼Temperature compensation
-10~80℃
Other Specifications
▼Case material
SS304 / SS316L
▼Screen display
LCD 5-digit screen display with white backlight
▼Power supply
Lithium battery / 3A battery
▼Measuring element
Diffused silicon
▼Pressure unit
MPa, kg/cm2, kPa, psi, bar (Standard)
mH2O, mmHg (Option)
▼Accuracy
±0.4%F.S. (Standard)
(Option: ±0.1% F.S. / ±0.2%F.S. / ±0.5% F.S. / ±1.0% F.S. )
▼Overpressure
150%
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Other pressure unit: mH2O, mmHg
