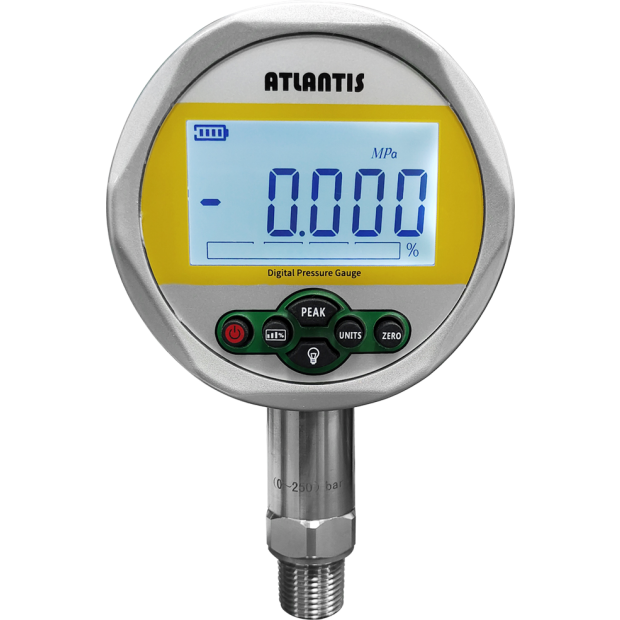

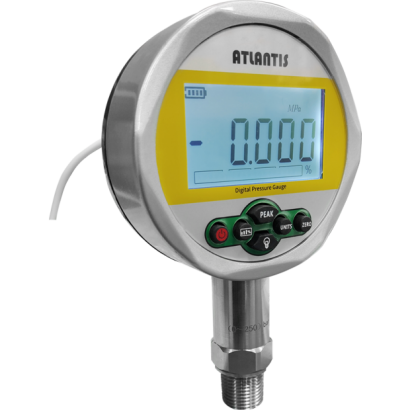

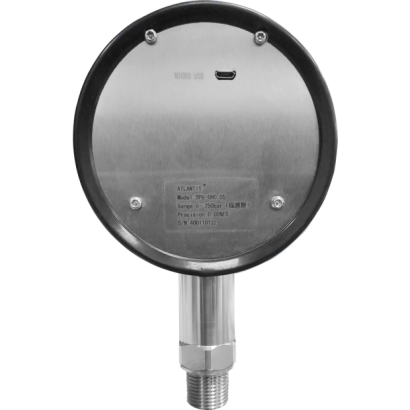

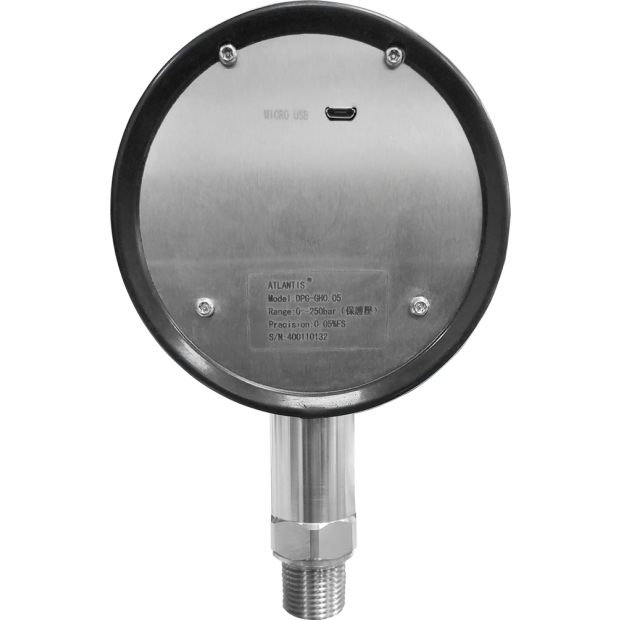

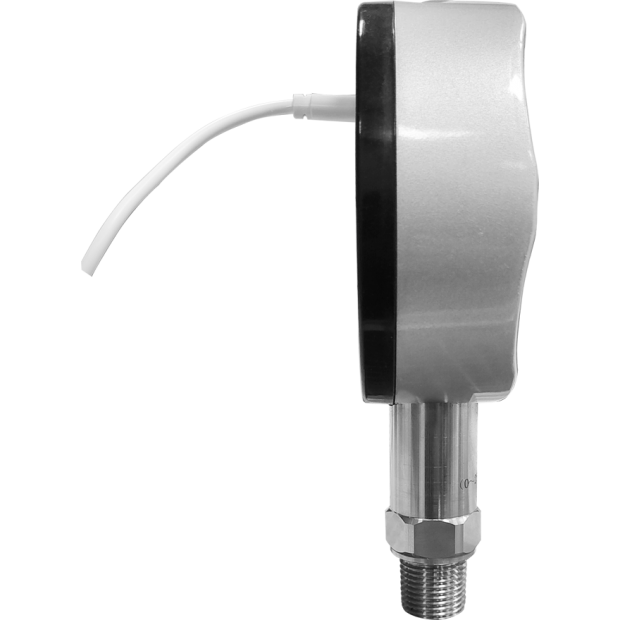

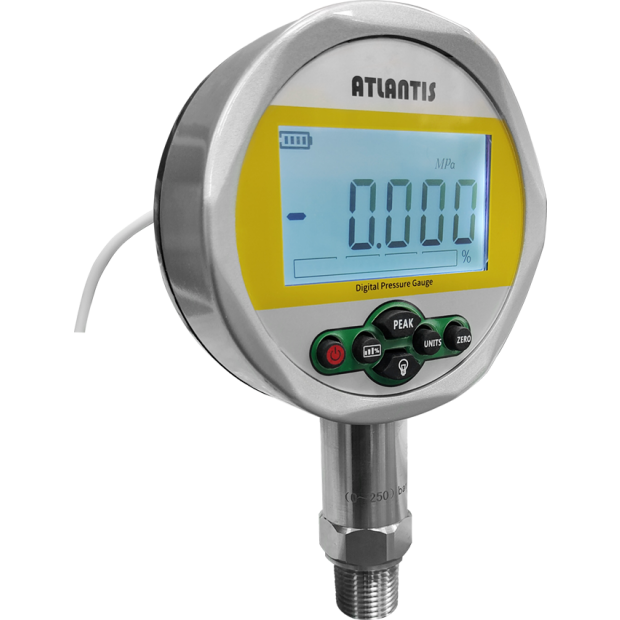

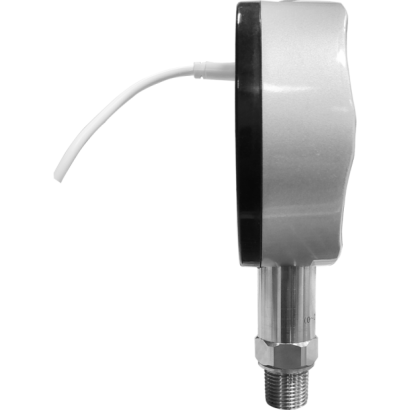

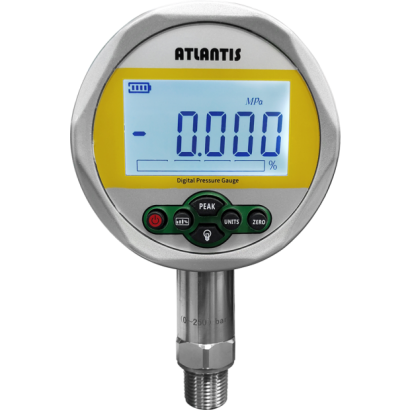

High Precision Digital Pressure Gauge DPG-GH0.05
High Precision Digital Pressure Gauge DPG-GH0.05
DPG-GH0.05 High Precision Digital Pressure Gauge features wide pressure range and highest accuracy can up to 0.05%. With anti-corrosive adapter can resist strong acid and alkali.
DETAIL
Model: DPG-GH0.05
Introduction
DPG-GH0.05 High Precision Digital Pressure Gauge features wide pressure range and highest accuracy can up to 0.05%. With anti-corrosive adapter can resist strong acid and alkali.
Features
■ OEM service
■ 5-digit display with backlight
■ Switchable between up to 7 units
■ Accuracy up to ±0.05%
■ Designed with a flower-shaped internal screw to prevent unauthorized disassembly and reduce the risk of misuse
Main Specifications
▼Size
4”
▼Pressure connection
Thread spec.: 1/4”PT
Thread type: Female thread
Material: Stainless steel
Other thread material and spec. is available made-toorder
▼Pressure range
For details please refer to pressure range table
▼Applicable media
With anti-corrosive adapter can resist strong acid and alkali
▼Ambient temperature
-20~80℃
▼Operating temperature
-10~60℃
▼Accessory (Option)
Anti-corrosive adapter
Other Specifications
▼Case
Aluminum alloy
▼Screen display
5-digit display with backlight
▼Pressure unit
Standard: MPa, kg/cm2, kPa, psi
Option: bar, mH2O, mmHg
▼Power supply
3.7V rechargeable lithium battery / External power supply via 110V or 220V to USB (5V/2A requirement)
▼Accuracy
±0.05% F.S.
▼Overpressure
1.5*F.S.
▼Other requests (Option)
Third party notarized documents
Inspection report
