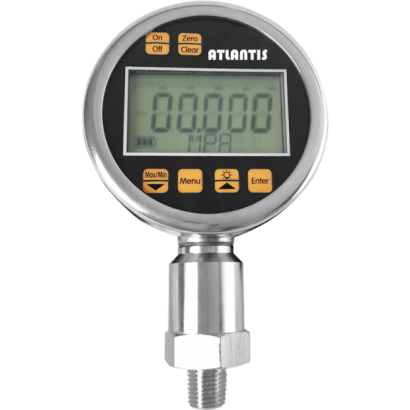

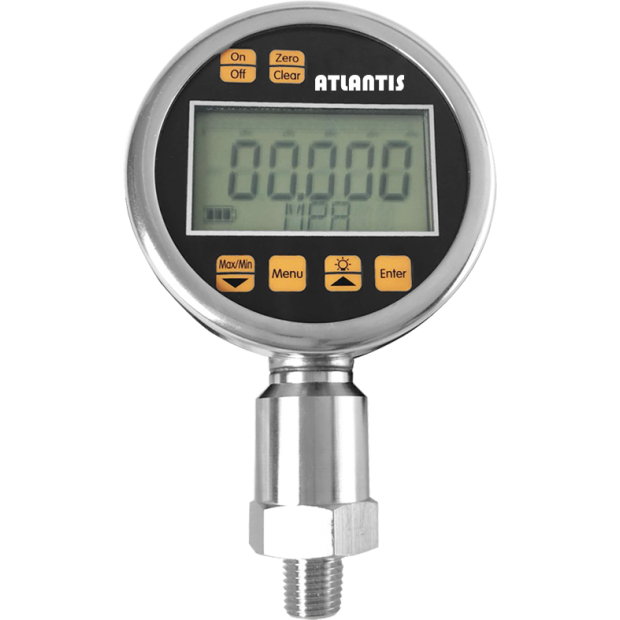

Multifunction Digital Pressure Gauge DPG-0.25B3.0 (5CD)
Multifunction Digital Pressure Gauge DPG-0.25B3.0 (5CD)
DPG-0.25B3.0 (5CD) multifunction digital pressure gauges features integrated stainless steel design, complete functions, and high measuring accuracy. Suitable for a variety of industrial pressure testing requirements.
DETAIL
Model: DPG-0.25B3.0 (5CD)
Introduction
DPG-0.25B3.0 (5CD) multifunction digital pressure gauges features integrated stainless steel design, complete functions, and high measuring accuracy. Suitable for a variety of industrial pressure testing requirements.
Features
■ OEM service
■ Accuracy: 0.25%F.S.
■ 5-digit LCD display with backlight
■ Switchable pressure unit
■ Switchable max./min. pressure value display
■ With current remaining battery indicator
■ Refresh rate, auto off time, and backlight auto off time can be adjusted
■ 4-20ma output, switch signal output, RS485 output performance are available (Option)
Main Specifications
▼Size
3” (83mm)
▼Installation type
Bottom mount
▼Pressure connection
Material: stainless steel
1/4”NPT
Other thread spec. are available made-to-order
▼Pressure range
Gauge pressure▼
0…200kPa to 35MPa
Negative pressure▼
-30 to 0inHg
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Ambient temperature
0-50℃
▼Ambient humidity
<95%RH
▼Atmospheric pressure
86-106kPa
Other Specifications
▼Case
Stainless steel
▼Screen display
5-digit LCD display with backlight
Display range▼
-99999~99999
Resolution▼
0.0001
▼Screen size
53 (W) x 28 (H)mm
▼Value refresh rate
1~10 times/sec.
▼Power supply
AAA battery x3
▼Pressure unit
bar kg/cm2, kPa, MPa, ftH2O, mbar, inH2O, inHg, mmHg, psi
▼Accuracy
±0.5% F.S. (standard)
±0.25% F.S. (options)
▼Weight
500g
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Customized dial (Brand, color, etc.)
Thread adapter: Adapt other type of thread
4-20mA signal output
Switch signal output
RS485 output
