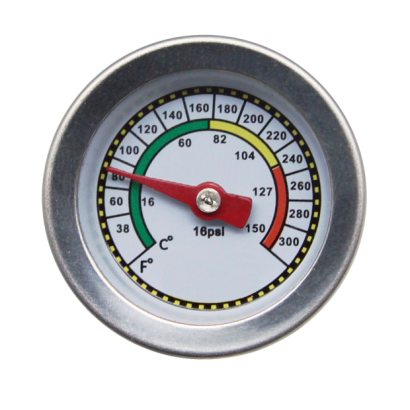

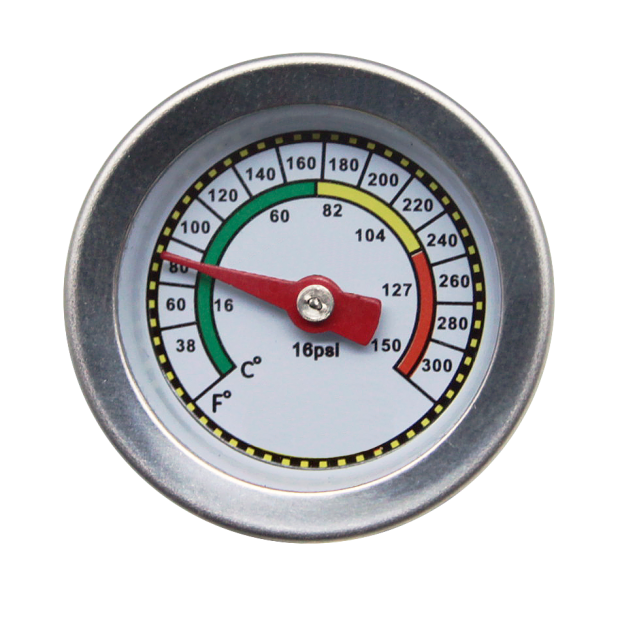

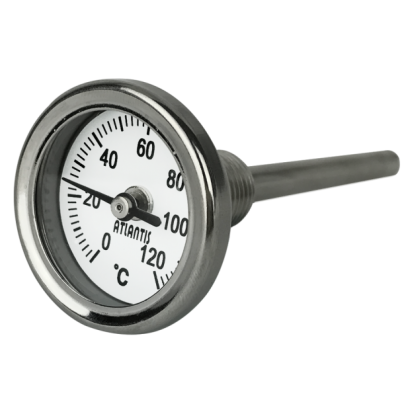

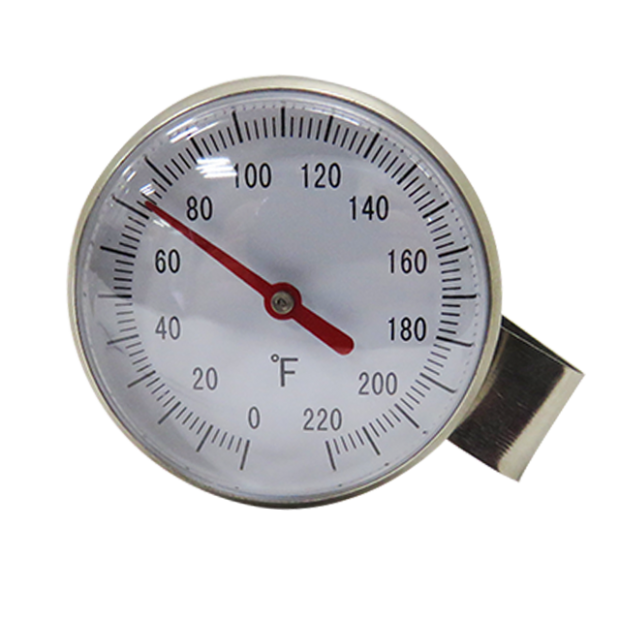

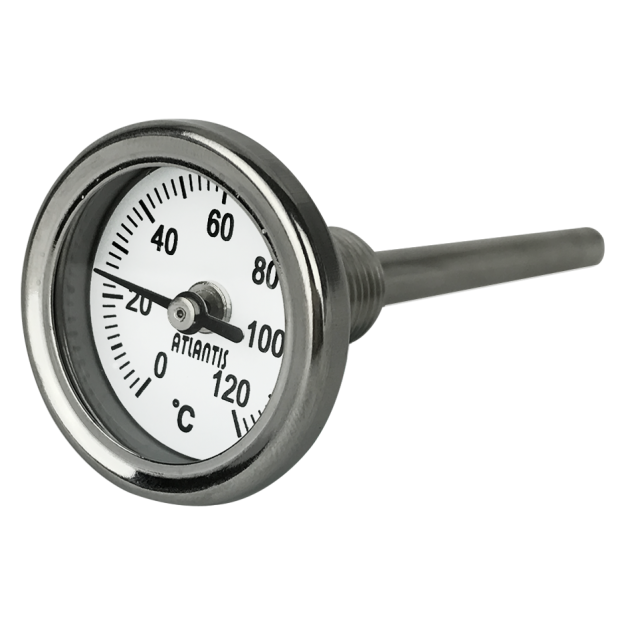

Bi-metal Thermometer (Small Household Type) BTT-H

Bi-metal Thermometer (Small Household Type) BTT-H

BTT-H thermometer with compact design and various size, stem specification and customized dial face for selection. BTT-H thermometer has been widely applied in comprehensive household application such as roasting, cooking and baking.
  • Bi-metal Thermometer
  • Bi-metal Thermometer
  • Bi-metal Thermometer
  • Bi-metal Thermometer
  • Bi-metal Thermometer.png
DETAIL
Bi-metal Thermometer (Small Household Type)
Model: BTT-H

Introduction

BTT-H thermometer with compact design and various size, stem specification and customized dial face for selection. BTT-H thermometer has been widely applied in comprehensive household application such as roasting, cooking and baking.

Features
■ OEM service
■ Stem material adopts food grade SS304 Housing material adopts SS430
■ Customizable dial face, stem outer diameter and length
■ Wide temperature measurement range

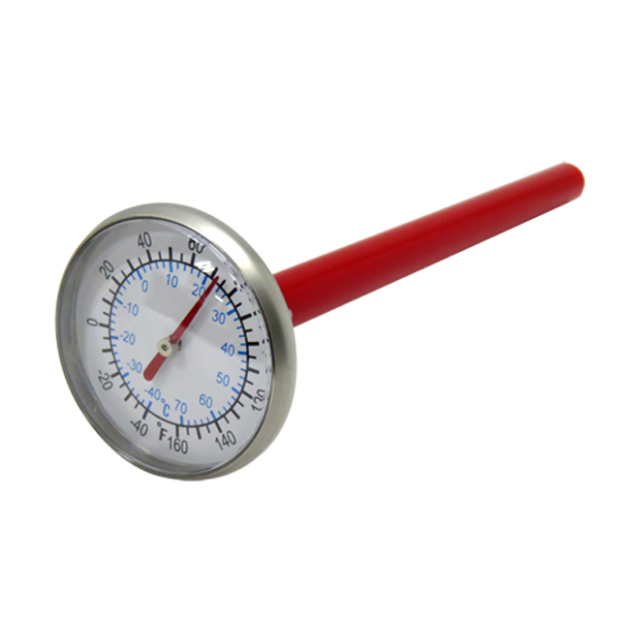

■ Additional protection: silicone rubber protective case (option)

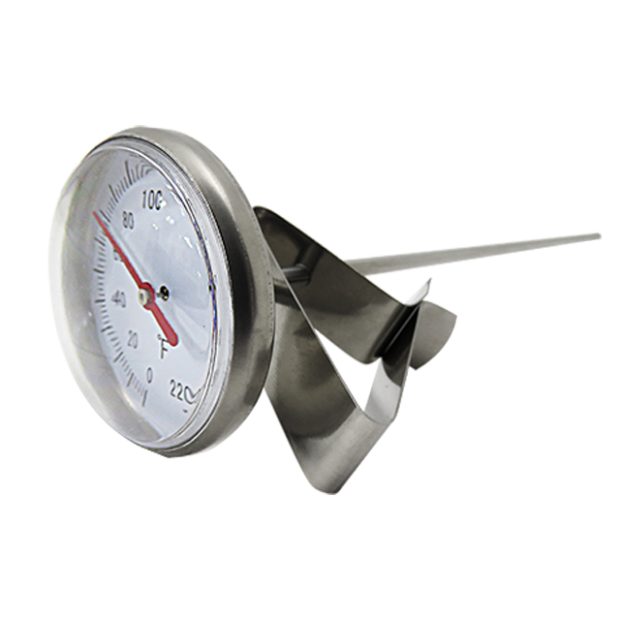

■ Optional accessory: fix clamp and plastic stem case (option)

Main Specifications
▼Size
Please refer to regular size table
▼Type
Back connection
▼Connection
Standard: hex nut
Thread connection: 1/16”PF
Other specification available upon request
▼Window
PC / Glass
(depends on operating temperature range)
▼Stem
Material: SS 304
Outer diameter: 3.8mm (std.)
Length: 137mm (std.)
Other stem outer diameter and length available upon request
▼Temperature range
Min.: -50°C
Max.: 600°C
(Custom temperature scale range available within
-30 to 200°C)
▼Applicable fluid
Media that compatible with SS 304
▼Protection level
IP 54

Other Specifications
▼Housing material
SS430
▼Pointer
Aluminum with red enamel / Aluminum with black enamel
▼Dial face
Black scale on white board °C / ℉ Single / dual scale
Customizable dial face
▼Measuring elements
Bi-metal
Temperature sensing area: last 2”-4”of stem
▼Temperature accuracy
1.5%
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
