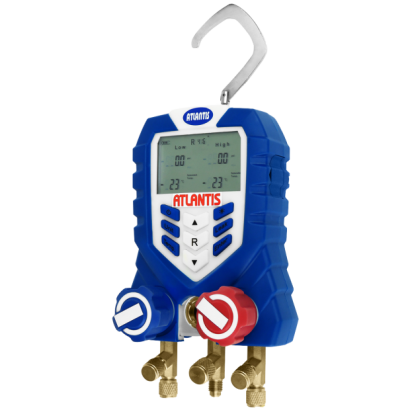

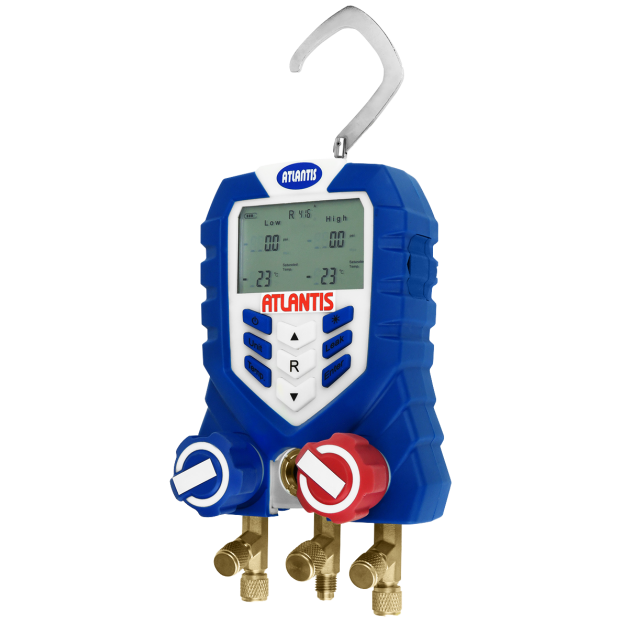

Multifunctional Digital Refrigeration Gauge Set FDPG-1
Multifunctional Digital Refrigeration Gauge Set FDPG-1
FDPG-1 Multifunctional digital refrigeration gauge can simultaneously measure the pressure of high and low sides. Connect with a K-type thermocouple to measure refrigerant temperature. FDPG-1 is suitable for non- corrosive refrigerant, liquid and alcohol pressure and temperature measurement, which has been widely applied in the assembly and maintenance operation of vacuum refrigeration system.
DETAIL
Model: FDPG-1
Introduction
FDPG-1 Multifunctional digital refrigeration gauge can simultaneously measure the pressure of high and low sides. Connect with a K-type thermocouple to measure refrigerant temperature. FDPG-1 is suitable for non-corrosive refrigerant, liquid and alcohol pressure and temperature measurement, which has been widely applied in the assembly and maintenance operation of vacuum refrigeration system.
Features
■ Applicable refrigerants 44 types, press button to switch refrigerants type
■ Maximum measurable pressure 725psi
■ The folding hook design on the back protects refrigeration gauge from impact/shock damage
■ 4-digit LCD screen display with fast refresh rate
■ Switchable pressure/temperature unit
■ Press button to open/close backlight to save power
■ Connect a K-type thermocouple to measure temperature
■ Various temperature display mode - Display saturated temp., sensor temp. or current overheat/overcool temp.
■ Run leak test to calculate the differential pressure from start to stop time
Main Specifications
▼Dimension
210 x 130 x 75mm
▼Pressure connection
1/4”SAE x3
▼Thermocouple type
PCC-SMP-K x2
▼Pressure range
0…725 psi (0~50bar)
▼Temperature range
-50 to 150℃
▼Applicable refrigerants
44 types
Please refer to refrigerants list
Not applicable to R171 (ammonia) and ammoniacontained refrigerants
▼Ambient temperature
-10 to 50℃ / -44 to 122℉
▼Storage temperature
-20 to 60℃ / -4 to 140℉
▼Ambient humidity
10~90% R.H.

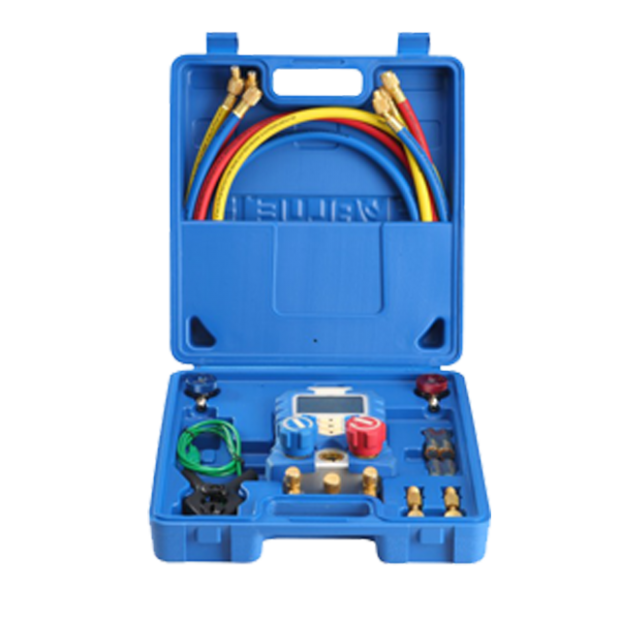

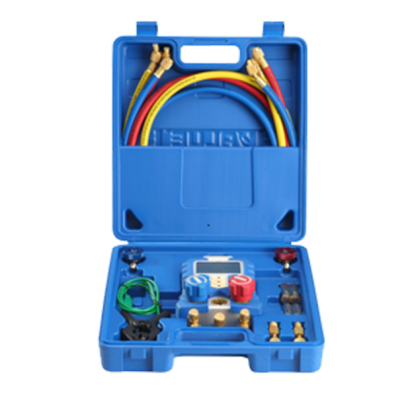

▼Accessory
K model temp. sensor
Quick connector
Refrigerant pipes x3
(Red/blue/yellow)
1.5V AA batteries x4
Adapter x2
Other Specifications
▼Housing material
ABS/PC/TPE
▼Screen display
LCD screen with backlight
Simultaneously measure the pressure and temperature of high and low sides
Screen size:68 (W) x 42 (H) mm
Switchable pressure unit: psi, bar, kPa, MPa
Switchable temperature units: ℃ / ℉
Pressure display digit: 4-digit
Temp. display digit: 3-digit
Current battery indication
▼Temperature display mode
Saturated temp / Sensor temp. / Overheat / Overcool temp.
▼Measuring elements
CFC / HFC / H2O
▼Refresh rate
1 sec/times
▼Resolution
Pressure: 1psi / 0.1bar / 10kPa / 0.01MPa
Temperature: 1℃ / 1℉
▼Accuracy (@22℃)
Pressure: 0.75% (±1 digit)
Temperature: ±2K
▼Power supply
1.5V AA batteries x4 / Mignon / LR6 dry battery / rechargeable lithium battery
▼Max. pressure resistance
1.5*F.S.
▼Weight
1kg (exclude battery)
