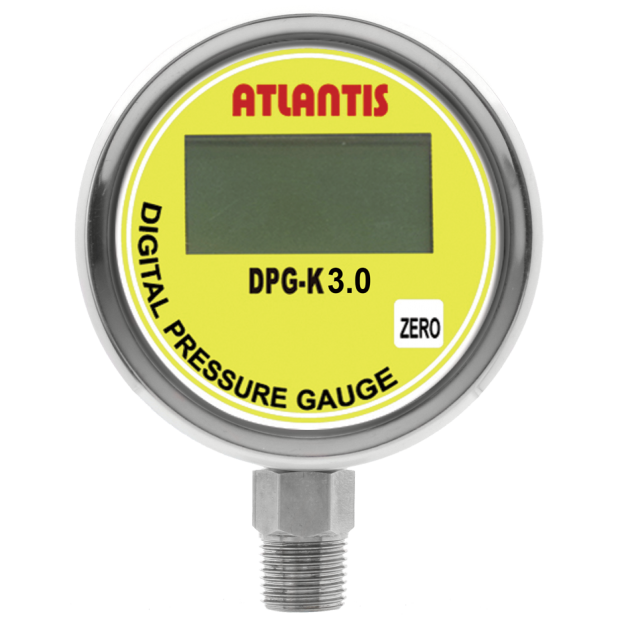

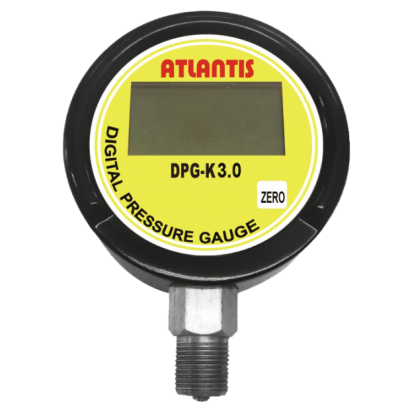

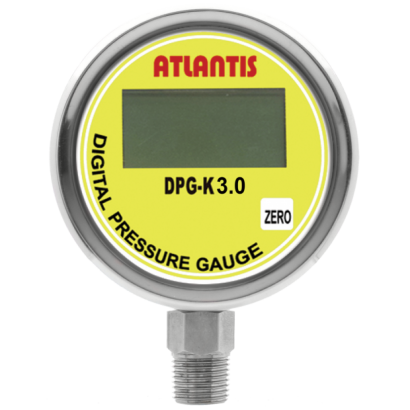

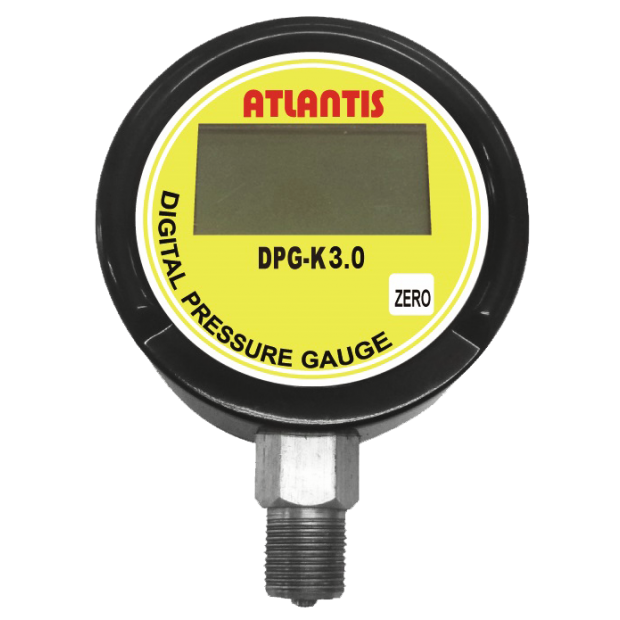

3”Digital Pressure Gauge DPG-K3.0
3”Digital Pressure Gauge DPG-K3.0
Features
■ OEM service
■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
■ Plastic / Stainless steel case available
■ Power saving mode - auto turn off backlight after 10 secs
■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
■ OEM service
■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
■ Plastic / Stainless steel case available
■ Power saving mode - auto turn off backlight after 10 secs
■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
DETAIL
Model: DPG-K3.0
Features
■ OEM service
■ 4-digit LCD screen display with blue backlight ensures clear reading in the dark place
■ Plastic / Stainless steel case available
■ Power saving mode - auto turn off backlight after 10 secs
■ Calibration mode - reset pressure reading to zero when screen display effected by ambient temperature
Main Specifications
▼Size
3”
▼Installation type
Bottom mount
▼Pressure connection
Material: stainless steel
1/4”PT
1/4”NPT
Other thread type can be customized upon request
▼Pressure range
Gauge pressure▼
0~1000 bar
Vacuum▼
-760mmHg…0
▼Applicable media
Liquid and gas that compatible with stainless steel
▼Operating temperature
-15 to 70℃
▼Media temperature
+80℃
Other Specifications
▼Case material
PVC／Stainless steel
▼Screen display
4-digit LCD display with backlight function
▼Screen size
Plastic case: 41 (W) x 16 (H) mm
Stainless steel case: 41 (W) x 16 (H) mm
▼Switchable unit
Gauge pressure: MPa, psi, kg/cm2
Vacuum: mbar; mmHg, inHg
▼Power supply
Plastic case: 1.5V battery×3
Stainless steel case: 9V lithium battery x1
▼Accuracy
±1.0% F.S.／±0.5%F.S.
▼Max. operating pressure
150% F.S.
