Digital Pressure Gauge

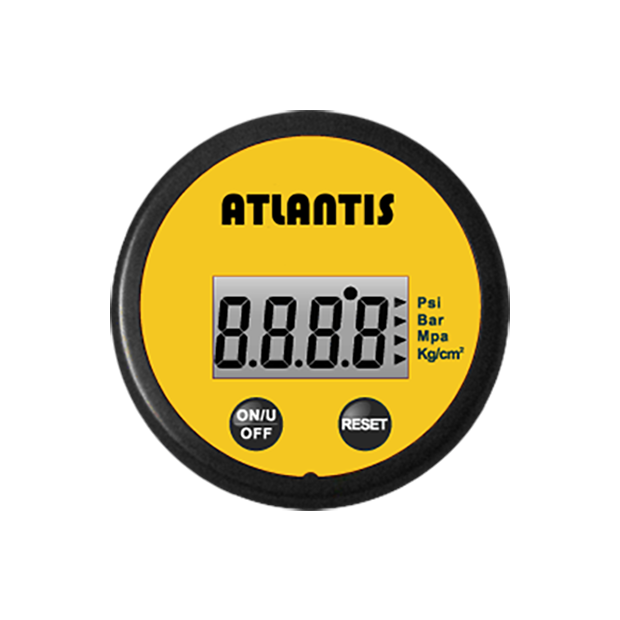

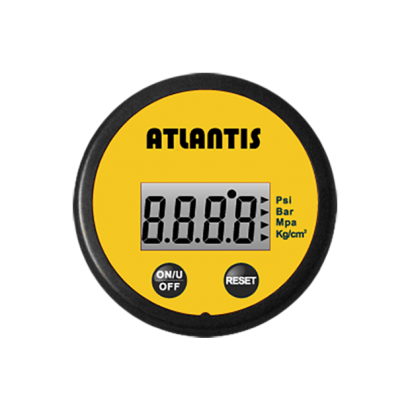

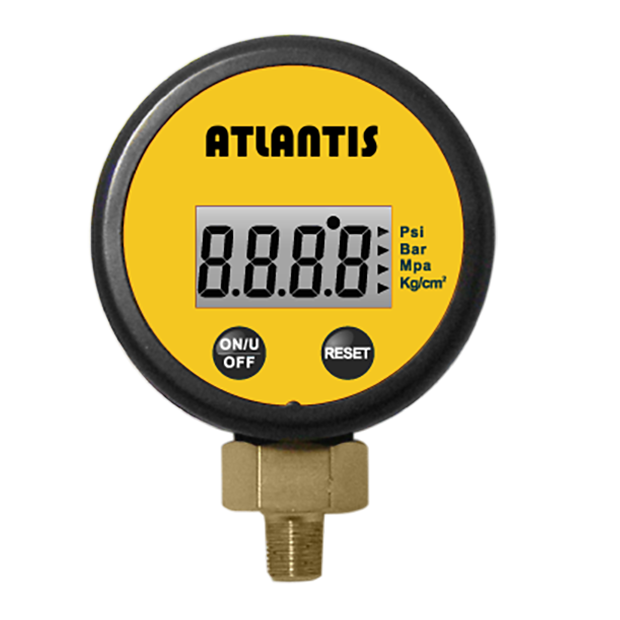

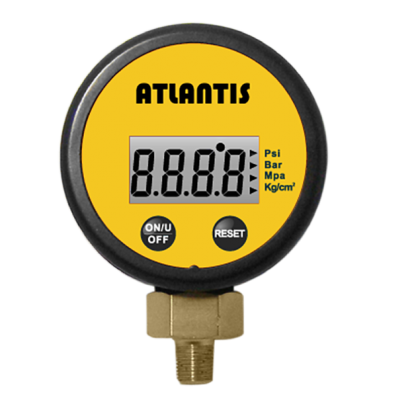

2.5”Digital Air Pressure Gauge DPG-A2.5
2.5”Digital Air Pressure Gauge DPG-A2.5
DPG-A2.5 small size digital pressure gauge is designed for air pressure measurement, suitable for general industrial application.
DETAIL
Model: DPG-A2.5
Introduction
DPG-A2.5 small size digital pressure gauge is designed for air pressure measurement, suitable for general industrial application.
Features
■ OEM service
■ Affordable price, easy to use
■ Switchable unit, zero adjustment and peak hold record function
■ LCD screen with backlight ensures clear reading in the dark place
■ Adopts temperature compensation technology, full scale accuracy±1.0%
Main Specifications
▼Size
2.5”(68mm)
▼Installation type
Bottom mount／back mount
▼Pressure connection
Material: copper alloy
Thread size: 1/8”, 1/4”
Thread type: NPT, PT
▼Pressure range
0 ~ 150 psi
▼Applicable media
Gas compatible with copper alloy
▼Ambient temperature
-10 to 60℃
▼Storage temperature
-20 to 70℃
▼Storage humidity
35 ~ 85% RH
Other Specifications
▼Case material
Plastic
▼Screen display
4-digit LCD display with backlight function
▼Screen size
33 (W) x 17 (H) mm
▼Power supply
CR123A battery (3.0 V, 1400 mAh)
3 years battery service life (backlight off mode)
▼Switchable pressure unit
psi, bar, MPa, kg/cm2
▼Resolution
0.1 psi, 0.01bar, 0.001MPa, 0.01 kg/cm2
▼Accuracy
±1.0% F.S. (@25±3℃)
▼Temperature compensation
-10 to 60℃
▼Max. pressure resistance
2*F.S.
