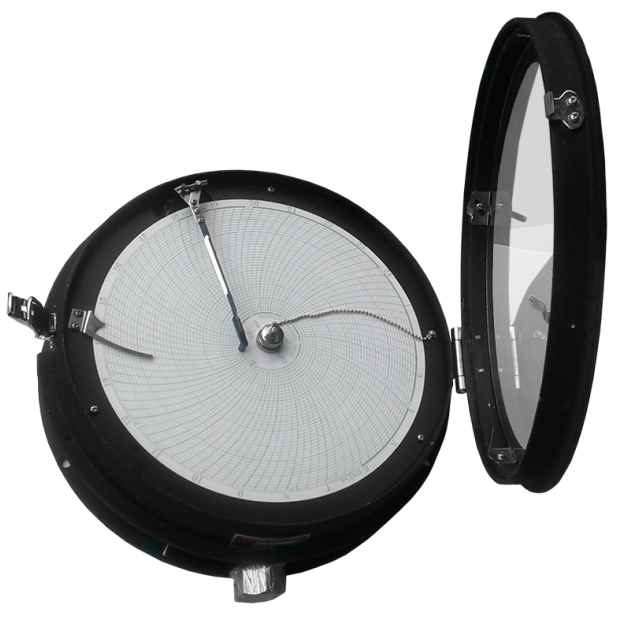

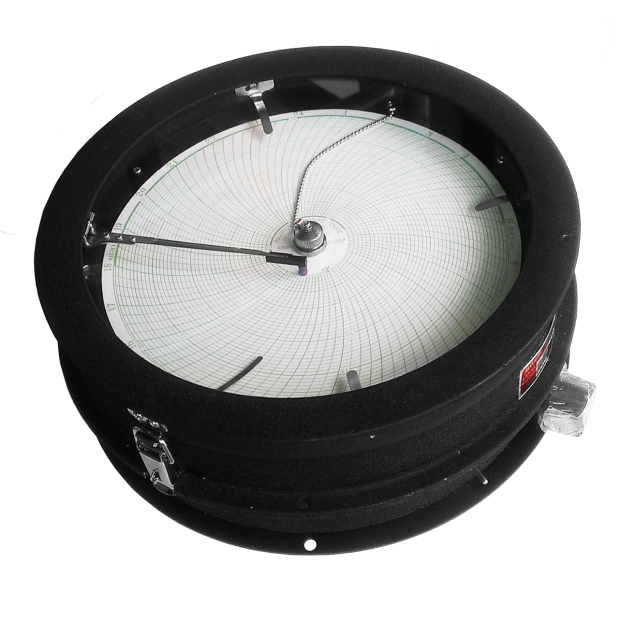

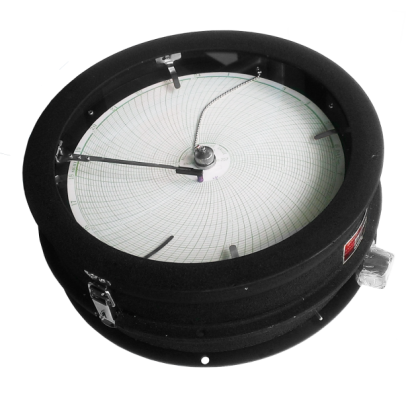

Pressure recorder PR
Pressure recorder PR
Recording principle - chart paper rotation to drive record pen recording pressure.
Single (standard) and dual (option) pens pressure record.
Single (standard) and dual (option) pens pressure record.
DETAIL
Model: PR
Introduction
Recording principle - chart paper rotation to drive record pen recording pressure. Single (standard) and dual (option) pens pressure record.
Features
■ OEM service
■ To continually track pressure change
Main Specifications
▼Size
8”, 10”,12”
▼Window
Tempered glass
With O-ring sealed
▼Pressure connection
Material: SS304 / copper alloy
With O-ring sealed
Size: 1/2”
Type: BSPT, NPT, PF
▼Stem
Material: SS304 / copper alloy
▼Pressure range
Min.: 5kg/cm2
Max.: 20kg/cm2
▼Applicable fluid
Liquid and gas that compatible with connection's material
▼Working environment
Head temperature should not over 90℃
▼Protection level
IP 54
Other Specifications
▼Ring
Aluminum alloy casting
Black enamel
▼Back housing
Aluminum alloy casting
Black enamel
▼Record paper
100 pcs
▼Recording period
12 hours/24 hours, 7 days a cycle
▼Measuring elements
Bourdon tube
Material: Copper alloy / Stainless steel
▼Capillary
SS 304
Outer diameter: 6.35mm
3 meter
▼Pressure accuracy
±1.5%F.S.
▼Operating pressure
Stabilization: 3/4* full scale
Short-time: 1* full scale
