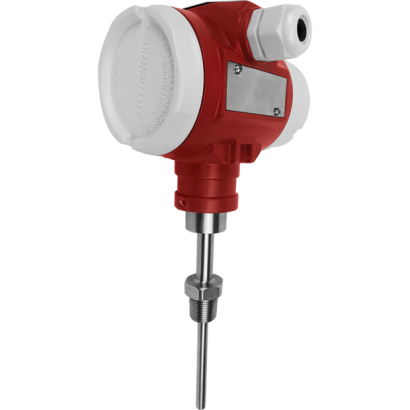

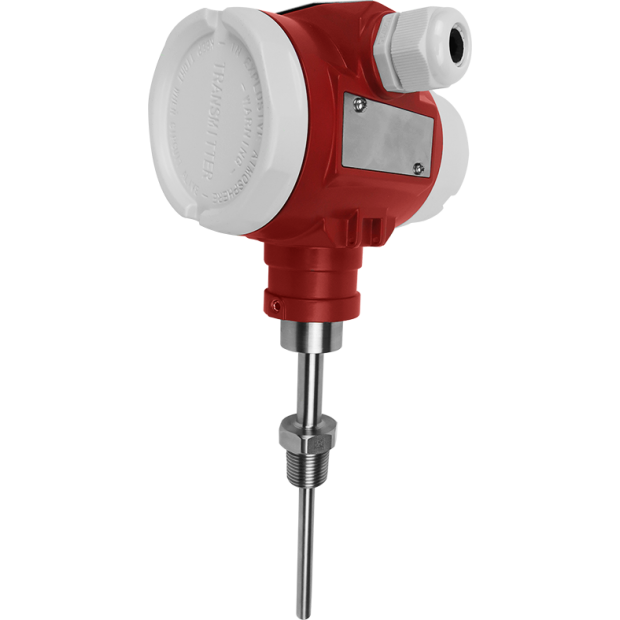

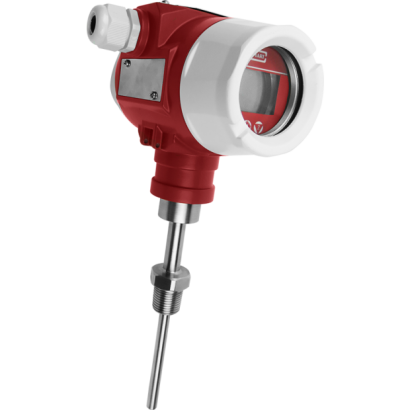

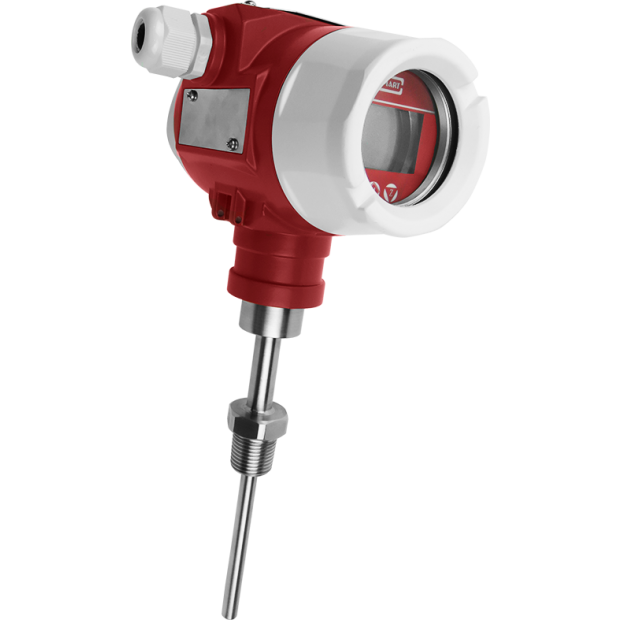

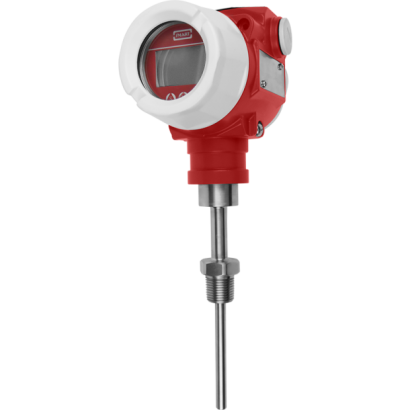

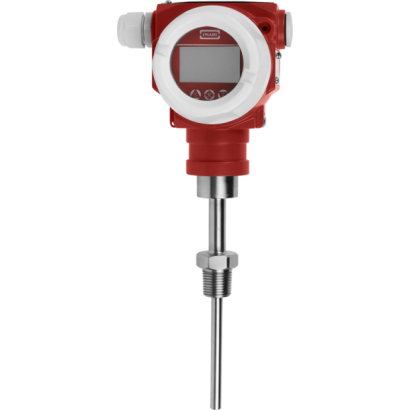

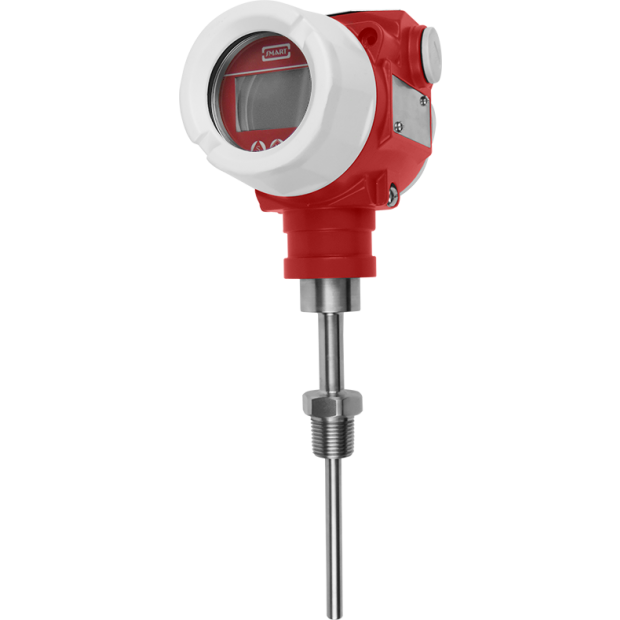

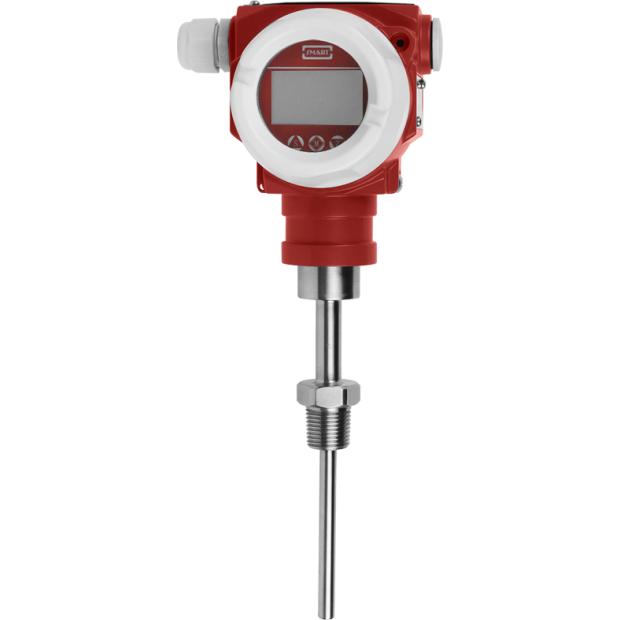

Integrated Digital Temperature Transmitter (Flange Connected Type) ITT-L200 (F)
Integrated Digital Temperature Transmitter (Flange Connected Type) ITT-L200 (F)
ITT-L200 (F) series digital temperature transmitter adopts PT100 temperature sensor, LCD display is optional. It adopts an integrated transient voltage terminal module and can be used in severe surge voltage situations. It is suitable for various industrial temperature measurement and transmission requirements.
DETAIL
Model: ITT-L200 (F)
Introduction
ITT-L200 (F) series digital temperature transmitter adopts PT100 temperature sensor, LCD display is optional. It adopts an integrated transient voltage terminal module and can be used in severe surge voltage situations. It is suitable for various industrial temperature measurement and transmission requirements.
Features
■ Flange connected type, active thread is optional
■ Customized stem length and outer diameter, and install a thermoweii is available
■ Wide temp. measurement range: -50 to 400℃
■ Output signal: 4-20mA
■ Temperature measuring elements adopts Pt100, accuracy 0.5%F.S.
■ User friendly interface
■ Protection level: IP67
■ RS485 output is available
Main Specifications
▼Mounting type
Fixed thread／active thread connection mounting
▼Connection
HG/T20592-2009DN50PN10
HG/T20592-2009DN25PN10
Other specifications are available made-to-order
Material: SS304
▼Electrical connector
Aluminum alloy junction box
Outlet female thread: M20*1.5
Applicable wire diameter: Φ6-8mm
▼Temperature range
-50 to 400℃
Min. temp. scale 100℃
▼Stem
Outer diameter▼
Φ6 / 8 / 10 / 12 / 16mm
Material: Same as material of connection
Length: Customized, 50…3000mm
Install a thermowell (Option)
▼Applicable media
Liquid and gas that compatible with material of connection
▼Ambient temperature
Standard: -40 to 85℃
With LCD display: -20 to 70℃
▼Storage temperature
Standard: -40 to 100℃
With LCD display: -40 to 85℃
▼Ambient humidity
0…95% R.H.
▼Protection level
IP67
Other Specifications
▼Case
Stainless steel

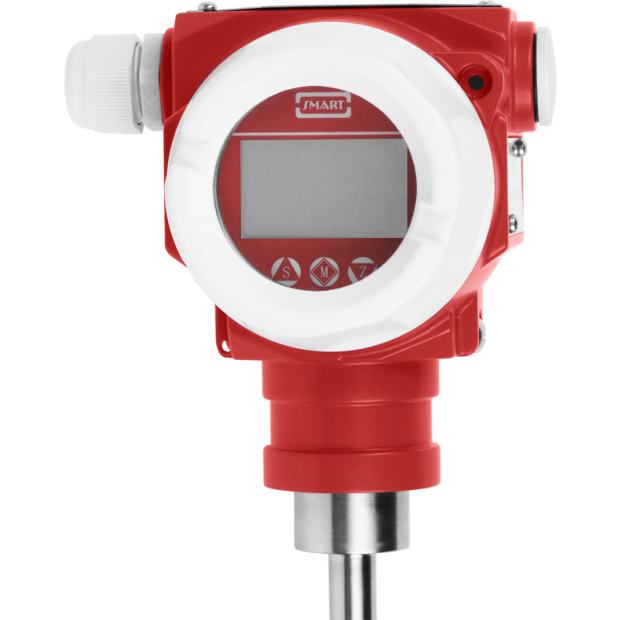

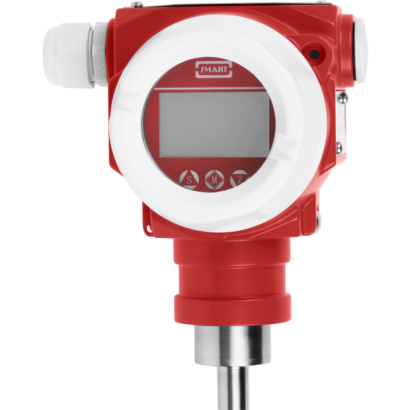

▼Screen display (Option)
5-digit LCD display with backlight
39 x 23 mm
▼Wiring protection
M20*1.5 waterproof connector
▼Extension tube
Outer diameter: Φ12m
Material: SS316
Length: 50 / 100 / 150 / 200mm
▼Output signal
4-20mA
▼Measuring elements
Pt100
▼Accuracy
±0.2/0.5% F.S.
▼Temp. response time
≤10s@ water flow 0.4m/s
▼Power supply
10…30VDC
▼Insulation resistance
≥20MΩ, 100VDC
▼Power consumption
≤500Mw@24VDC, 20.8Ma
▼Weight
About 1.29kg
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
RS485 output
Connection material: SS316
Flameproof, 1/2”NPT (F) one side, stainless steel blind plug
Flameproof, M20*1.5 (F) one side, stainless steel blind plug another side
Degreasing treatment
Wetted part electrolytic polishing
