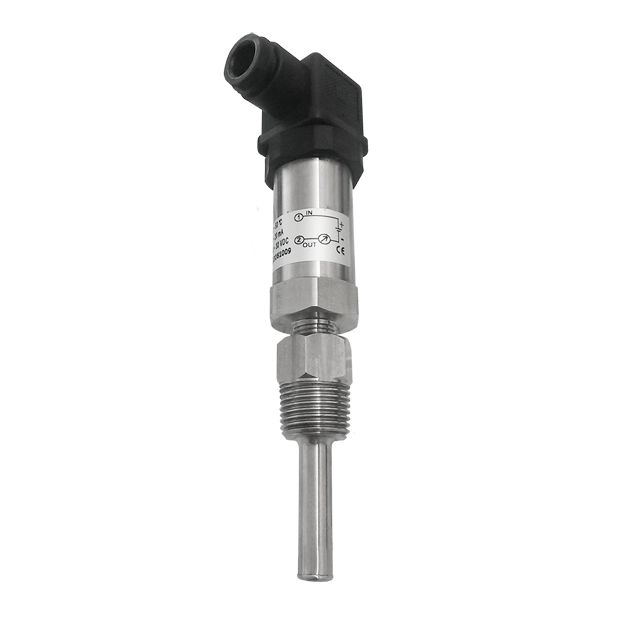

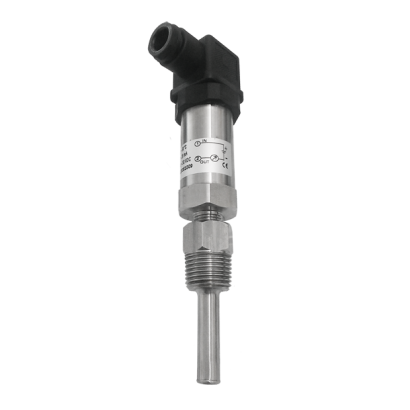

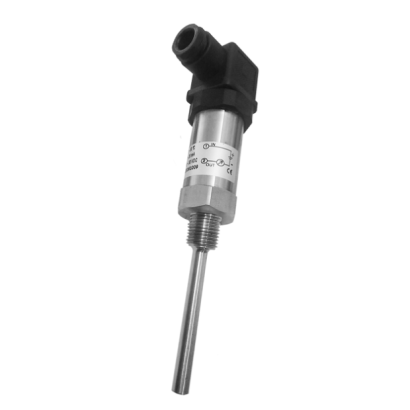

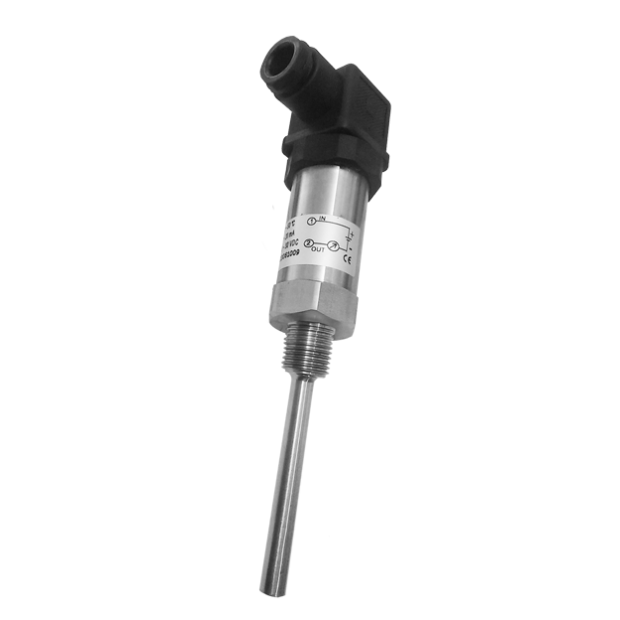

Temperature Transmitter for Duct Type (2-wire analog output／ digital output) ATT-P4/D4 series

Temperature Transmitter for Duct Type (2-wire analog output／digital output)
Model: ATT-P4/D4 series

Introduction
ATT-P4/D4 series temperature transmitter adopts stainless steel casing and German imported measuring elements, which can monitor temperature signal transmission and convert the measuring element signal into standard current output 4-20mA or digital signal. It is suitable for measuring gas, liquid, steam pressure and all kinds of corrosive media. It is widely used in food, medicine, petroleum, chemical industry, metallurgy, electric power, machinery, etc.

Features
■ OEM service
■ Analog 4~20mA output／digital output are optional
■ Analog 4~20mA output can be non-polar connection, no positive and negative, and has limited current protection
■ Case material: SS304
■ Integrated anti-condensation and heat dissipation structure design
■ High repeatability and good anti-interference ability
■ Small size, easy installation, accurate measurement and long-term stability
■ Stem thermowell and cooling fin are optional

Main Specifications
▼Type
ATT-P4－2-wire analog output
ATT-D4－digital output
▼Connection
1/4”PT male thread
1/2”PT male thread
Option: without thread, swivel nut, special thread are available made-to-order
▼Electrical connector
ATT-P4－Hirschmann DIN43650
ATT-D4－M12 Quick coupling
▼Stem
Length:
50 / 100 / 150 / 200 mm
Other length are available made-to-order
Thermowell can be customized according to the stem type
▼Temperature range
-50…200℃
▼Applicable fluid
Liquid and gas that compatible with stainless steel
▼Operating ambient temp.
-20 to 80℃
▼Storage temperature
-40 to 85℃
▼Protection level
IP65

Other Specifications
▼Case
SS304
▼Power supply
10~30VDC
▼Output signal
ATT-P4－2-wire 4~20mA output
ATT-D4－Digital output
▼Measuring elements
ATT-P4－Pt100
ATT-D4－Pt1000 Class A
▼Zero adjustment range
±10%
▼Full adjustment range
ATT-P4－±10%
ATT-D4－Computer correction
▼Accuracy
±0.5% F.S.
▼Load impedance
≤ (Supply voltage-8V) / 0.02AΩ
▼Power stability
<±0.025% F.S. /V
▼Temperature drift
<±0.015% F.S. /℃
▼Calibration temp.
20~28℃
▼Response time
≤ 250ms
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Install a cooling fin at the case
Swivel nut connection
30 / 80 / 130 / 180mm 1/2”PT thermowell
Install a display head (Please refer to ATT-P4-D catalogue)
