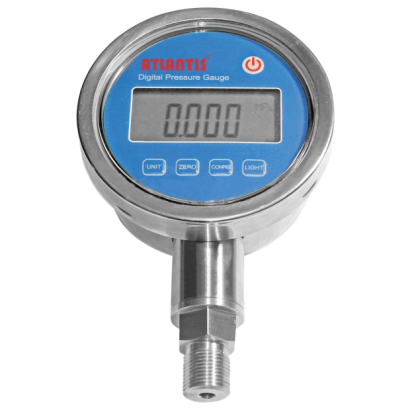

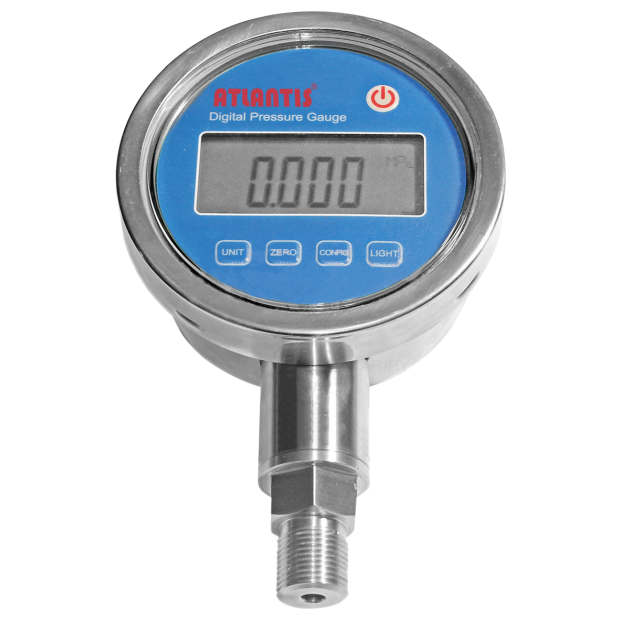

Economic Type Digital Pressure Gauge AT805A
Economic Type Digital Pressure Gauge AT805A
AT805A digital precision pressure gauge is suitable in field and laboratory pressure measurement and calibration. The economic type is an ideal choice to replace mechanical pressure gauge or transmitter.
DETAIL
Model: AT805A
Introduction
AT805A digital precision pressure gauge is suitable in field and laboratory pressure measurement and calibration. The economic type is an ideal choice to replace mechanical pressure gauge or transmitter.
Features
■ OEM service
■ Affordable price
■ Auto reset to zero function
■ Low power consumption
■ Auto power off and non-sleep mode
Main Specifications
▼Dimension
110 x 50 mm
Overall height: 167 mm
▼Pressure connection
Material: SS304
M20 x 1.5
Other specification available upon request
▼Pressure range
Min.: -1 bar
Max.: 2500 bar
Please refer to pressure range selection table
▼Pressure type
Gauge pressure / Absolute pressure / Sealed pressure
▼Applicable fluid
Liquid and gas that compatible with SS304 / Pure, non-corrosive gas
▼Ambient temperature
-20°C to 70°C
▼Storage temperature
-40°C to 85°C
▼Ambient humidity
< 95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Spare parts
3.6V lithium battery / Thread adaptors
Other Specifications
▼Ring
SS304
▼Back housing
Stainless steel
▼Display
4-digit with backlight
▼Refresh rate
4 secs/1 times~10 secs/1 times (Adjustable)
▼Pressure unit
mmH2O, mmHg, inH2O, Pa, kPa, MPa, psi, bar, mbar
▼Measuring elements
High-tech silicon pressure sensor chips SS 316L diaphragm
▼Accuracy
±0.5%/±0.2%/±0.1%F.S.
▼Compensated temperature
0°C to 50°C
▼Operating pressure
Please refer to pressure range selection table
▼Power supply
3.6V lithium battery
▼Battery life
Continuous working time up to 3 years
▼Weight
500g
