Digital Micro Differential Pressure Transmitter DMPT-301-5CD
Digital Micro Differential Pressure Transmitter DMPT-301-5CD
DMPT-301-5CD digital micro pressure transmitter is mainly used in air micro pressure measurement, wind velocity/pressure measurement & control, leakage detection for HVAC, cleanroom, boiler or power plant field application.
DETAIL
Model: DMPT-301-5CD
Introduction
DMPT-301-5CD digital micro pressure transmitter is mainly used in air micro pressure measurement, wind velocity/pressure measurement & control, leakage detection for HVAC, cleanroom, boiler or power plant field application.
Features
■ OEM service
■ Specially designed for air micro pressure (positive/negative/differential) measurement
■ Humid／turbid air media measurable
■ High accuracy & stability
■ Adjustable span (ratio 10:1) with auto linear compensation
■ Output current value & direction calibration
■ Self-correction & auto alarm function when detecting error
■ Adjustable damping - Less affected by dynamic pressure
■ Switchable pressure unit
Main Specifications

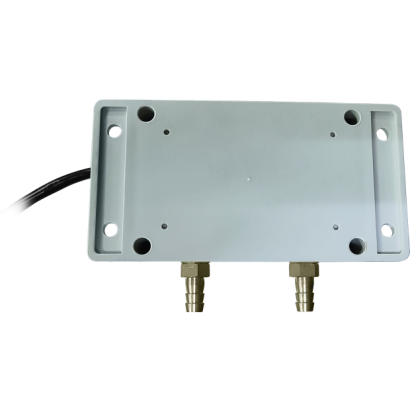

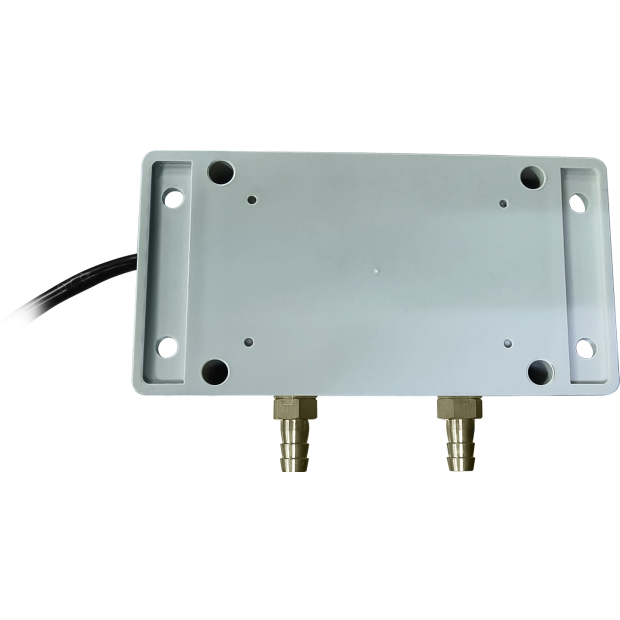

▼Installation type
Bottom mount
▼Pressure connection
Ø8 barb thread／M8x1 thread
Material:
Brass (standard)／Aluminum alloy (option)
▼Pressure range
0…60Pa~200kPa
For details please refer to differential pressure range table
▼Electrical connector
Hirschmann connector
Waterproof connector (option)
▼Applicable fluid
Non-corrosive gas
▼Ambient temperature
-20…70℃
▼Ambient humidity
≤85% R.H.
Other Specifications
▼Case
ABS

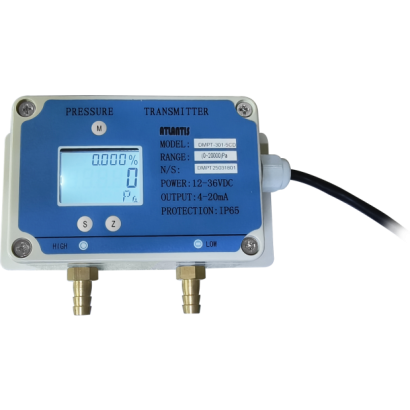

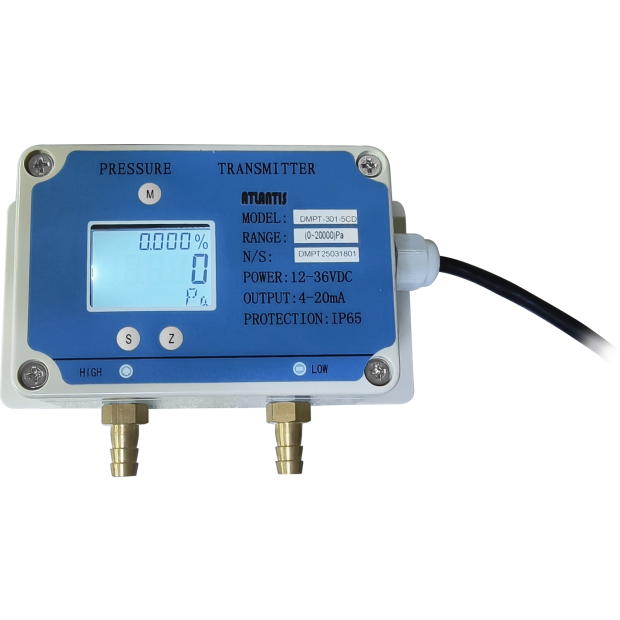

▼Screen display
5-digit LCD display with white backlight
▼Power supply
12…45VDC
▼Output signal
4~20mA
▼Response time
0.1~1.6sec
(Vary from measurement range)
▼Switchable unit
Psi, Pa. kPa, MPa, mbar, bar, mmHg, torr, atm, %, mm, cm, m, inH2O, ftH2O, inHg, g, kg/cm2, mA. mmH2O
▼Accuracy
0.2% (@>35kPa)
0.5% (@1~35kPa)
1.0% (@<1kPa)
▼Repeatability & Hysteresis
0.05%
▼Stability
±0.1%F.S.／year
▼Compensated temperature
0~50℃
▼Temperature drift
±0.02%F.S./℃
▼Overpressure
3x F.S. (0…160kPa)
500 kPa (160…200kPa)
▼Other requests (Option)
Third party notarized documents
Inspection report
