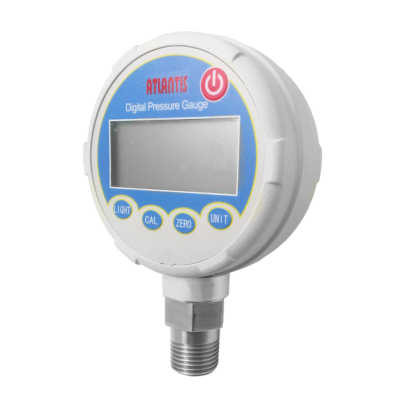

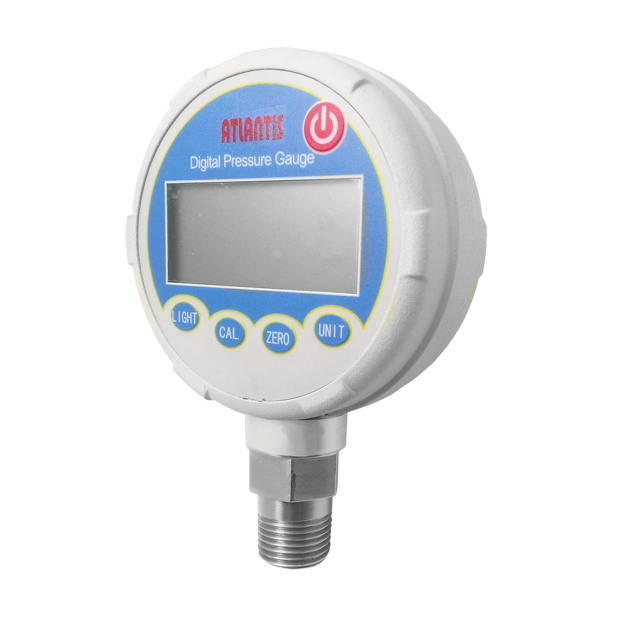

Digital Precision Pressure Gauge DPG-H3.5
Digital Precision Pressure Gauge DPG-H3.5
Features
■ OEM service
■ High accuracy - up to ±0.05% F.S.
■ 5-digit LCD display with backlight
■ OEM service
■ High accuracy - up to ±0.05% F.S.
■ 5-digit LCD display with backlight
DETAIL
Model: DPG-H3.5
Features
■ OEM service
■ High accuracy - up to ±0.05% F.S.
■ 5-digit LCD display with backlight
▼Size
3.5”(92 mm)
▼Pressure connection
Material: SS316
Laser welding
Size: 1/4”, 1/2”
Type: PT, NPT, PF
▼Pressure range
Min.: 0.4 bar
Max.: 2500 bar
▼Applicable fluid
Liquid and gas that compatible with SS 316 / Pure, non-corrosive gas
▼Ambient temperature
-40°C to +60°C
▼Fluid temperature
-10 to +50°C
▼Ambient humidity
95% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 20℃
max. error: ±0.1% F.S (@0~50℃)
Other Specifications
▼Ring
Aluminum alloy
▼Case
ABS
▼Screen display
5-digit LCD with backlight
▼Refresh rate
3 times/sec
▼Pressure unit
kPa, MPa, Pa, psi, kgf/cm2, bar, mbar, mmH2O, mmHg
▼Resolution
0.0001
▼Measuring elements
High-tech silicon chip SS 316L diaphragm
▼Communication port (option)
RS232
▼Accuracy
±0.5%F.S. / ±0.2% F.S. / ±0.1% F.S. / ±0.05% F.S.
▼Operating pressure
Overpressure: 1.2* full scale
Burst pressure: 1.3* full scale
▼Compensated temperature
-10°C to +50°C
▼Power supply
Lithium battery: 3.6V
Input: DC 8.5V (1.5A)
▼Battery life
80 hours (rechargeable lithium battery)
▼Weight
750g
