Digital Pressure Gauge

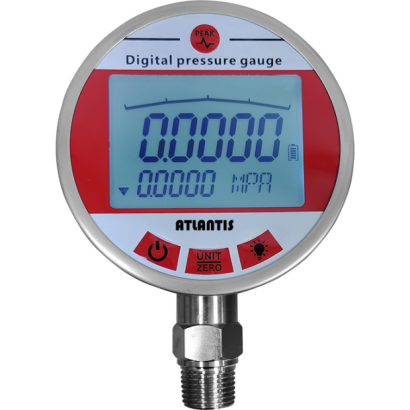

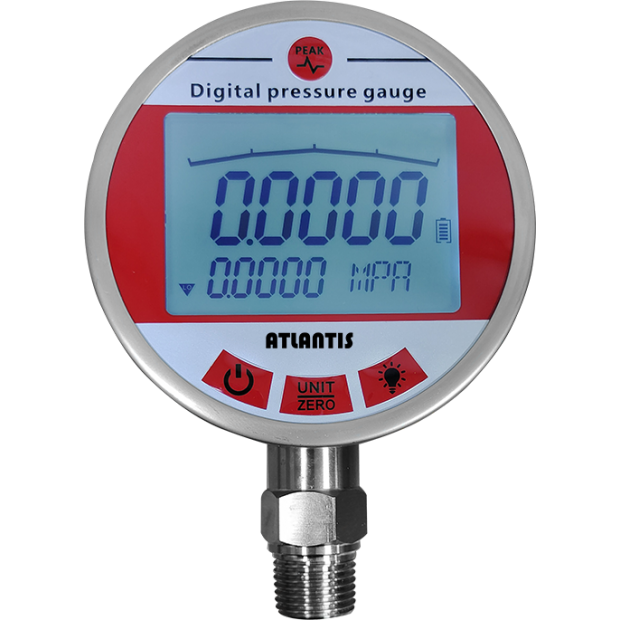

Digital Pressure Gauge DPG-KX4.0
Digital Pressure Gauge DPG-KX4.0
DPG-KX4.0 consists of SS304 case, pressure transmitter and signal processing circuit. It features high accuracy, corrosion resistance, impact resistance, anti-vibration, minimum temperature drift and steady performance. It adopts microprocessor to ensure continuous long working hours.
DETAIL
Model: DPG-KX4.0
Introduction
DPG-KX4.0 consists of SS304 case, pressure transmitter and signal processing circuit. It features high accuracy, corrosion resistance, impact resistance, anti-vibration, minimum temperature drift and steady performance. It adopts microprocessor to ensure continuous long working hours.
Features
■ OEM service
■ SS304 case & connection
■ 5-digit LCD display, high resolution
■ Superior Accuracy ±0.2%F.S.
■ Various pressure units available
Main Specifications
▼Size
2.5”, 4”
▼Pressure connection
Material: SS304
1/4”PT
M20*1.5 (optional)
1/2”PT (optional)
1/2”NPT (optional)
▼Pressure range
-0.1~100 MPa
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-10°C to +60°C
▼Fluid temperature
-20°C to +80°C
▼Ambient humidity
80% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temperature: 22℃
max. error: ±0.5% F.S (@0~50℃)
Other Specifications
▼Ring
SS 304
▼Case
SS304
▼Screen display
5-digit LCD display
▼Screen size
65 x 37mm
▼Pressure unit
Kgf/cm2, MPa, psi, bar, kPa, mmH2O ,inWC
▼Accuracy
±0.4%F.S.
±0.2%F.S. (optional)
▼Temperature compensation
0°C to 50°C
▼Power supply
1.5V battery*3
▼Battery life
About one year (depends on the frequency of use)
▼Weight
480g
