Digital Temperature Switch DTS-STS

Digital Temperature Switch
Model: DTS-STS

Introduction

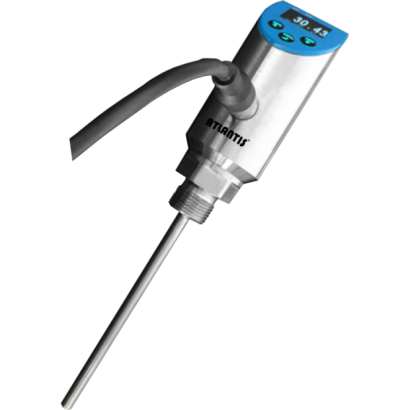

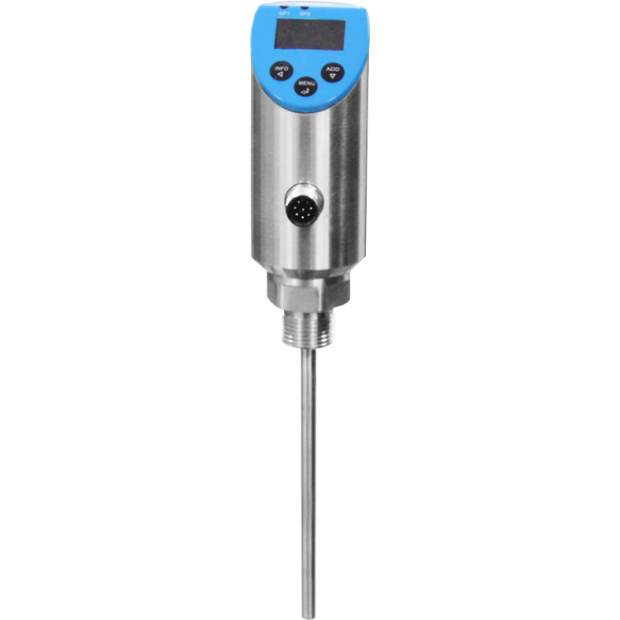

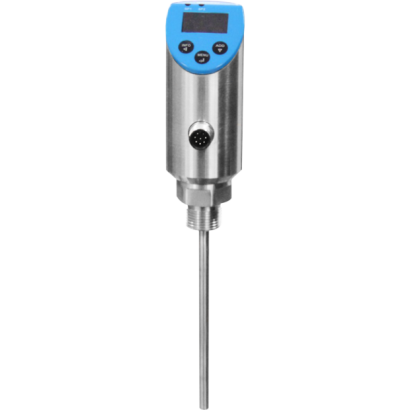

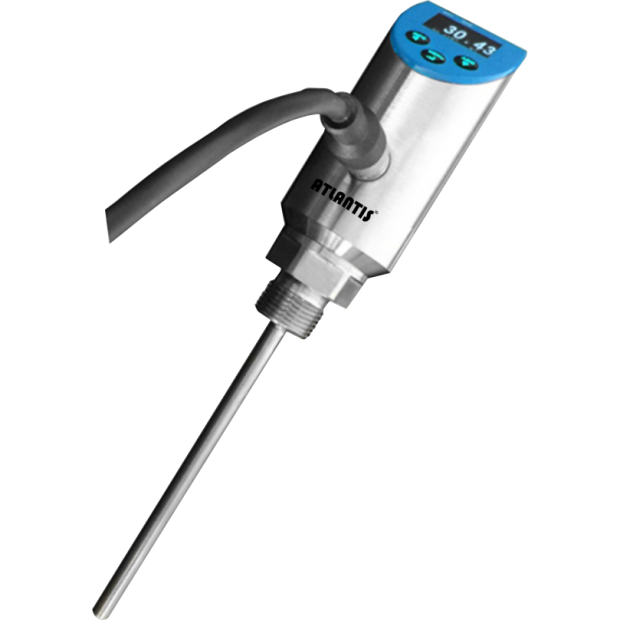

DTS-STS digital temperature switch equips 2-way switch alarm output, one analog signal output and OLED display screen, integrating temperature switch, transmitter and field display functions in one.
DTS-STS is suitable for industrial fluid temperature measurement, control and monitor such as cleaning liquid, coolant, hydraulic oil and lubricants.

Features
■ Integrating temperature switch, transmitter and display functions in one design
■ 5-digit OLED high brightness screen display
■ 3 large touch buttons with backlight design, user-friendly parameter setting
■ 2-way PNP switch output
■ Adjustable actuation point, switchable switch mode (normally open／normally closed)
■ Various analog outputs available, user-adjustable zero & span value
■ RS485 output (option)
■ Switchable display mode: Pipeline temp. display , max. / min. temp. display, ambient temp. display
■ 330°Rotatable meter, 180°flip screen
■ Temperature measuring range: -50~260℃
■ Protection level IP65

Main Specifications
▼Process connection
Material: stainless steel
Welded structure
M20x1.5 male thread
M27x2 male thread
G1/2”male thread
Other thread type available upon request
▼Electrical connector
M12x1 5-pin
M12x1 8-pin (for RS485)
▼Screen display
5-digit OLED high brightness display
▼Alarm output
2-way PNP
Two sets red LED warning light
▼Analog output
Current output▼
4~20mA／0~20mA
Voltage output▼
0~5VDC／0~10VDC
▼Digital output (option)
RS485
▼Temp. measurement range
-50 to 260℃
▼Stem
Outer diameter: Ø6mm
Length: 50mm (standard)
Other stem length available upon request
▼Applicable media
Liquid and gas that compatible with stainless steel
▼Operating temperature (body)
-30 to 80℃
▼Storage temperature
-40 to 80℃
▼Protection level
IP65

Other Specifications
▼Case
SS304
▼Power supply
12-30VDC
▼Temperature unit (Fixed)
℃／℉／K
▼Screen resolution
±0.01℃
▼Switch type
N.O.／N.C. (Custom setting available)
▼Contact rating
Max. 1.0A
▼Switch operating mode
Hysteresis mode／ Window comparator mode
▼Response time
<10ms
▼Switch delay setting
0.00s~1000.0s
▼Measuring elements
Pt1000
▼Refresh rate
≤ 5secs
▼Accuracy
≤±0.5℃
▼Temperature drift
±0.15%/10k
▼Stability
±0.3% F.S./year
▼Vibration resistance
≤10g/10Hz…500Hz
▼Impact resistance
≤50g/11ms
