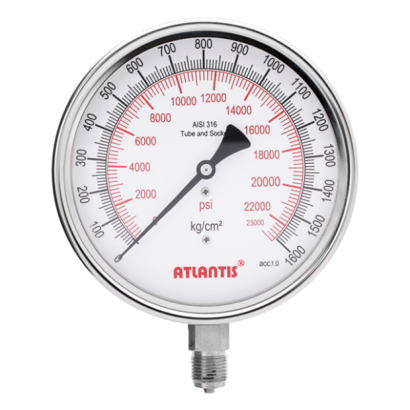

All Stainless Steel High Pressure Gauge HPPG-SUS
All Stainless Steel High Pressure Gauge HPPG-SUS
Features
■ OEM service
■ Specially design for high pressure measurement Maximum pressure measurement: 4000bar
■ Welded connection, maximum fluid temperature can up to 200℃
■ All stainless steel design
■ German Bourdon tube BK (bachmaier-klemmer) is available (optional)
■ OEM service
■ Specially design for high pressure measurement Maximum pressure measurement: 4000bar
■ Welded connection, maximum fluid temperature can up to 200℃
■ All stainless steel design
■ German Bourdon tube BK (bachmaier-klemmer) is available (optional)
DETAIL
Model: HPPG-SUS
Features
■ OEM service
■ Specially design for high pressure measurement Maximum pressure measurement: 4000bar
■ Welded connection, maximum fluid temperature can up to 200℃
■ All stainless steel design
■ German Bourdon tube BK (bachmaier-klemmer) is available (optional)
Main Specifications
▼Size
4”, 6”
▼Installation type
Bottom mount (A) / Bottom mount with flange (B) / Back mount (eccentric thread) (ADE) / Back mount with flange (eccentric thread) (BDE) / Back mount with U-Clamp (Eccentric thread) (UDE) /
Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window
Safety glass
O-ring sealed
▼Pressure connection
Material: SS316
Welded connection
Size: 1/4”, 3/8”, 1/2”
Type: BSPT, NPT, PF
Other thread specifications please specify before order
▼Pressure range
0…400 to 4000 bar
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Ambient temperature
Dry & Silicone oil filled:
-40°C to +60°C
Glycerin filled:
-20°C to +60°C
▼Fluid temperature
Dry: +120°C
Glycerin filled: +100°C
Silicone oil filled: +200°C
▼Temperature drift
Every ±12 °C
max. error: ±0.3% F.S
▼Protection level
IP54 (standard) / IP65 (option)
Other Specifications
▼Ring
Stainless steel
▼Ring mount
Inside bayonet
▼Case
SS 304
▼Pointer
Aluminum with black enamel
▼Dial face
Blue and black scale
Pressure unit, scale & color can be customized upon request
▼Measuring elements
Bourdon tube
Material: SS316
▼Additional protection (option)
Blow-out back
▼Movement
Stainless steel
▼Accuracy
1%
▼Operating pressure
Stabilization: 3/4* full scale
Fluctuation: 2/3* full scale
Impulse: 1* full scale
