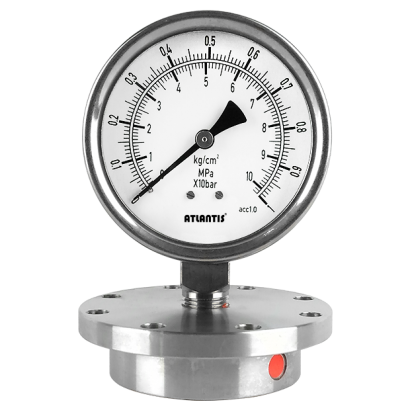

Diaphragm Seal Sanitary Pressure Gauge (For Food and Beverage Industry) DS600
Diaphragm Seal Sanitary Pressure Gauge (For Food and Beverage Industry) DS600
DS600 adopts welding flange with DRD connection, suitable for sterilization in place (SIP) and cleaning in place (CIP) applications, as well as in food, beverage, and pharmaceutical industry applications, such as dairy products, breweries, soft drinks, etc.
DETAIL
Model: DS600
Introduction
DS600 adopts welding flange with DRD connection, suitable for sterilization in place (SIP) and cleaning in place (CIP) applications, as well as in food, beverage, and pharmaceutical industry applications, such as dairy products, breweries, soft drinks, etc.
Features
■ OEM service
■ Pressure range: 0⋯1bar to 0⋯40bar
■ Suitable for food, beverage, and pharmaceutical industry
■ Suitable for sterilization in place (SIP) and cleaning in place (CIP) applications
■ Adopts welding flange with DRD connection
■ For specific applications, there are liquidfilling for optional
Main Specifications
▼Pressure range
Min.: 0…1bar
Max.: 0…40bar
▼Process connection
Welding flange with DRD connection
▼Thread specifications
G1/2”, G1/4”, 1/2”NPT, 1/4”NPT
Other thread specifications are available made-to-order
▼O-ring
Material: EPDM / PTFE
▼Wetted parts
Diaphragm
Material: SS316L
Special material is available made-to-order
▼Liquid-filling
Gauge body:
Glycerin oil (Std.) / Silicon ail (Option)
Diaphragm:
Glycerin oil (Std.) / Plant oil (Option)
▼Assembly parts
Fixed flange
Material: 316L
▼Assembly
Gauges directly welded (Std.)
Transmitter with adapter screwed (Option)
Assembly via cooling tower (Option)
Assembly via capillary (Option)
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
