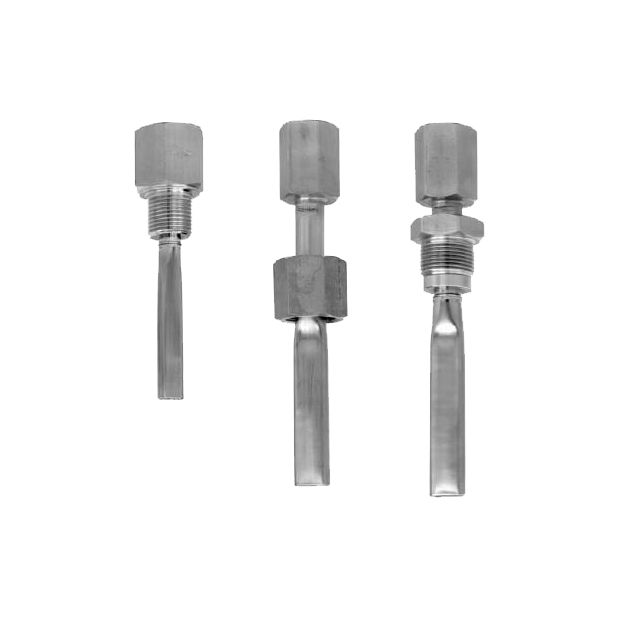

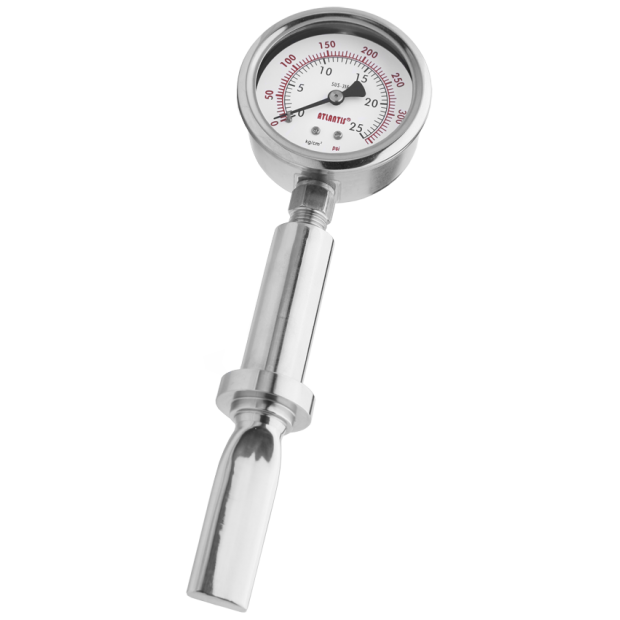

Diaphragm for Homogenizer - Probe Seal Type
Model: DS360 series


Introduction
DS360  particularly used in chemical #fiber factory for flowing, heterogeneous media and high pressure. Also, diaphragm of DS360 is design for Homogenizer.


Features
■ Compact size
■ Oval capsule sensor with internal support for stabilization
■ Immersed directly in the medium
■ Filled with vegetable oil, complying with the food/sanitary industry standard


SPECIFICATIONS
▼Instruments:
SUS-A series pressure gauges
▼Process connection (Thread):
Type P-Male pipe thread 1/2”,3/4” G (BSP),M20×1.5 male
Type U-Female union nut1/2”,3/4”,1” G (BSP),
Type R-Male running nut 1/2”,3/4” G (BSP)
▼Diaphragm Housing Material:
Standard-SUS316
Option-SUS304;SUS316L
▼Diaphragm:
Material-
SUS316L medical grade
Thread-BSPT, NPT, PF
Dimension-
Standard 3" (75 x 13 x 6 mm)
Option 4" (100 x 18 x 7 mm)
▼Temperature:
medium +100℃;ambient 10 to 60℃
▼Filling Fluid:
Glycerin, food compatible
▼Pressure ranges:
0 / 250 to 0 / 600 kg/cm2 (bar)
▼Protection:
IP68
▼Accessory assembly (option):
1. Capillary for remote measurement (specify length of capillary when ordering)
2. Cooling tower (when fluid temperature>100℃)
