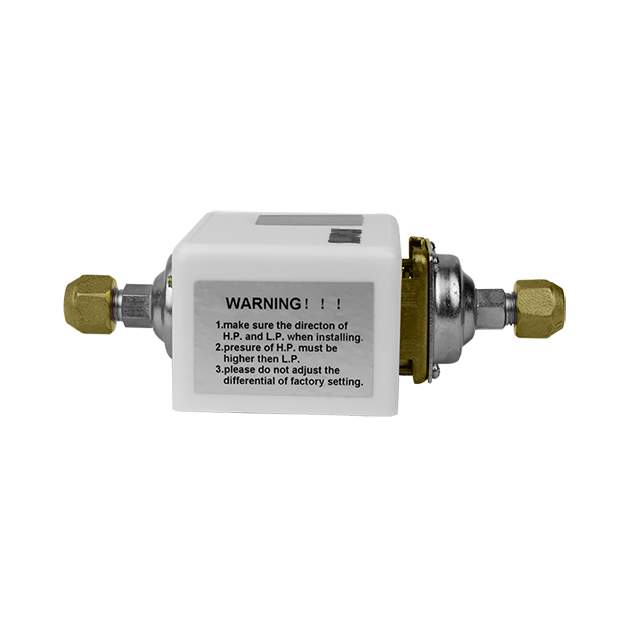

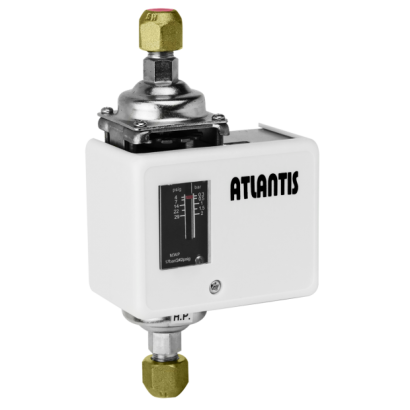

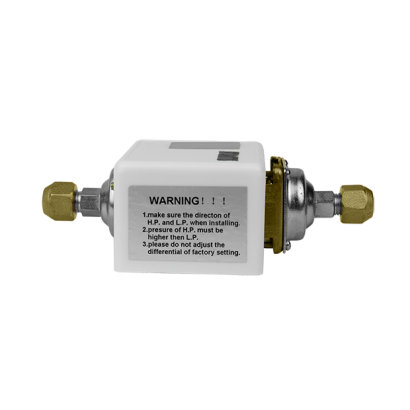

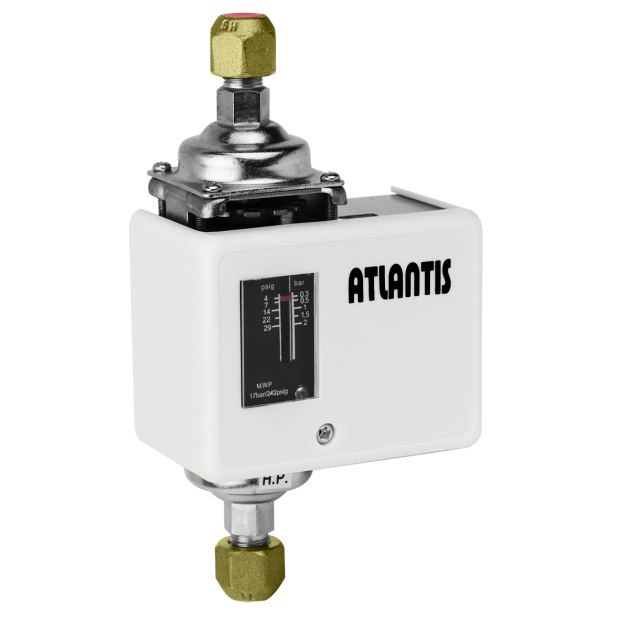

Simple Differential Pressure Switch ATHLD
Simple Differential Pressure Switch ATHLD
Features
■ OEM service
■ Economic differential pressure switch with various applications
■ Standard support rack (L-shape) included
■ Differential pressure switch
■ OEM service
■ Economic differential pressure switch with various applications
■ Standard support rack (L-shape) included
■ Differential pressure switch
DETAIL
Model: ATHLD
Features
■ OEM service
■ Economic differential pressure switch with various applications
■ Standard support rack (L-shape) included
■ Differential pressure switch
Main Specifications
▼Pressure connection
Material: chromed brass
No O-ring sealed
Size: 1/4”,7/16”
Type: SAE, UNF
▼Pressure range
0 to 6 bar
(Please refer to catalog P1 pressure setting range)
▼Applicable fluid
Liquid and gas that compatible with copper alloy
▼Ambient temperature
-20°C to +70°C
▼Operation temperature
-10°C to +80°C
▼Fluid temperature
-10°C to +80°C
▼Temperature error
Every ±12 °C
max. error: °±0.5% F.S
▼Protection level
IP54
Other Specifications
▼Ring
ABS (white)
Screw fixed
▼Bottom housing
Chromed brass
▼Measuring elements
Micro switch
Material: copper alloy
▼Wiring
Screw clamp terminal blocks
▼Movement
Copper alloy
▼Operating pressure
Max.: 30 bar
▼Switch type
SPDT
▼Operating voltage
240V
▼Operating current
15A

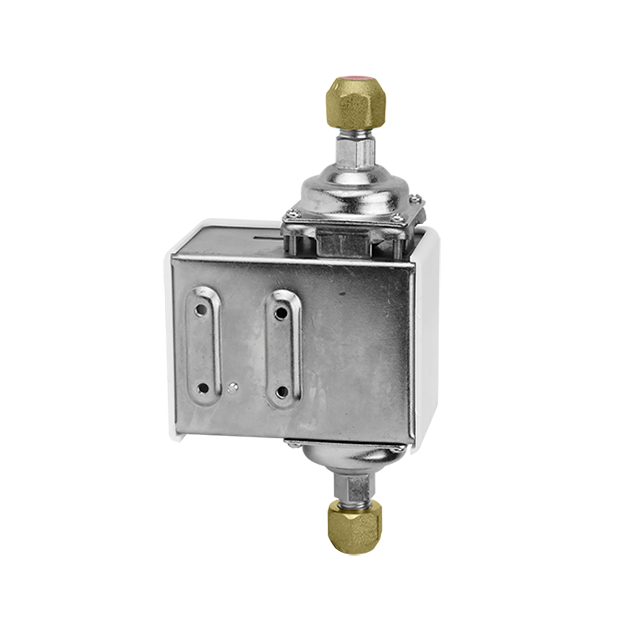

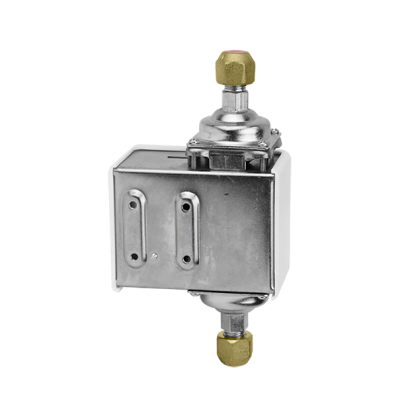

▼Support rack
Material: galvanized steel
L-shape
▼Capillary
Material: copper alloy
Outer diameter 3 mm
