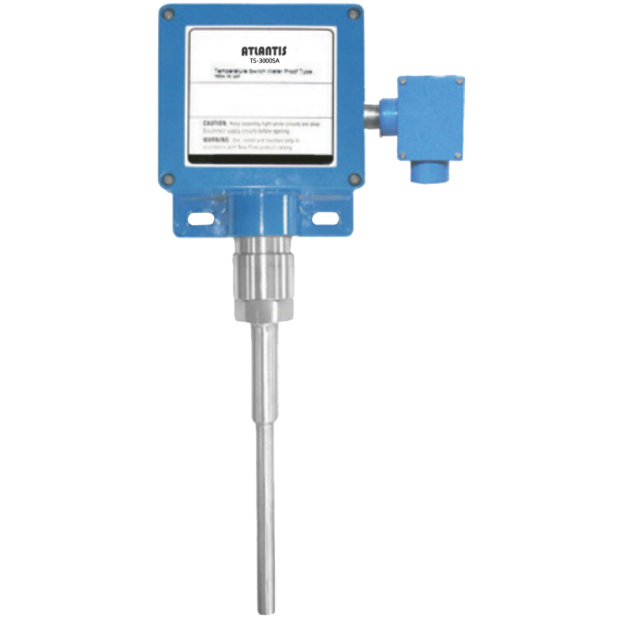

Bottom Connected Temperature Switch (Water Proof Type) TS-3000SA
Bottom Connected Temperature Switch (Water Proof Type) TS-3000SA
TS-3000SA bottom connected temperature switch adopts SPDT micro switch, features max. current 5A and NEMA 4 / NEMA 4X waterproof protection, which is suitable for temp. control in high current environment.
DETAIL
Model: TS-3000SA
Introduction
TS-3000SA bottom connected temperature switch adopts SPDT micro switch, features max. current 5A and NEMA 4 / NEMA 4X waterproof protection, which is suitable for temp. control in high current environment.
Features
■ OEM service
■ Adopts SPDT micro switch, max. current 5A
■ Contact number: SPDTx1 / SPDTx2
■ Wide temperature range: -70~400℃ (Liquid filled type) / -200~650℃ (Gas filled type)
■ Protection level: NEMA 4 / NEMA 4X / IP66
Main Specifications
▼Type
Liquid filled / Gas filled
▼Process connection
Material: SS316
1/2”or 3/4”NPT male thread
Other thread spec. are available upon request
▼Conduit connection
Material: SS316
1/2”or 3/4”NPT female thread
Other thread spec. are available upon request
▼Temperature range
-70~400℃ (Liquid filled type)
-200~650℃ (Gas filled type)
For details please refer to the tables of temperature range & min. stem length
▼Ambient temperature
-20~60℃
▼Applicable fluid
Liquid and gas that compatible with material of connection
▼Protection level
NEMA 4 / NEMA 4X / IP66
Other Specifications
▼Case material
Die casting aluminum alloy
▼Stem diameter
Φ6 / Φ8 / Φ10 / Φ12
▼Switch type
SPDT micro switch
Current: Max. 5A
▼Operating voltage
250VAC / 28VDC
▼Contact rating
5A, 250VAC / 5A, 28VDC / 3A, 28VDC
▼Contact number
SPDTx1 / SPDTx2
▼Contact material
Pure silver 999.9
▼Wetted parts material
SS316
▼Switch current
5A (Ohm load)
3A (Inductive load)
▼Switch error
±1.6~3%F.S.
▼Other requests (Option)
Third party notarized documents
Inspection report
