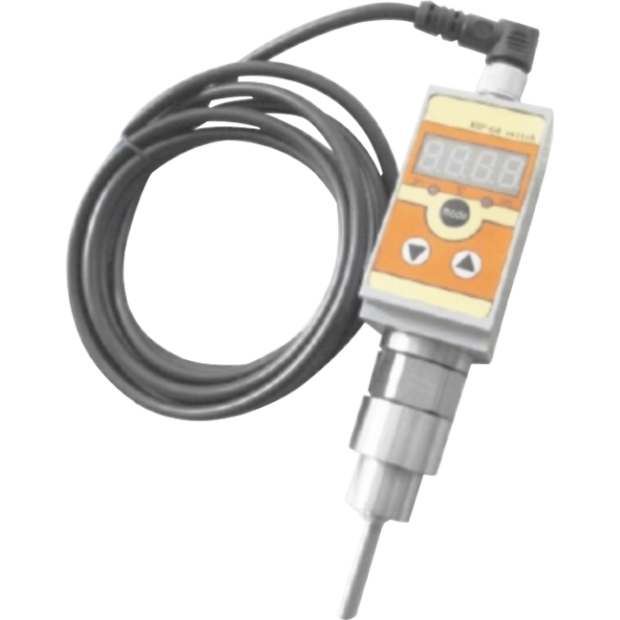

Digital Temperature Switch DTS-4ED(0.5)
Digital Temperature Switch DTS-4ED(0.5)
DTS-4ED(0.5) digital temperature switch is equipped with two sets of switch output and LED screen display, which integrates temperature measurement, display, and control. DTS-4ED(0.5) adopts high precision sensor. After the output signal is processed by an amplifier, it is sent to the high precision analog-digital converter, which can be converted into the digital signal suitable for the microprocessor.
The temperature of the control system is measured and controlled by the digital signal, which is suitable for hydraulic, petroleum, chemical, mechanical and other industrial environments.
The temperature of the control system is measured and controlled by the digital signal, which is suitable for hydraulic, petroleum, chemical, mechanical and other industrial environments.
DETAIL
Model: DTS-4ED(0.5)
Introduction
DTS-4ED(0.5) digital temperature switch is equipped with two sets of switch output and LED screen display, which integrates temperature measurement, display, and control. DTS-4ED(0.5) adopts high precision sensor. After the output signal is processed by an amplifier, it is sent to the high precision analog-digital converter, which can be converted into the digital signal suitable for the microprocessor. The temperature of the control system is measured and controlled by the digital signal, which is suitable for hydraulic, petroleum, chemical, mechanical and other industrial environments.
Features
■ 4-digit LED number display
■ Customized range of temperature -55 to 850℃
■ PNP / NPN switching output and 4-20ma analog signal output are available to be customized
■ Setting switch NC / NO parameters and glow reminder of node
■ With hysteresis switching and output function
■ Stem length is available made-to-order
Main Specifications
▼Connection
Material: Stainless steel
G1/2”
M20*1.5
Other thread specifications are available made-to-order
▼Electrical contact
M12 4-pin／5-pin aviation plug
▼Alarm output
PNPx2／NPNx2
▼Analog signal output
4-20mA
▼Stem
Material: Stainless
Standard: 100mm
Stem length is available madeto-order
▼Applicable media
Liquid that compatible with material of stem
▼Temp. measurement range
-55~850℃
▼Ambient temperature
-20~80℃
Other Specifications
▼Screen display
4-digit 0.36”LED display
Display range▼
-1999~9999
▼Switch response time
3 sec.
▼Power supply
24VDC
▼Accuracy
±0.5% F.S. (Control accuracy)
±0.1% F.S. (Display accuracy)
▼Stability
≤0.2%/year
▼Max. power consumption
<1W
▼Contact rating
1.2A (<24V)
▼Switch service life
>1 million times
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
4-20 mA analog output
(Only for M12 5-pin and aviation plug)
