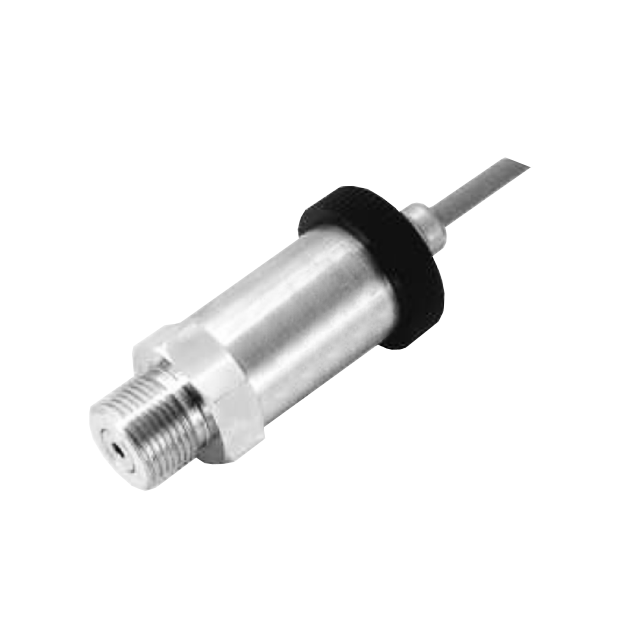

Pressure Transmitter (General Type) PT-VP

Pressure Transmitter (General Type)

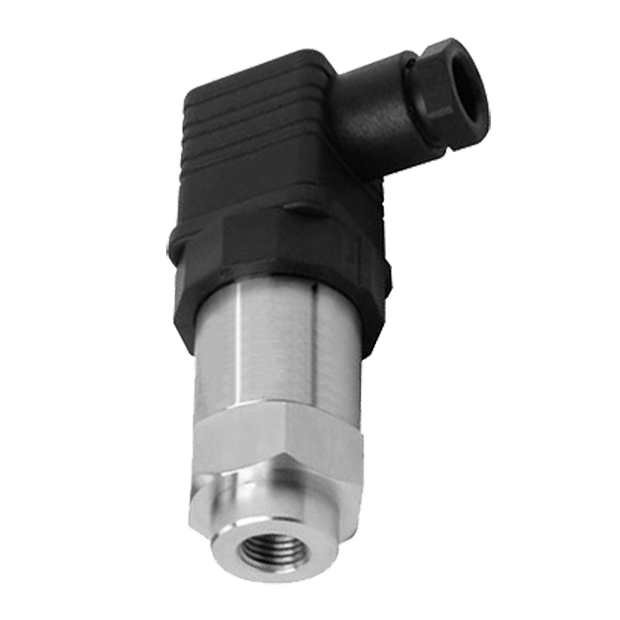

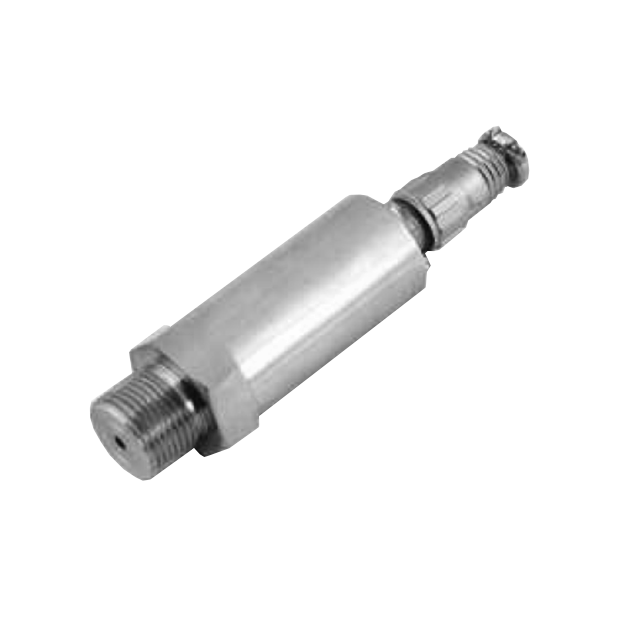

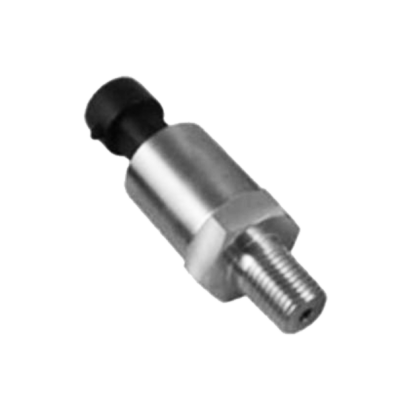

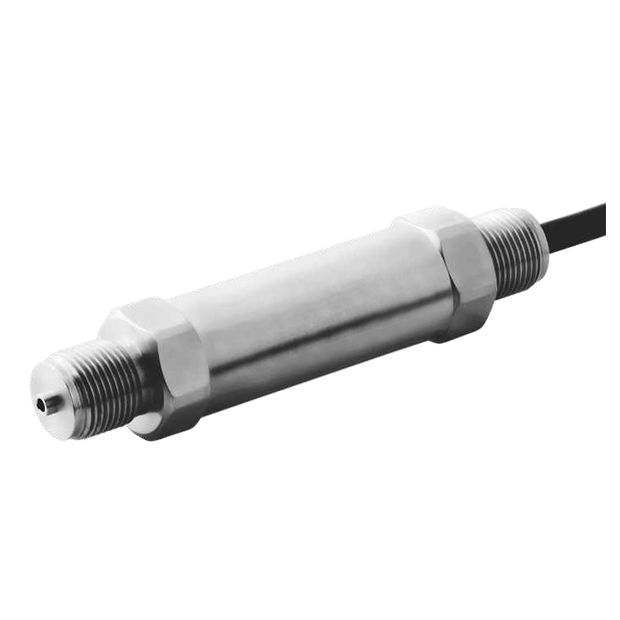

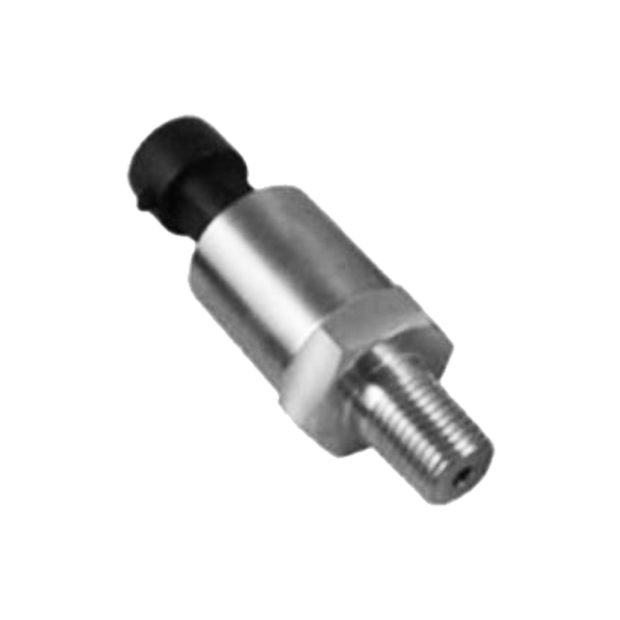

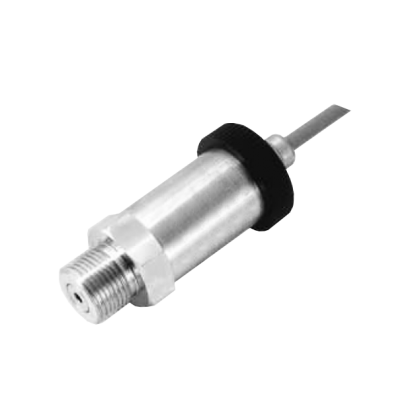

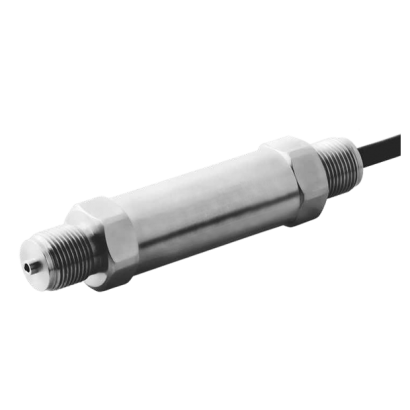

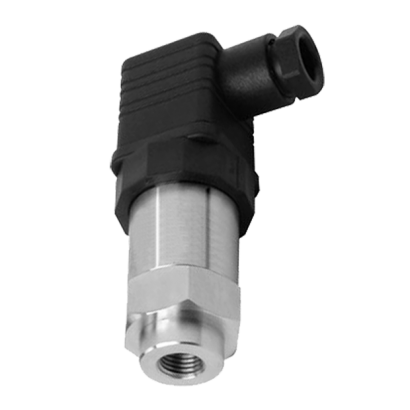

Model: PT-VP

Introduction
PT-VP Pressure Transmitter adopts diffusion silicon chip as pressure sensor. The in-built process circuit transform mV signal to standard voltage and current output, which is suitable for using with computer, control equipment and display unit.

Features
■ OEM service
■ All stainless steel integrated design with easy installation features, suitable for long term use in hazardous environment
■ Various electrical connectors and thread types for selection
■ Wide measurement range: -100kPa⋯0~35kPa⋯100MPa
■ Anti-vibration, anti-impact, and anti-corrosive
■ High interference with long term stability
■ Zero and span field calibration

Main Specifications
▼Pressure connection
Material: SS304
M20 x 1.5, G1/2”, M14x1.5, G1/4”(M), G1/4”(F), 1/2”NPT, 1/4”NPT, 1/4”PT
▼Electrical connector
Hirschmann connector /
Hirschmann with cable outlet /
Cable outlet / Packard /
BP3 aluminum case /
Aviation plug
▼Sealing O-ring
NBR
▼Pressure range
-100kPa…0~10kPa…100MPa
▼Pressure type
Gauge pressure / Sealed pressure / Absolute pressure / Compound pressure
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-20 to 85℃
▼Storage temperature
-40 to 125℃
▼Vibration resistance test
20g (20-5000Hz)
▼Impact resistance test
100g (11ms)
▼Protection level
IP 54 (Hirschmann connector)
IP 65 (Packard, aluminum case)
IP 67 (Aviation plug, cable outlet)
▼Explosion-proof class (option)
Exia II CT6

Other Specifications
▼Case
Stainless steel
▼Power supply
24VDC / 12VDC
▼Output signal
4~20mA
1~5V
0~5V
0~10V
0.5~4.5V
▼Measuring elements
Diffusion silicone chip
Transducer
Material: SS316L
▼Zero & span drift
±1.5% F.S. max (@-10~70℃)
▼Accuracy
0.5% F.S. (standard) /
0.3% F.S. (option) /
0.1% F.S (option)
▼Stability
±0.2% F.S. /year
▼Response time
≤1ms (pressure increase to 90%F.S.)
▼Insulation resistance
100MΩ, 250VDC
▼Temperature compensation
-10 to 70℃ / -20 to 85℃ (option)
▼Overpressure
1.5*F.S.
▼EMC surge
(IEC61000-4-5) 2KV
▼EMC discharge
(IEC61000-4-2)
Contact discharge 8KV
Air discharge 15KV
