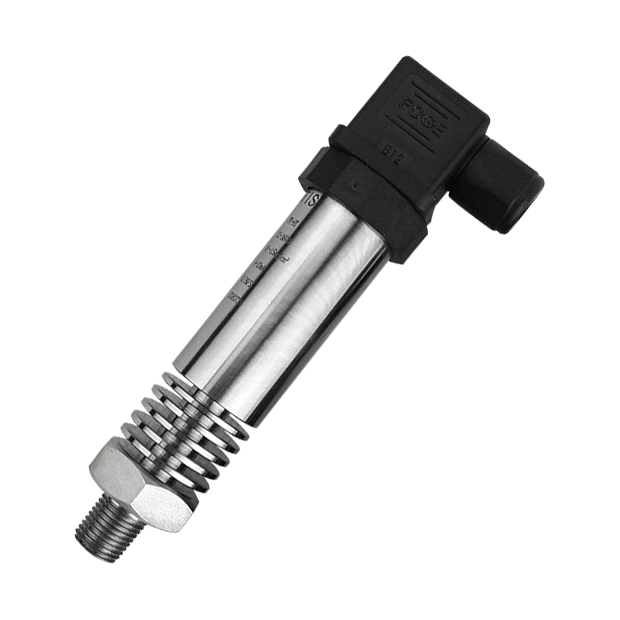

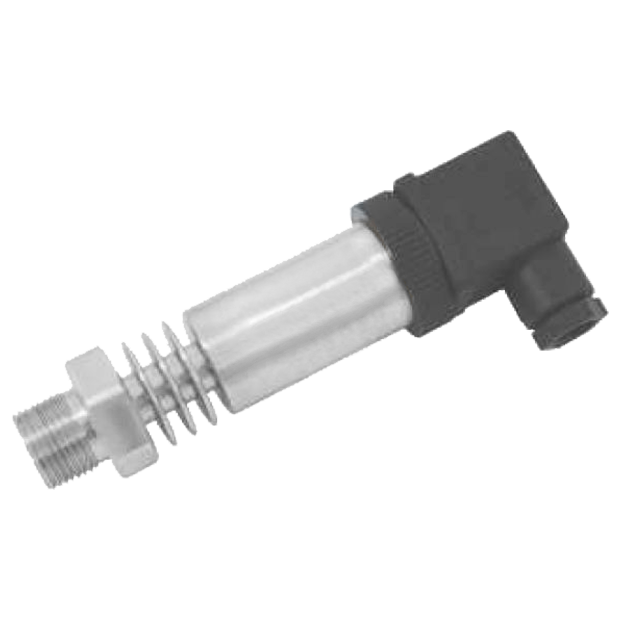

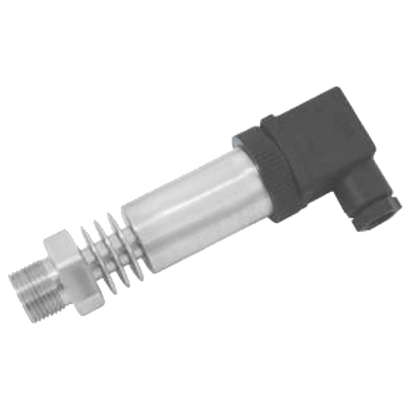

Pressure Transmitter for High Temperature PT-HT
Pressure Transmitter for High Temperature PT-HT
PT-HT pressure transmitter is especially design for high temperature media measurement. High temperature resistance sensor and cooling fin are adopted to ensure high temperature easurement with stable performance.
DETAIL
Model: PT-HT
Introduction
PT-HT pressure transmitter is especially design for high temperature media measurement. High temperature resistance sensor and cooling fin are adopted to ensure high temperature measurement with stable performance.
Features
■ OEM service
■ High temperature resistance sensor
■ Applicable medium temperature range is wide
■ Strong anti-interference, good long-term stability
■ Direct contact measurement of high temperature medium, increase the frequency of pressure influence
■ Anti-vibration, anti-shock, anti-corrosion design
■ SS316L isolation diaphragm structure
Main specifications
▼Pressure connection
1/4"PT
Material: SS304
Other thread or material please specify
▼Electrical connector

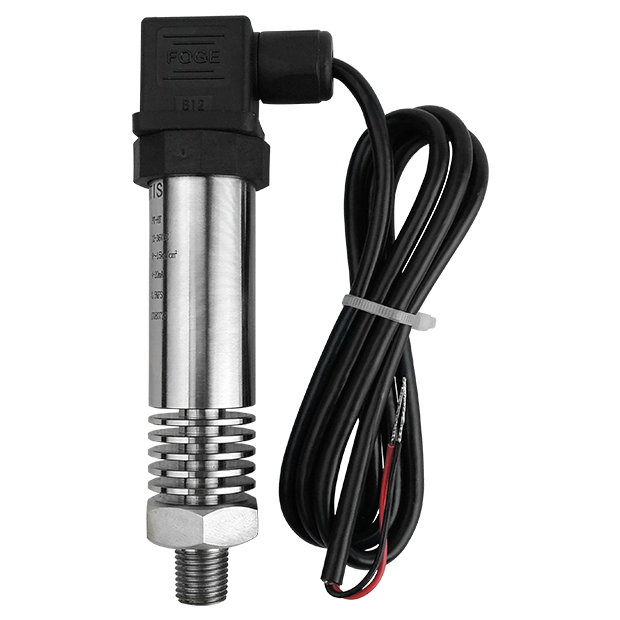

Hirschmann connector

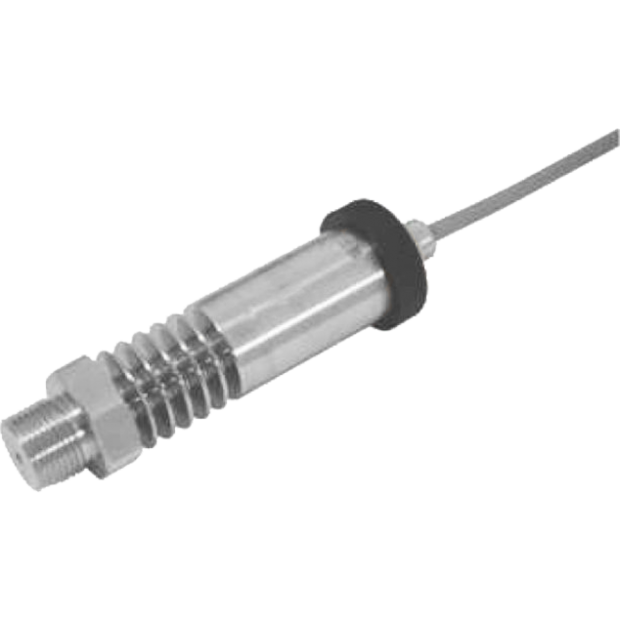

Cable outlet
▼Pressure range
-100 kPa…0~35 kPa…100 MPa
▼Pressure type
Gauge pressure / Sealed gauge pressure / Absolute pressure
▼Applicable fluid
Gas and liquid that compatible with SS316L
▼Operating temperature
-20 to 85℃
▼Media temperature
-30℃ to 105℃ / 0℃ to 350℃
▼Anti-vibration performance
200g (11ms)
▼Protection level
IP 65
▼Explosion-proof class
Exia II CT6 (4~20mA )
Other Specifications
▼Housing
Stainless steel
▼Power supply
12～30VDC / 5VDC
▼Output signal
4~20mA / 1~5V / 0~5V / 0.5~4.5V / 0~10V / 1~10V
▼Measuring elements
High temperature resistance sensor
Material: SS316L
▼Zero & span temp. drift
±1.5% F.S. (@-20~85℃)
▼Accuracy
±2.0％F.S.<-5~5kPa>，±0.5％F.S.<Other ranges >
▼Hysteresis & Repeatability
0.1% F.S.
▼Stability
±0.2% F.S. / year
▼Response time
≤1ms (increase to 90%F.S.)
▼Insulation resistance
≥100MΩ / 250VDC
▼Overpressure
1.5*F.S.
▼Service life
≥10*106
▼Heat sin
3 pieces / 5 pieces / 7 pieces
▼Weight
220g~360g
