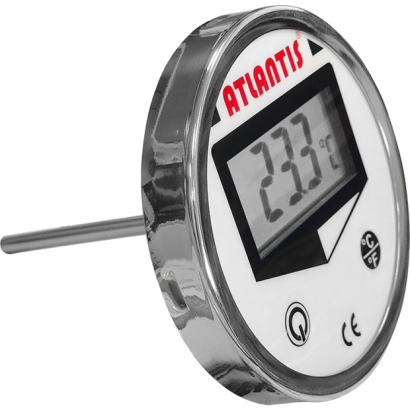

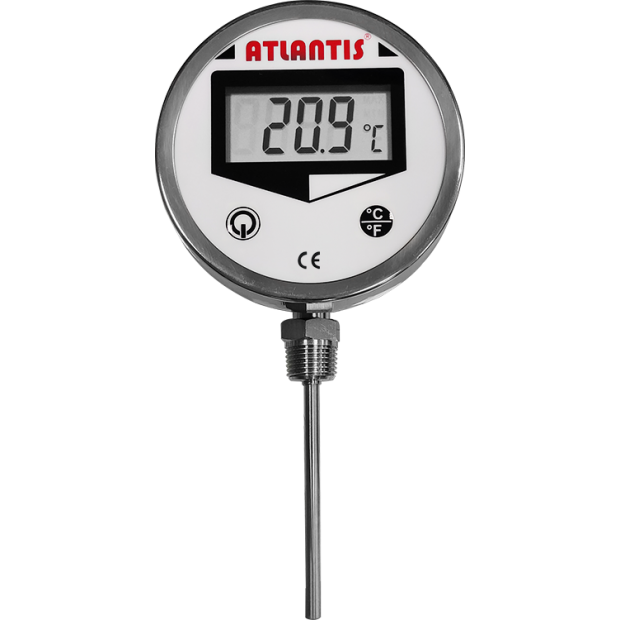

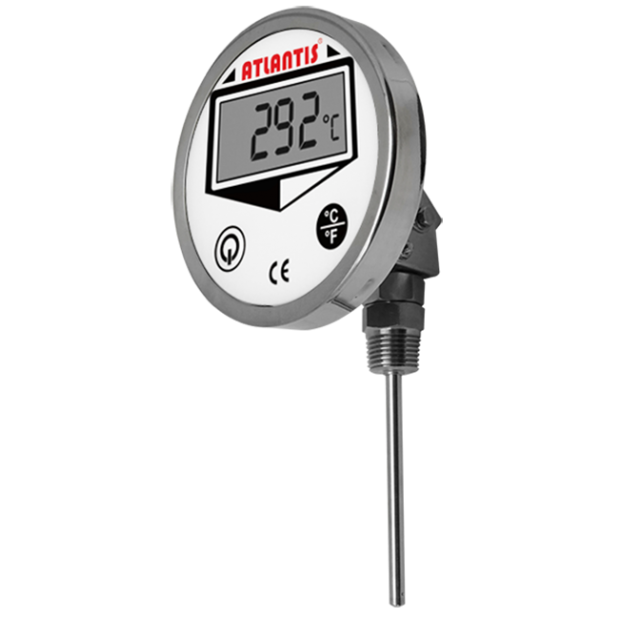

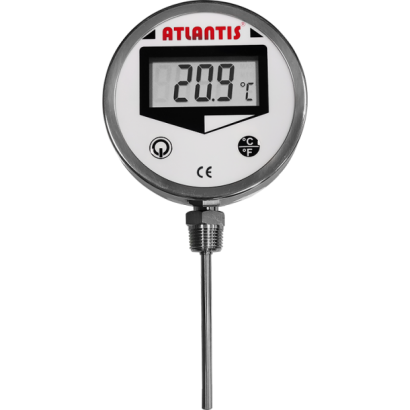

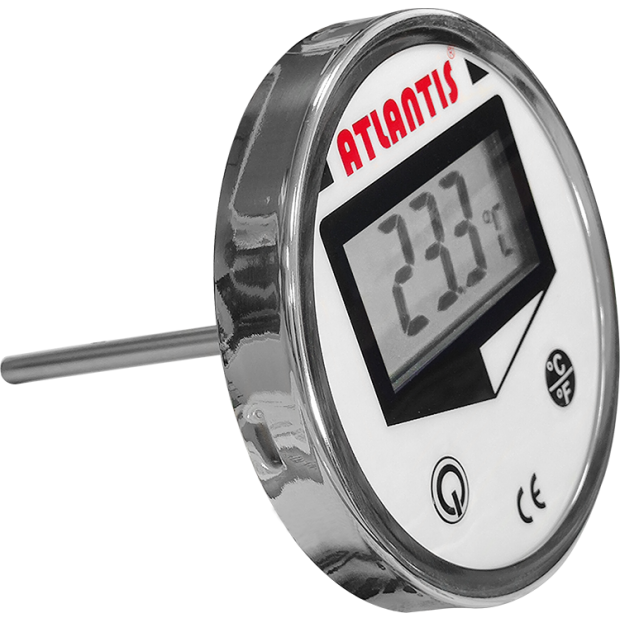

Digital Thermometer DTG-K Series
Digital Thermometer DTG-K Series
Features
■ OEM service
■ Accuracy±1℃ (-20℃ ~ 80℃)
■ Fast refresh rate: 1 sec/times
■ Switchable temperature unit: ℃/℉
■ OEM service
■ Accuracy±1℃ (-20℃ ~ 80℃)
■ Fast refresh rate: 1 sec/times
■ Switchable temperature unit: ℃/℉
DETAIL
Model: DTG-K Series
Features
■ OEM service
■ Accuracy±1℃ (-20℃ ~ 80℃)
■ Fast refresh rate: 1 sec/times
■ Switchable temperature unit: ℃/℉
Main Specifications
▼Size
Φ4”(Standard)
Φ3”(Options)
▼Installation type
KT – Back mount
KI – Bottom mount
KA – Adjustable angle
▼Window
Material: PC
With O-ring sealed
▼Process connection
Material: SS304
With O-ring sealed
Size: 1/4”, 1/2”
Type: BSPT, NPT, PF
▼Stem
Material: SS 304
Outer diameter: 6mm
Length: include thread 79mm / 98mm
▼Temperature range
Min.: -50℃
Max.: +200℃
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Ambient temperature
-20℃~+50℃
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS 304
▼Screen display
29mm*60mm
4-digit LCD
Resolution: 0.1
Switchable temp. unit: ℃/℉
▼Refresh rate
1 times/sec
▼Power supply
LR44 button battery (Φ11.3mm*6mm)
▼Accuracy
±1℃ (-20℃~ 80℃)
±2℃ (Other temperature)
