Digital Thermometer gauge

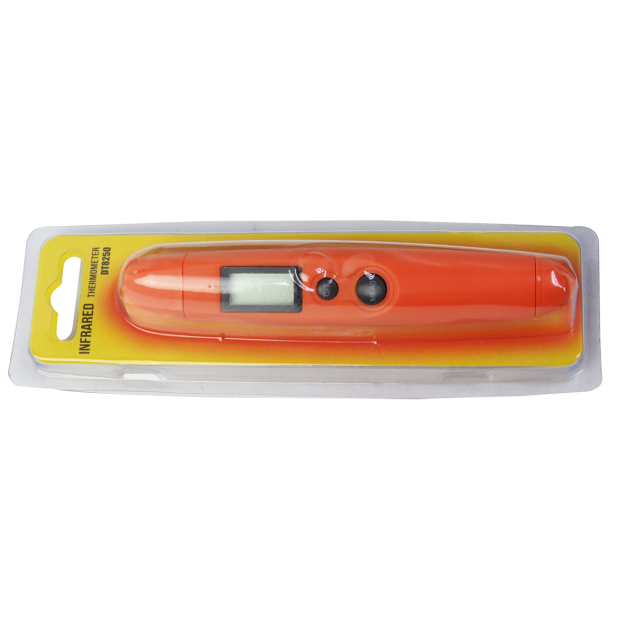

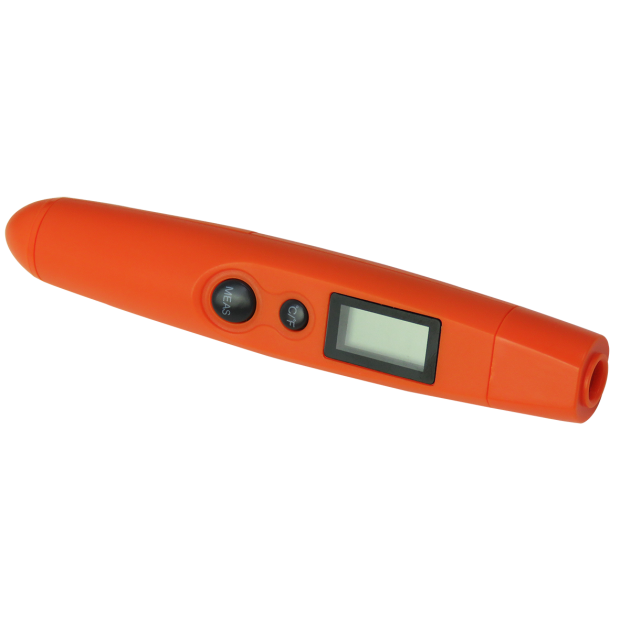

Pen-shape Infrared Thermometer AT8250
Pen-shape Infrared Thermometer AT8250
AT8250 pen-shaped infrared thermometer adopts non-contact temperature measurement, which ensuring safety, accuracy and fast measurement on target temperature. It have been applied in mechanical, chemical, ceramic, light industry, food, metallurgy, electrical and heat treatment industry.
Suitable for high temperature, hazardous objects surface temperature measurement which are hard to close.
Suitable for high temperature, hazardous objects surface temperature measurement which are hard to close.
DETAIL
Model: AT8250
Introduction
AT8250 pen-shaped infrared thermometer adopts non-contact temperature measurement, which ensuring safety, accuracy and fast measurement on target temperature. It have been applied in mechanical, chemical, ceramic, light industry, food, metallurgy, electrical and heat treatment industry. Suitable for high temperature, hazardous objects surface temperature measurement which are hard to close.
Features
■ Auto power off design to conserve energy
■ Auto hold measured value
Main Specifications
▼Screen
PC
▼Distance to spot ratio
1:1
▼Temperature range
Min.: -50°C
Max.: +250°C
▼Refresh rate
< 0.8 sec per time
▼IR resolution
0.95
▼Ambient temperature
0°C~+50°C
▼Storage temperature
-20°C~+50°C
▼Relative humidity
10~95% RH (non-condensed)
▼Response time
500 ms
▼Spectral response
8-14 um
Other Specifications
▼Body
Silicone gel coated PC
▼Display
4-digit LCD
Backlight on/off
Resolution 0.1°C / 0.1°F
▼Infrared set
1 set
▼Screen size
18 x 9 mm
▼Power supply
LR44 x2
▼Accuracy
+/-2°C or 2%
