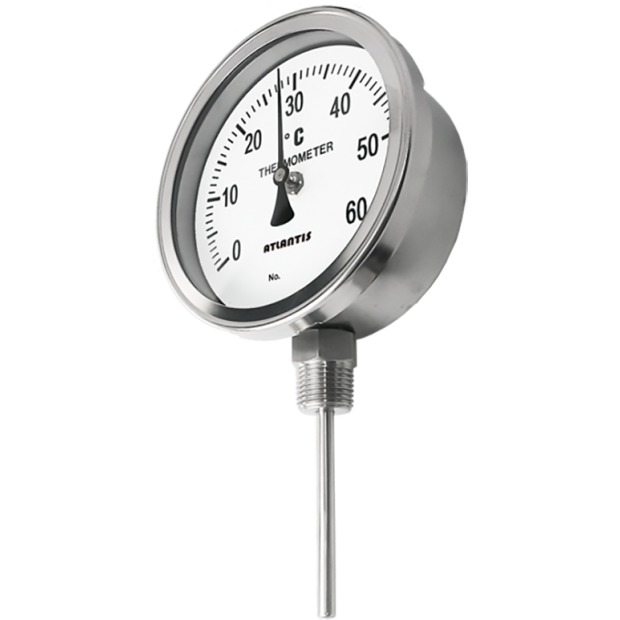

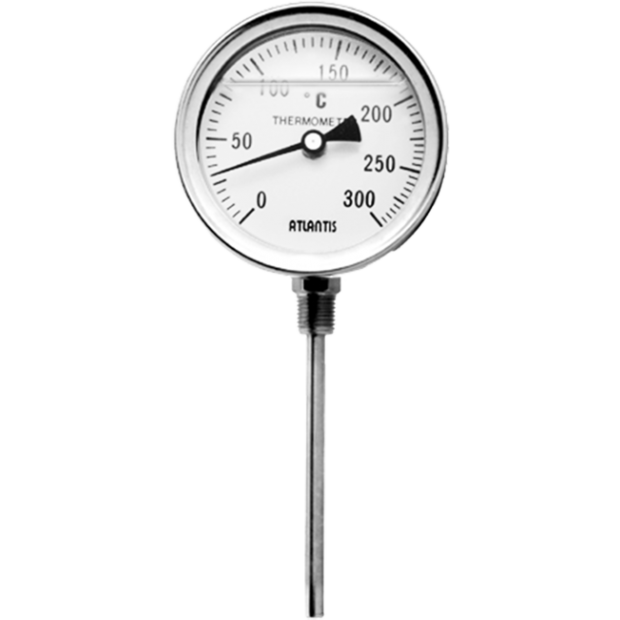

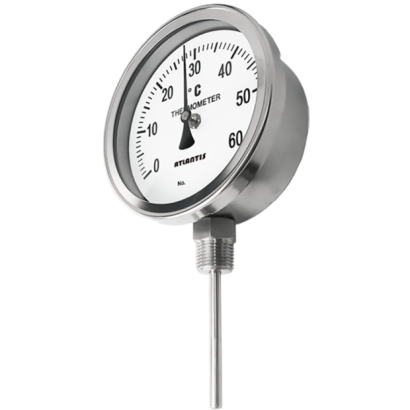

Bimetal Thermometer (Bottom Mount Type) BTI
Bimetal Thermometer (Bottom Mount Type) BTI
BTI bottom mount type thermometer adopts bimetallic measuring elements with wide temperature measurement range (-50 to 600℃). Stem length and outer diameter can be customized upon request, which makes it suitable for various industrial environment.
DETAIL
Model: BTI
Introduction
BTI bottom mount type thermometer adopts bimetallic measuring elements with wide temperature measurement range (-50 to 600℃). Stem length and outer diameter can be customized upon request, which makes it suitable for various industrial environment.
Features
■ OEM services
■ All stainless steel design
■ Customized stem length and outer diameter
■ External adjustable screw
■ Dual temperature unit scale (℃/℉)
■ Filled with liquid to improve vibration-proof performance and service life (option)
■ Install a switch contact (option)
Main Specifications
▼Size
2.5”, 3”, 4”, 5”, 6”
▼Installation type
Bottom mount
▼Window
Glass
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”
(Option: 3/4”,1” )
Thread type: BSPT, NPT, PF
▼Stem
Material: SS304／SS316
Outer diameter: 6.35mm
Length: 63mm ~ 2032mm
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable media
Liquid and gas that compatible with SS304
▼Liquid-filling (Option)
Glycerin
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS304
With external adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Bimetal
Temperature sensing area: last 2”~4”of stem
▼Temperature accuracy
±1℃＜-20℃~80℃＞
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
