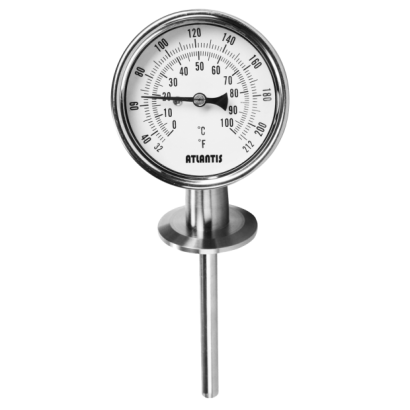

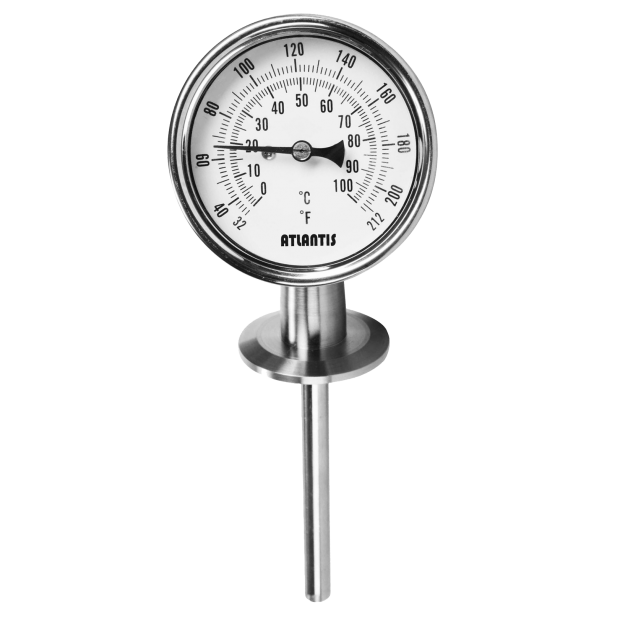

Sanitary Bimetal Thermometer (Bottom mount type) BTI-S
Sanitary Bimetal Thermometer (Bottom mount type) BTI-S
Features
■ OEM service
■ Comply with 3A sanitary standard
■ Bottom mount type
■ All stainless steel design
■ Specify oil type available upon request
■ Customized stem outer diameter & length (Include ferrule length)
■ External adjustable screw
■ OEM service
■ Comply with 3A sanitary standard
■ Bottom mount type
■ All stainless steel design
■ Specify oil type available upon request
■ Customized stem outer diameter & length (Include ferrule length)
■ External adjustable screw
DETAIL
Model: BTI-S
Features
■ OEM service
■ Comply with 3A sanitary standard
■ Bottom mount type
■ All stainless steel design
■ Specify oil type available upon request
■ Customized stem outer diameter & length (Include ferrule length)
■ External adjustable screw
Main Specifications
▼Size
2.5”, 3”, 4”,5”,6”
▼Installation type
Bottom mount
▼Window
Glass
▼Process connection
Material: SS 304／SS 316
Size:
Tri-Clamp 0.75”(Ø24.89mm)
Tri-Clamp 1”(Ø50.8mm)
Tri-Clamp 1.5”(Ø50.8mm)
Tri-Clamp 2”(Ø63.5mm)
Tri-Clamp 2.5”(Ø76.2mm)
Tri-Clamp 3”(Ø91.44mm)
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm
(Others available upon request)
Length: Min. 4” Max. 80”
(Include ferrule length)
<Thermowell can be customized in accordance with stem length>
▼Liquid-filling (option)
Glycerin／Silicon oil／Vegetable oil
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with connection material
▼Protection level
IP54 (standard) / IP65 (option)
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS 304／SS 316
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Blue and black scale
▼Measuring elements
Bimetal
Temperature sensing area: Last 50mm of stem
▼Temperature accuracy
±1℃＜-20℃~80℃＞
▼Operating temperature
Stabilization: 3/4* F.S.
Short-time: 1* F.S.
