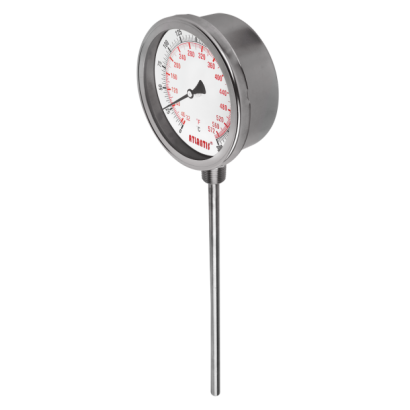

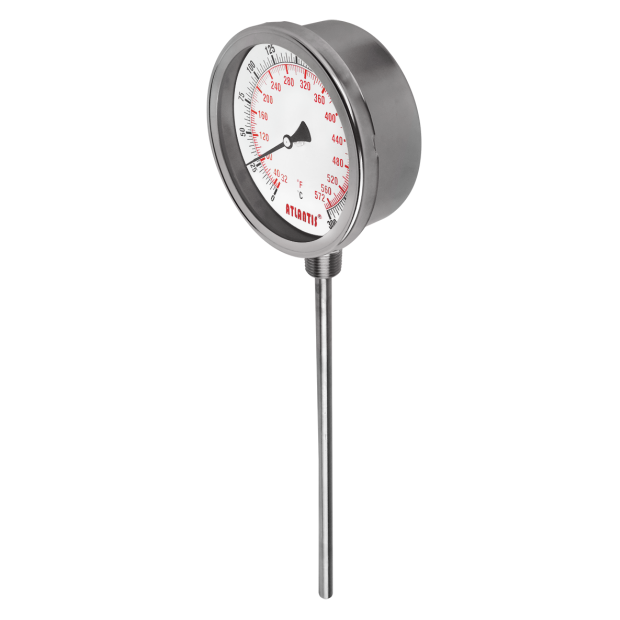

Medium-Actuated Thermometer ITI
Medium-Actuated Thermometer ITI
Features
■ OEM service
■ Media-actuated thermometer with fast response to ambient temperature
■ All stainless steel design
■ External adjustable screw
■ Full scale accuracy within 1.5%
■ Customized stem length
■ External adjustment screw
■ Dual temperature unit scale (℃/℉)
■ OEM service
■ Media-actuated thermometer with fast response to ambient temperature
■ All stainless steel design
■ External adjustable screw
■ Full scale accuracy within 1.5%
■ Customized stem length
■ External adjustment screw
■ Dual temperature unit scale (℃/℉)
DETAIL
Model: ITI
Features
■ OEM service
■ Media-actuated thermometer with fast response to ambient temperature
■ All stainless steel design
■ External adjustable screw
■ Full scale accuracy within 1.5%
■ Customized stem length
■ External adjustment screw
■ Dual temperature unit scale (℃/℉)
Main Specifications
▼Type
T type / I type / A type
▼Size
3”, 4”,5”,6”
▼Window
Glass
▼Installation type
Bottom mount
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”,3/4”,1”
Thread type: BSPT, NPT, PF
▼Stem
Material: SS 304／SS 316
Outer diameter: 6.35mm
(Option: 6mm, 8mm, 9.5mm, 12 mm)
The length of stem without thread:
T type：40 mmL
(Min. 35 mmL for > 200℃)
I type＆A type：60mmL
(Min. 40 mmL for > 200℃)
▼Temperature range
Min. -50°C
Max. +600°C
▼Applicable fluid
Liquid and gas that compatible with SS304
▼Protection level
IP 54
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS304
External adjustable screw
(Hexagonal flathead screw)
▼Pointer
Aluminum with black enamel
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Media-expansion
Temperature sensing area : last 2”~4”of stem
▼Temperature accuracy
1.5% (Option: 1%)
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
