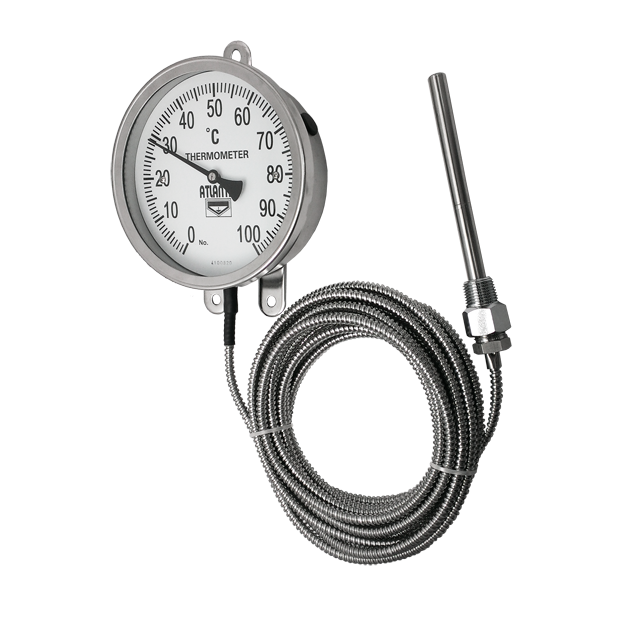

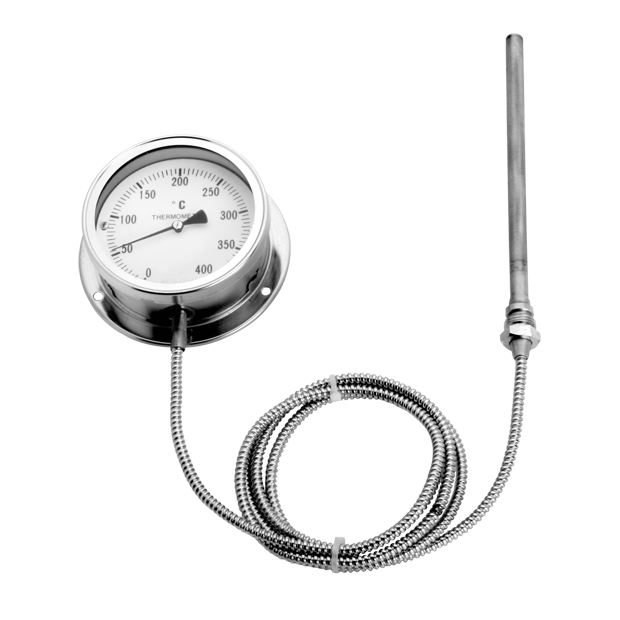

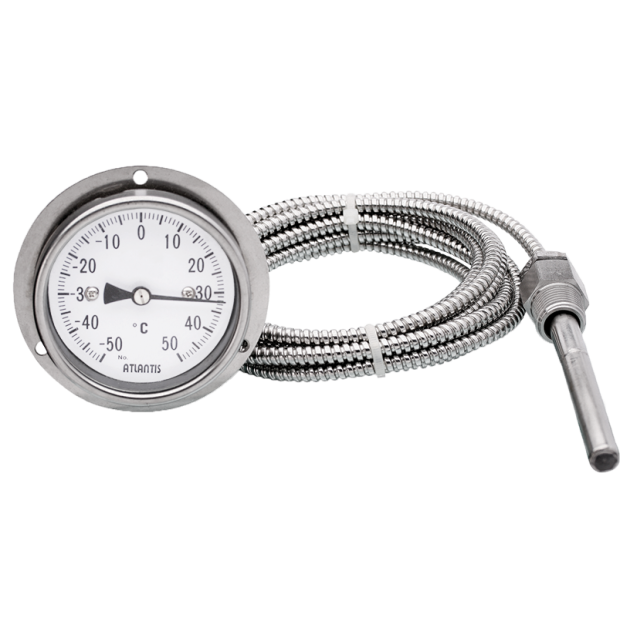

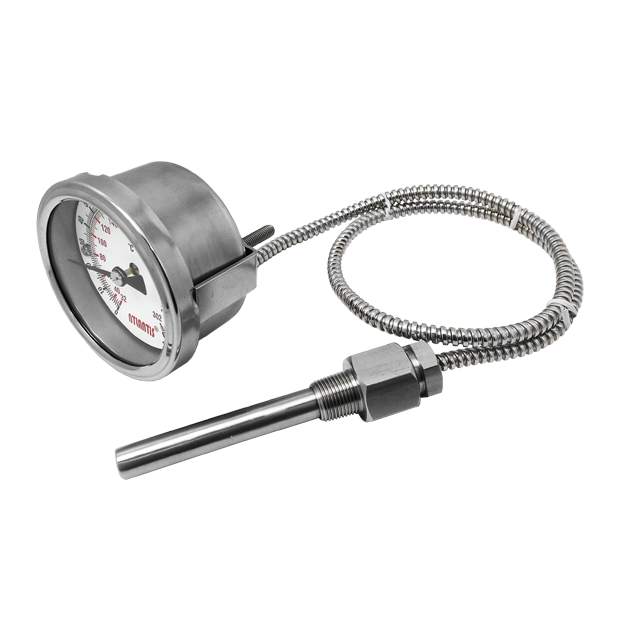

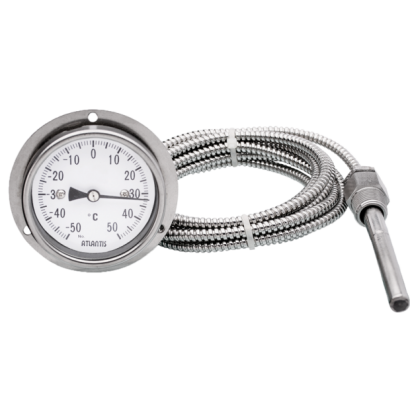

Remote Reading Thermometer FT series
Remote Reading Thermometer FT series
The capillary of remote reading thermometer is filled with gas or liquid as its sensing elements.
FT series thermometer is frequently used in remote temperature measurement to monitor temperature from distance.
The outer diameter and length of stem and capillary can be customized to meet the needs of various installation environments.
FT series thermometer is frequently used in remote temperature measurement to monitor temperature from distance.
The outer diameter and length of stem and capillary can be customized to meet the needs of various installation environments.
DETAIL
Model: FT series
Introduction
The capillary of remote reading thermometer is filled with gas or liquid as its sensing elements. FT series thermometer is frequently used in remote temperature measurement to monitor temperature from distance. The outer diameter and length of stem and capillary can be customized to meet the needs of various installation environments.
Features
■ OEM service
■ All stainless steel design
■ Various installation types
■ Stem／Capillary’s outer diameter and length can be customized upon request
■ Media-actuated thermometer can fast response to ambient temperature
Main Specifications
▼Size
3”, 4”, 5”,6”
▼Installation type
Back mount with flange (FTFF)
Back mount with U-clamp (FTFU)
Wall mount with flange (FTWF)
Wall mount with 3-hole flange (FTWE)
▼Window
Glass
▼Process connection
Material: SS304
1/2”PT
3/8”PT
With swivel nut (male thread)
▼Stem
Material: SS304／SS316
Length: 150mm (standard)
Outer diameter: 12mm
Outer diameter／length can be customized upon request
▼Capillary
Material: SS304
Length: 3M
Outer diameter: 6.35mm
Outer diameter／length can be customized upon request
▼Temperature range
Min. -50°C
Max. +650°C
▼Liquid-filling (option)
Glycerin
▼Applicable media
Liquid and gas that compatible with SS304
▼Protection level
IP54 / IP65 (option)
Other Specifications
▼Ring
Stainless steel
Outside bayonet
▼Case
SS 304
▼Pointer
Aluminum with black enamel
Adjustable pointer
▼Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
▼Movement
Copper alloy
▼Measuring elements
Gas-actuated (standard)
Liquid-actuated (option)
▼Temperature accuracy
±1℃＜-20℃~80℃＞
▼Operating temperature
Stability: 3/4* full scale
Short-time: 1* full scale
