Media-actuated Thermometer with Electrical Contact MS-IT Series
Media-actuated Thermometer with Electrical Contact MS-IT Series
MS-IT series remote reading thermometer with micro switch, features high contact rating 5A, which is suitable for temperature control in high current environment.
DETAIL
Model: MS-IT Series
Introduction
MS-IT series remote reading thermometer with micro switch, features high contact rating 5A, which is suitable for temperature control in high current environment.
Features
■ OEM service
■ Adopts SPDT micro switch, max. contact rating 5A, suitable for high current environment
■ Gauge all stainless steel design
■ Accuracy ±1%F.S.
■ Contact number SPDTx1 / SPDTx2
■ Media-actuated measurement ensuring the fastest reaction to ambient temperature
Main Specification
▼Gauge size
4”, 6”
▼Installation type

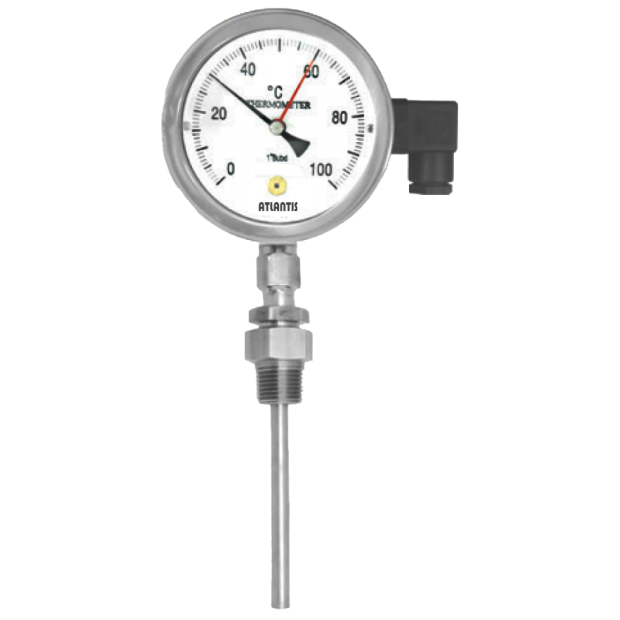

Bottom mount (MS-ITI)

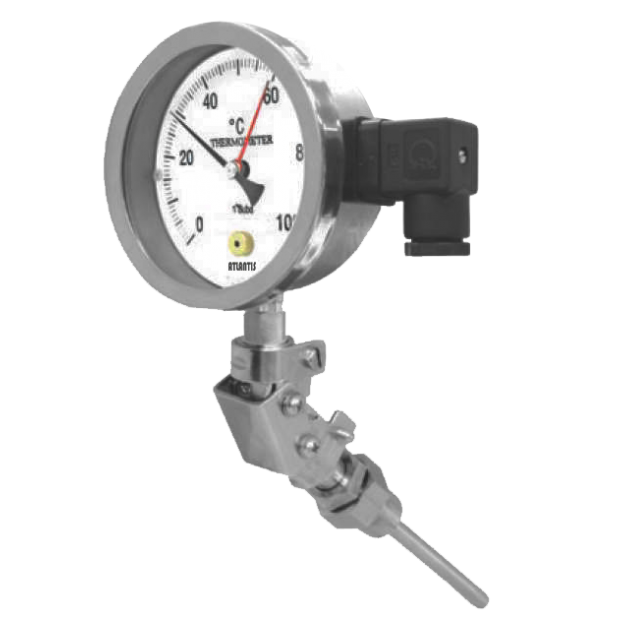

Adjustable angle (MS-ITA)
▼Window
Glass
Option: safety glass
▼Process connection
Material: SS304
Thread size: 1/4”, 3/8”,1/2”
Thread type: NPT, PF
Other thread type and material available upon request
▼Stem
Material: SS304
Outer dia.: Ø6 / 8 / 10 / 12 mm
Length: please refer to stem specification table
▼Temperature range
Min.: -200°C
Max.: +600°C
▼Ambient temperature
-20 to +70°C
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Protection level
IP 65
Other Specification
▼Ring
Stainless steel
▼Case
SS304
▼Switch contact type
Single pole double throw SPDT
▼Operating voltage
250 VAC max.
28 VDC max.
▼Contact rating
AC: 5A max.
DC: 5A max. (ohmic load)
3A max. (inductive load)
▼Contact material
Pure silver 999.9
▼Contact number
SPDT x1 / SPDT x2
▼Pointer
Aluminum with black enamel
▼Dial face
All black scale on whiteboard
▼Measuring elements
Gas-actuated (standard)
Liquid-actuated (option)
▼Gauge accuracy
±1%
▼Switch action
±2%
▼Max operating temperature
1.3*F.S.
