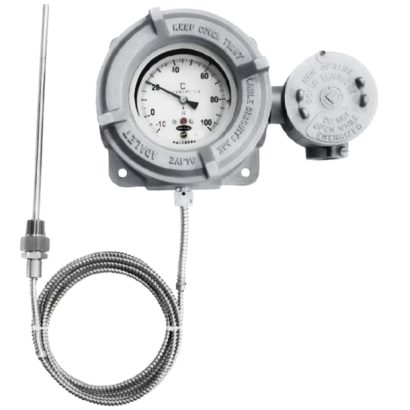

Remote Reading Explosion-proof Thermometer with Electrical Contact (Micro Switch Type) MS-FTXWF Series
Remote Reading Explosion-proof Thermometer with Electrical Contact (Micro Switch Type) MS-FTXWF Series
MS-FTXWF remote reading thermometer with micro switch, features high contact rating 5A and explosionproof enclosure, which is suitable for temp control in high current and hazardous environment.
DETAIL
Model: MS-FTXWF Series
Introduction
MS-FTXWF remote reading thermometer with micro switch, features high contact rating 5A and explosionproof enclosure, which is suitable for temp control in high current and hazardous environment.
Features
■ Adopts SPDT micro switch, max. contact rating 5A, suitable for high current environment
■ Explosion-proof enclosure
■ Capillary installed, suitable for remote temperature measurement
■ Gauge all stainless steel design
■ Accuracy ±1%F.S.
■ Contact number SPDTx1 / SPDTx2
■ Media-actuated measurement ensuring the fastest reaction to ambient temperature
Main Specifications
▼Size
6”
▼Type
MS-FTXWF-L (Liquid-filled)
MS-FTXWF-A (Gas-filled)
▼Installation type
Wall mount with flange
▼Window
Acrylic
▼Process connection
Material: SS304
1/2”NPT male
3/4”NPT male
With swivel nut (male thread)
▼Conduit connection
3/4”NPT female
▼Stem
Material: SS304
Outer dia.: Ø6 / 8 / 10 / 12 mm
Length: please refer to stem specification table
▼Capillary
Length:
Max. 30M (MS-FTXWF-L),
Max. 50M (MS-FTXWF-A)
▼Temperature range
-70 to 400℃ (MS-FTXWF-L)
-200 to 650℃ (MS-FTXWF-A)
▼Ambient temperature
-20 to +70°C
▼Applicable fluid
Liquid and gas that compatible with connection’s material
▼Protection level
IP65
▼Explosion-proof level
Class I, Gr B, C &D,
Class II, Gr, E, F &G
Other Specifications
▼Case & cover
Die casting aluminum
▼Switch contact type
Single pole double throw SPDT
▼Operating voltage
250 VAC max.
28 VDC max.
▼Contact rating
AC 125/250V: 5A
DC 24V: 0.5/0.25A
▼Contact material
Pure silver 999.9
▼Contact number
SPDT x1 / SPDT x2
▼Pointer
Aluminum with black enamel
▼Dial face
Black scale on whiteboard
Pressure unit, scale, and color can be customized upon request
▼Measuring elements
Gas-actuated／Liquid-actuated
▼Gauge accuracy
±1%F.S.
▼Switch action
±1.6~3%F.S.
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
▼Other requests (Option)
Third party notarized documents
Inspection report
Tag
Customized dial face (scale, color, unit, etc.)
Thermowell (thermowell specifications are customized according to the selected stem specifications)
Remove external adjustable screw
Remove anti-sway pointer (better sensibility)
IP67 (sealed with silicone rubber O-ring)
Epoxy coated capillary
