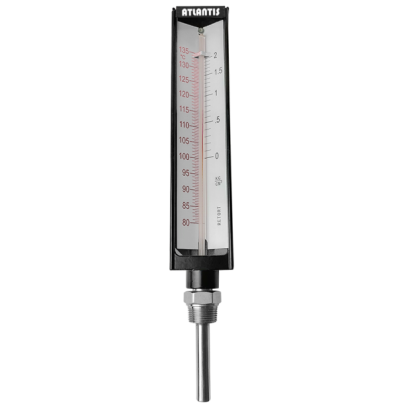

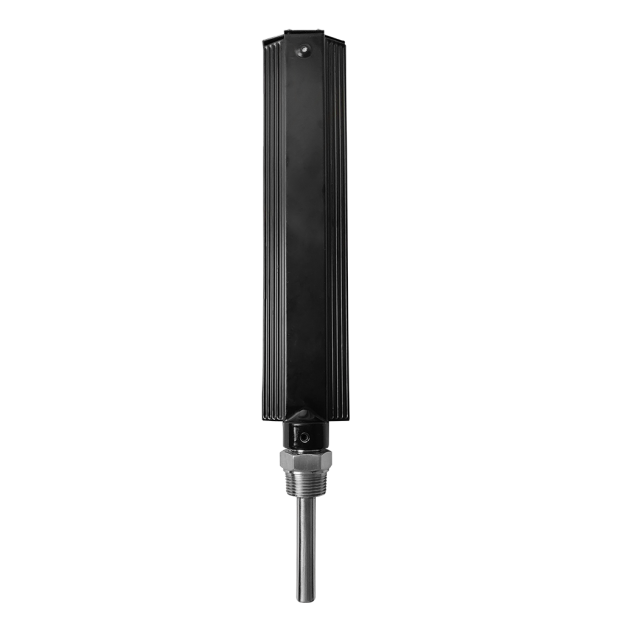

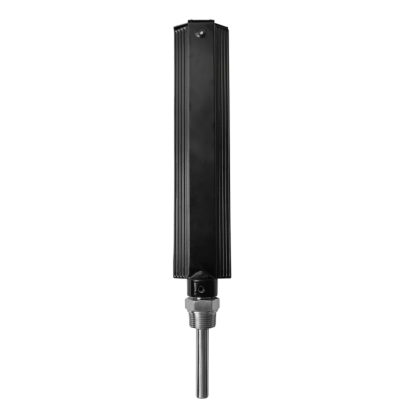

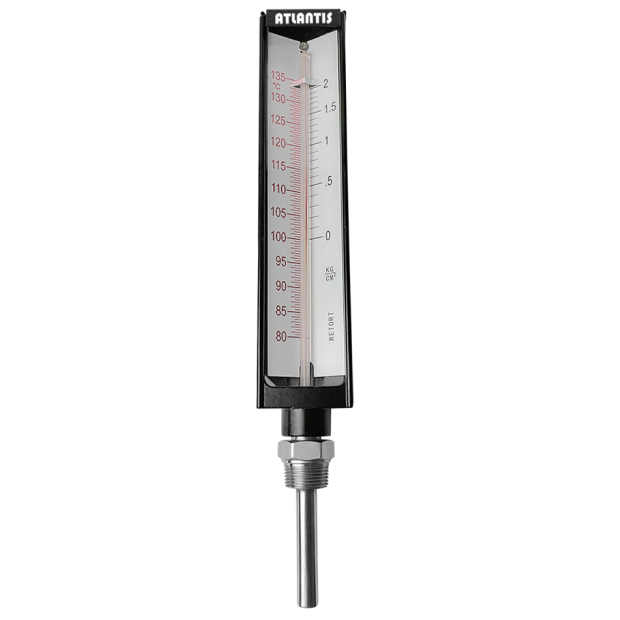

Model: FDT
Introduction
FDT thermometer are specially designed for high temperature sterilization equipment in food, pharmaceutical, and canning industry. The thermometer may have an optimum application with remote recording thermometer and pressure gauge.
Features
■ OEM Service
■ Mercury thermometer with well characteristic of constant thermal expansion.
■ Red scale reflector to ensure legibility
Main Specifications
▼Size
9”
▼Window
Glass
▼Stem
Material: Stainless steel
Length without thread :65mm*Φ12mm <Standard>
<Options: Length without thread 50mm or others>
▼Process connection
3/4”PT
▼Temperature range
Min.: 80°C
Max: 135°C
▼Temperature error
Standard: calibrated temp.
Every ±4°C
max. error: ±0.25% F.S
▼Application
Food / Pharmaceutical / Canning industry
Other Specifications
▼Top cover
Screw Fixed
▼Housing
Aluminum alloy with black enamel
▼Liquid in glass
Mercury
▼Dial
White board with black scale V-shape
▼Measuring elements
Thermal expansion linearity of mercury
▼Accuracy
±0.5℃
▼Operating temperature
Steady: 3/4* full scale
Short time: 1* full scale
▼Other requests (Option)
Delivery inspection report
Tag
Third party notarized documents
Thermometer casing
