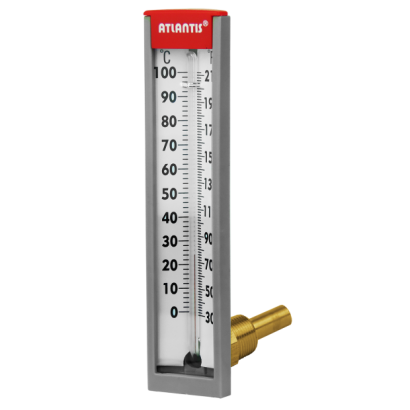

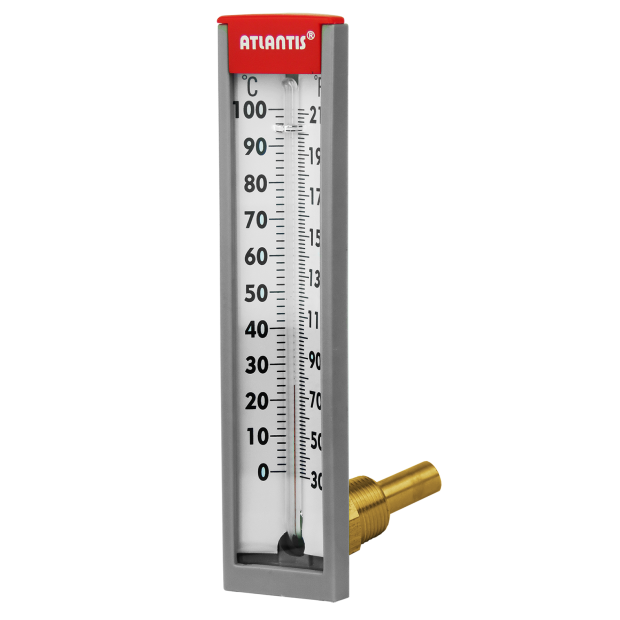

6”/6.5”Industrial Glass Thermometer (L type) PGL6
6”/6.5”Industrial Glass Thermometer (L type) PGL6
PGL6 industrial glass thermometer adopts liquid expansion as measuring elements. The glass tube is filled with organic liquid exclude mercury. Temperature range -10 ~ 200℃.
DETAIL
Model: PGL6
Features
■ OEM service
■ Glass tube filled with liquid exclude mercury
■ Accuracy±1% scale
Main Specifications
▼Size
6”
▼Installation type
Bottom mount
▼Window
Glass
▼Stem
Material: copper alloy
Outer diameter: 9.5 mm
Length: 60 mm (include thread)
▼Stem connection
Material: copper alloy
Specification: 3/4*16
▼Thermowell
Material: copper alloy
Specification: 1/2”PT
Length: 48 mm (include thread)
▼Temperature range
-10°C~+50°C / 0°C~100°C
▼Applicable fluid
Liquid and gas that compatible with stem’s material
▼Protection level
IP 43
Other Specifications
▼Case
Reinforced plastic ABS
▼Liquid-in-glass
Red organic liquid
▼Dial face
Red and black scale V-shape concave design
▼Measuring elements
Liquid-expansion
Temperature sensing area: last 1”of stem
▼Temperature accuracy
±1% scale
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
