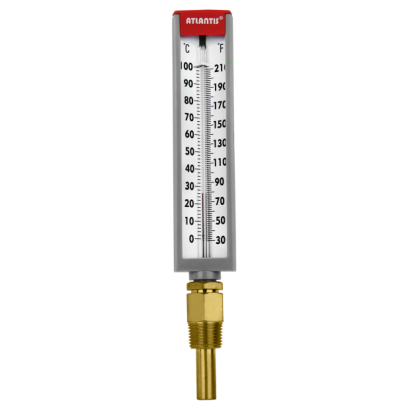

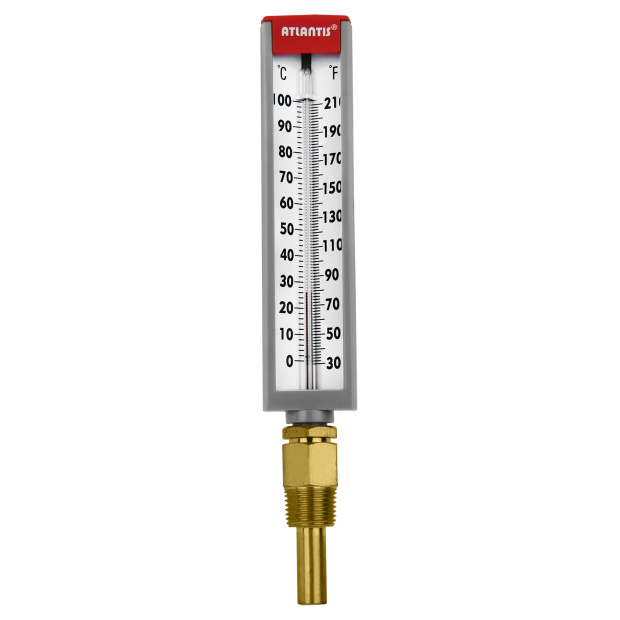

6”Industrial Glass Thermometer (Bottom mount type) PGS6
6”Industrial Glass Thermometer (Bottom mount type) PGS6
PGS6 industrial glass thermometer adopts liquid expansion as measuring elements. The glass tube is filled with organic liquid exclude mercury. Temperature range -50 ~ 200℃.
DETAIL
Model: PGS6
Introduction
PGS6 industrial glass thermometer adopts liquid expansion as measuring elements. The glass tube is filled with organic liquid exclude mercury. Temperature range -50 ~ 200℃.
Features
■ OEM service
■ Glass tube filled with liquid exclude mercury
■ Accuracy±1% scale
Main Specifications
▼Size
6”
▼Installation type
Bottom mount
▼Window
Glass
▼Stem
Material: copper alloy
Outer diameter: 9.5 mm
Length: 60 mm (include thread)
▼Stem connection
Material: copper alloy
Specification: 3/4*16
▼Thermowell
Material: copper alloy
Specification: 1/2”PT
Length: 48 mm (include thread)
▼Temperature range
-10°C~+50°C / 0°C~100°C
▼Applicable fluid
Liquid and gas that compatible with stem’s material
▼Protection level
IP 43
Other Specifications
▼Case
Reinforced plastic ABS
▼Liquid-in-glass
Red organic liquid
▼Dial face
Red and black scale
V-shape concave design
▼Measuring elements
Liquid-expansion
Temperature sensing area: last 1”of stem
▼Temperature accuracy
±1% scale
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
