Model: SG series
Introduction

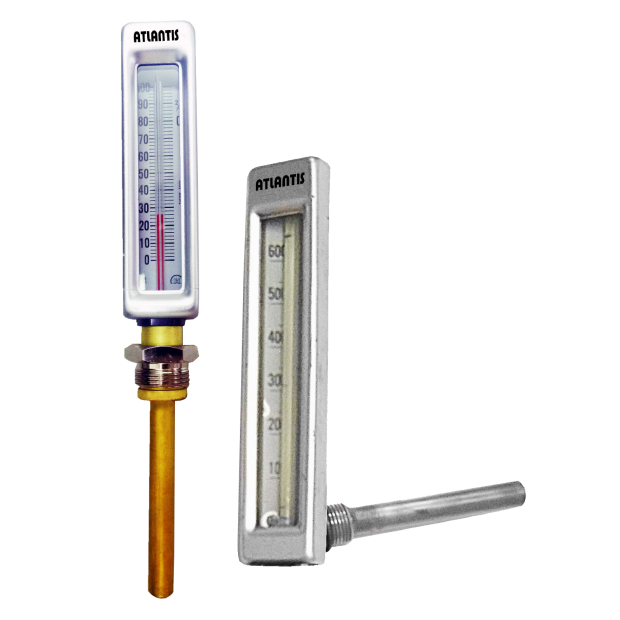

SG series glass thermometer encased with specially designed rectangular aluminum case to prevent any damage from greasy, vapor or other substances. The special design makes SG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
Features
■ Rectangular aluminum case, specially design for vessels use
■ Two types installation available: Straight ／90〫angle mount
■ 3 thermowell materials available: brass／chrome-plated steel／stainless steel
■ Temperature scale and high accuracy type available upon request
Main Specifications
▼Installation type
SGS type: Straight with thermowell
SGL type: 90〫angle with thermowell
▼Temperature range
-10~600℃
Customized temperature range scale on dial face
▼Process connection
M22x1.5 swivel nut with 3/8”, 1/2”, 3/4”PF male
Other thread types available upon request
▼Connection material
SGS-B／SGL-B type▼
Copper alloy
SGS-C／SGL-C type▼
Anodized chrome-plated steel ／stainless steel (option)
▼Stem+thermowell length
(with thread)
30／70／80／110mm
Other lengths available upon request
▼Applicable fluid
Liquid and gas that compatible with connection’s material
Other Specifications
▼Case material
Aluminum
▼Body dimension
Rectangular aluminum case
110mm x 35mmΦ／ 145mm x 35mmΦ
▼Window
Glass
▼Dial face
Single/dual scale (℃/℉) on
Aluminum whiteboard
▼Liquid-filling
Red or blue organic liquid
▼Measuring elements
Liquid-expansion
Temp. sensing area: last 2”of stem
▼Accuracy
±0.5／1／2／5／6°C
(Depends on temp. range)
