V-shape Aluminum Case Glass Thermometer VG series
V-shape Aluminum Case Glass Thermometer VG series
VG series glass thermometer encased with specially designed aluminum case to prevent any damage from greasy, vapor or other substances.
The special design makes VG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
The special design makes VG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
DETAIL
Model: VG series
Introduction
VG series glass thermometer encased with specially designed aluminum case to prevent any damage from greasy, vapor or other substances. The special design makes VG series suitable for using in merchant ship, fishing boat, high temperature exhaust environment and others industrial application.
Features
■ V-shape aluminum case, specially design for vessels use

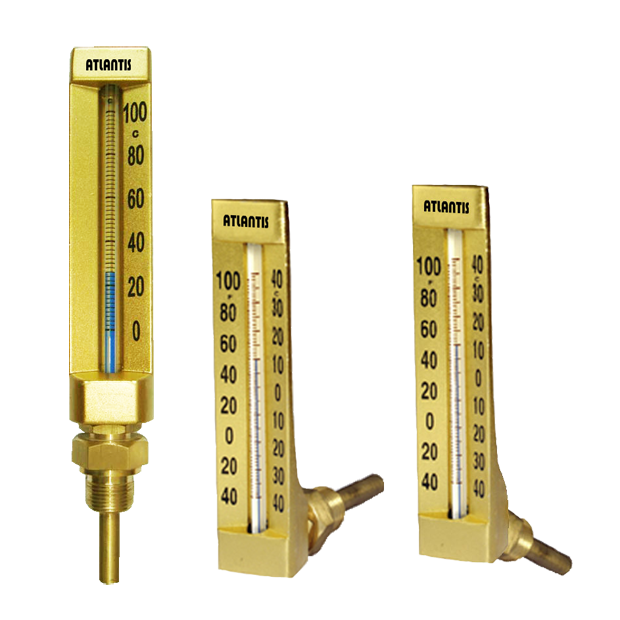

■ 3 types installation available: Straight ／90〫angle ／135〫angle mount
■ 3 thermowell materials available: brass／chrome-plated steel／stainless steel
■ Temperature scale and high accuracy type available upon request
Main Specifications
▼Installation type

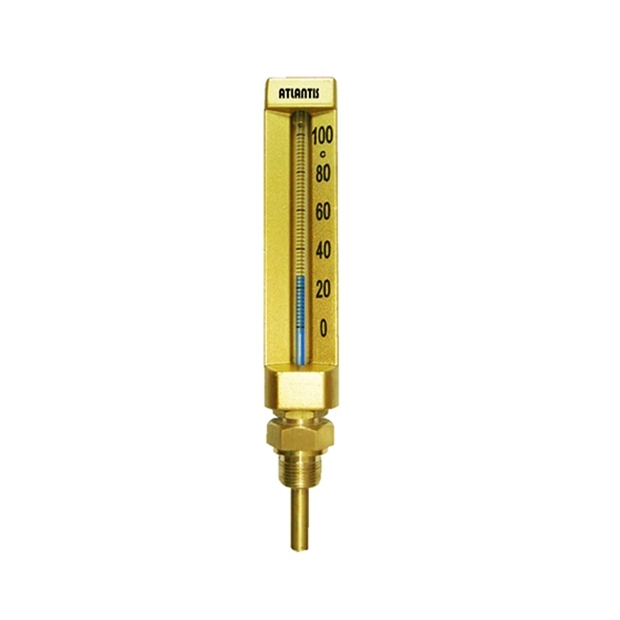

VGS type: Straight with thermowell

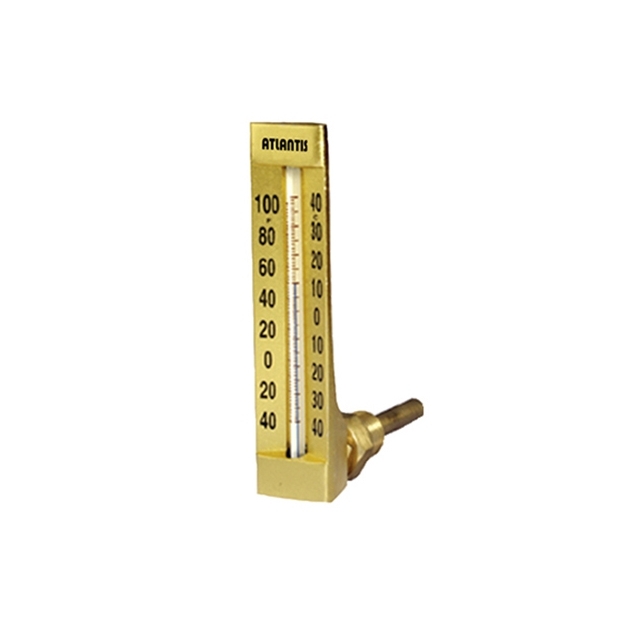

VGL90type: 90〫angle with thermowell

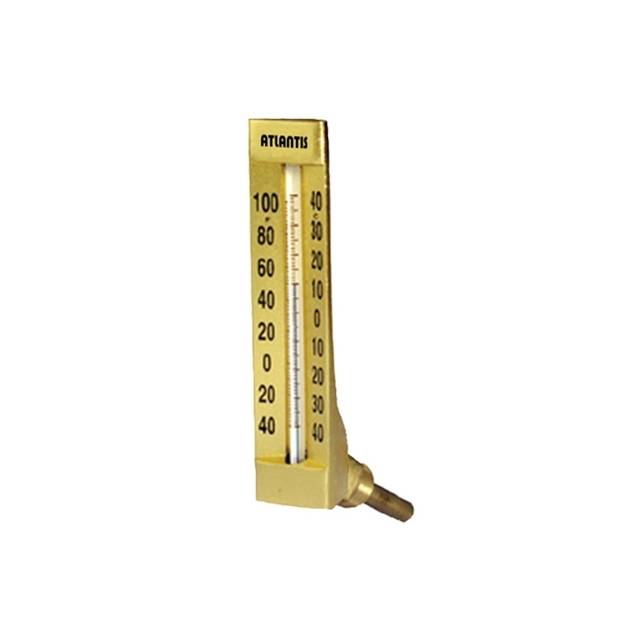

VGL135 type: 135〫angle with thermowell
▼Temperature range
-60~600℃
Customized temperature range scale on dial face
▼Process connection
1/2”PF／PT／NPT male
Other thread types available upon request
▼Connection material
Copper alloy
Option:
Chrome-plated steel／Stainless steel (option)
▼Stem+Thermowell length
(with thread)
30／40／50／63／75／100／160／200mm
Other lengths available upon request
▼Applicable fluid
Liquid and gas that compatible with connection’s material
Other Specifications
▼Case material
Gold colored anodized aluminum
▼Body dimension
V-shape aluminum case
110mm x 35mm／150mm x 35mm／200mm x 35mm
▼Window
Glass
▼Dial face
Scale engraved on case
Single／dual scale (°C／℉) available
▼Liquid-filling
Red／Blue organic liquid
▼Measuring elements
Liquid-expansion
Temp. sensing area: last 2”of stem
▼Accuracy
±0.5／1／2／5／6°C
(Depends on temp. range)
