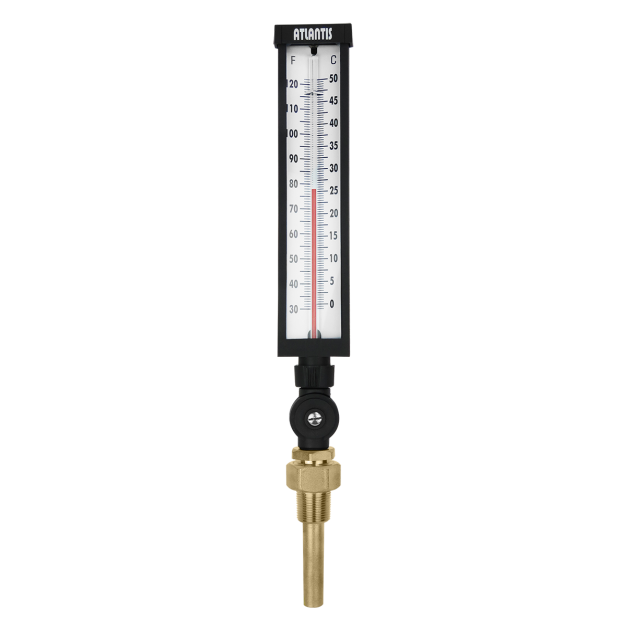

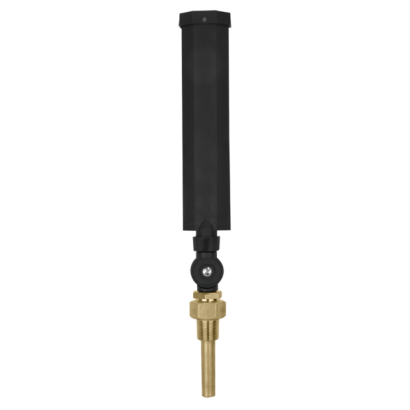

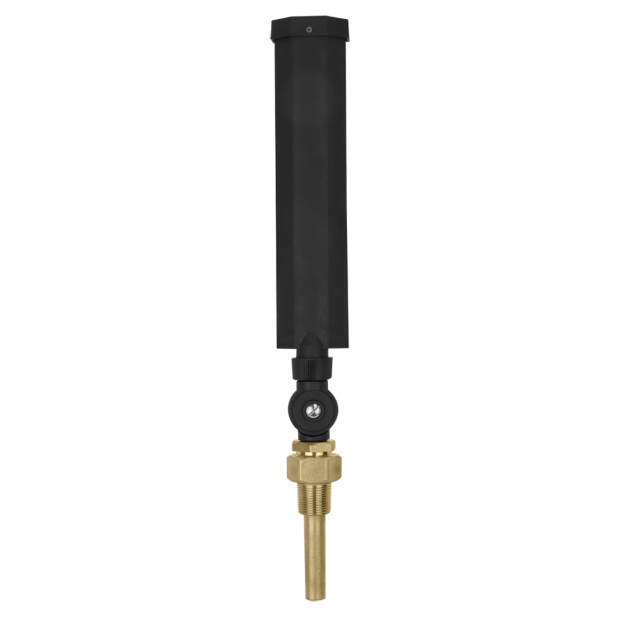

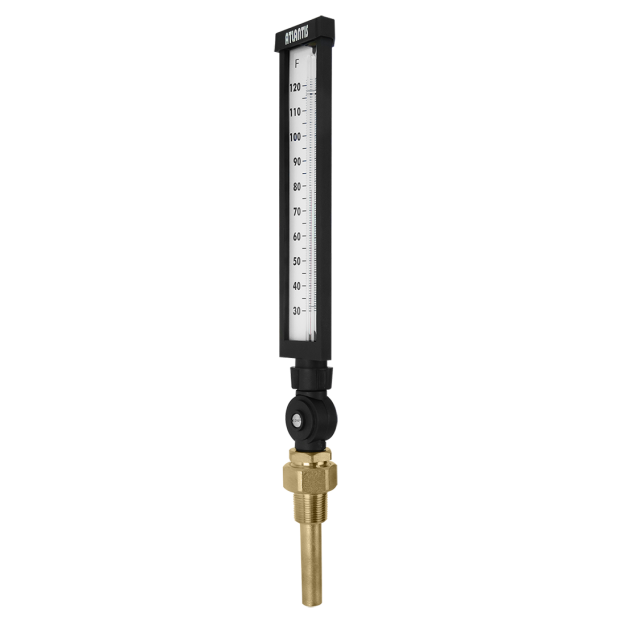

9” Adjustable Angle Industrial Glass Thermometer TGA9
9” Adjustable Angle Industrial Glass Thermometer TGA9
TGA9 Adjustable angle industrial glass thermometer adopts liquid expansion as measuring elements.
Temperature range -50 ~ 200℃. TGA9 has been widely used in air conditioning, piping and other industrial temperature measurement.
Temperature range -50 ~ 200℃. TGA9 has been widely used in air conditioning, piping and other industrial temperature measurement.
DETAIL
Model: TGA9
Introduction
TGA9 Adjustable angle industrial glass thermometer adopts liquid expansion as measuring elements. Temperature range -50 ~ 200℃. TGA9 has been widely used in air conditioning, piping and other industrial temperature measurement.
Features
■ OEM service
■ Full scale accuracy within±1 scale division
■ Stem angle can be adjusted freely
Main Specifications
▼Size
9”
▼Installation type
Adjustable angle type
▼Window
Glass
▼Stem
Material: aluminum alloy
Outer diameter: 10.9 mm
Length: 3.5”／6”
▼Stem connection
Material: copper alloy
Specification: 1-1/4”-18UNEF
Fit in 3/4”NPTthermowell
▼Thermowell
Material: copper alloy／SS 304
Length:
3.5”(90mm, include thread, outer diameter 16mm)
6”(151mm, include thread, outer diameter 23mm)
Specification: 3/4”NPT or PT
Other thread spec. available upon request
▼Temperature range
Min. -40°C
Max. +400°C
▼Applicable fluid
Liquid and gas that compatible with stem’s material
▼Protection level
IP 43
Other Specifications
▼Case
Reinforced plastic PP／Aluminum with black enamel
▼Liquid-in-glass
Red organic liquid
▼Dial face
Black scale
V-shape concave design
▼Measuring elements
Liquid-expansion
Temperature sensing area: last 2”of stem
▼Temperature accuracy
±1%F.S.
▼Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
