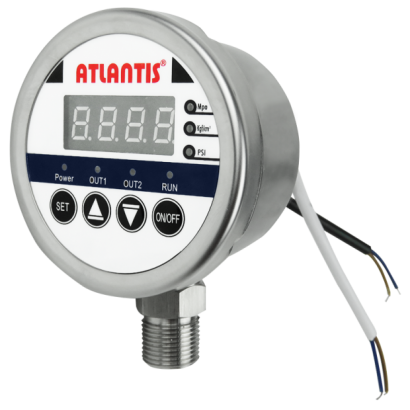

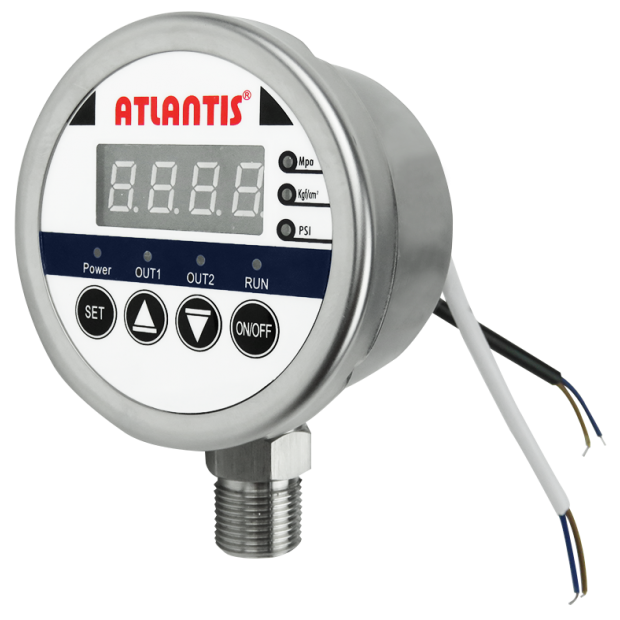

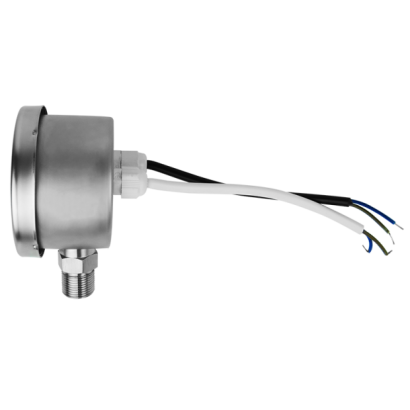

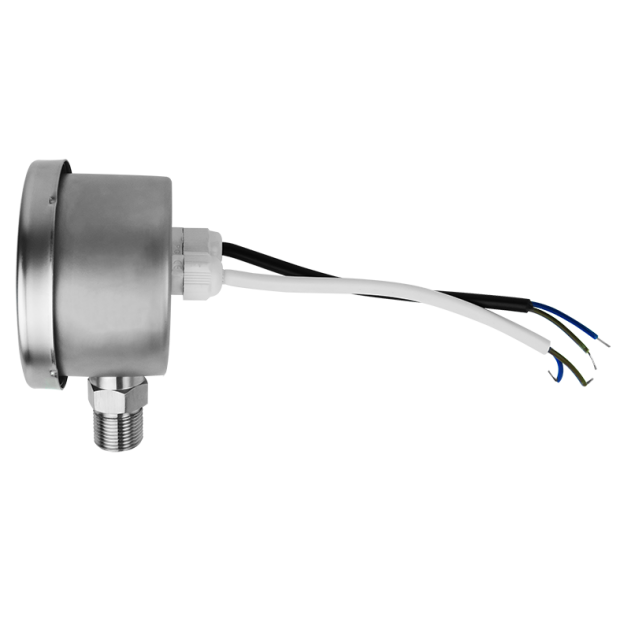

Digital Pressure Switch DPS-K3.0
Digital Pressure Switch DPS-K3.0
Features
■ OEM service
■ Easy switch wiring and setting
■ AC／DC Power supply available
■ Affordable price with long service life
■ In-built relay (one set or two set)
■ Adjustable upper limit and lower limit
■ Vibration-resistance design
■ Short circuit and reverse current protection
■ Reset to zero function
■ OEM service
■ Easy switch wiring and setting
■ AC／DC Power supply available
■ Affordable price with long service life
■ In-built relay (one set or two set)
■ Adjustable upper limit and lower limit
■ Vibration-resistance design
■ Short circuit and reverse current protection
■ Reset to zero function
DETAIL
Model: DPS-K3.0
Features
■ OEM service
■ Easy switch wiring and setting
■ AC／DC Power supply available
■ Affordable price with long service life
■ In-built relay (one set or two set)
■ Adjustable upper limit and lower limit
■ Vibration-resistance design
■ Short circuit and reverse current protection
■ Reset to zero function
Main Specifications
▼Size
3”(80mm)
▼Installation type
Bottom mount／Back mount
▼Pressure connection
Material: SS 304
1/4”PT
1/4”NPT
M20x1.5
Other specs are available, please specify your requests.
▼Pressure range
Min.: -0.1 MPa
Max.: 100 MPa
▼Applicable fluid
Liquid and gas that compatible with SS 304
▼Ambient temperature
0°C to +70°C
▼Storage temperature
-20°C to 70°C
▼Fluid temperature
+80°C
▼Operating humidity
35~85% R.H.
▼Atmospheric pressure
860…1060 mbar
▼Temperature error
Standard temp.: 22℃
max. error: ±0.5% F.S
(0~50℃)
▼Case
ABS (standard)／Stainless steel (option)
▼Screen display
4-digit LED
▼Refresh rate
2 secs/times
▼Screen size
40 (W) x 17 (H) mm
▼Pressure unit
MPa, psi, kgf/cm2
▼Resolution
0.001
▼Power supply
DC: 12/24V (standard)
AC: 220V/380V (option)
▼Switch signal
Relay x1 (standard)／Relay x2 (option)
▼Contact rating
3A
▼Measuring elements
High-tech silicon chip SS 316L diaphragm
▼Accuracy
±0.5%F.S.
▼Overpressure protection
1.5*F.S.
▼Compensated temperature
0°C to 60°C
▼Weight
270g
