Digital Pressure Gauge

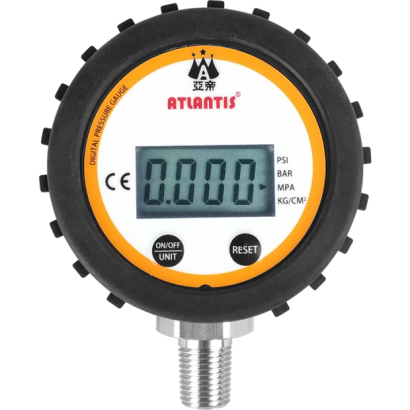

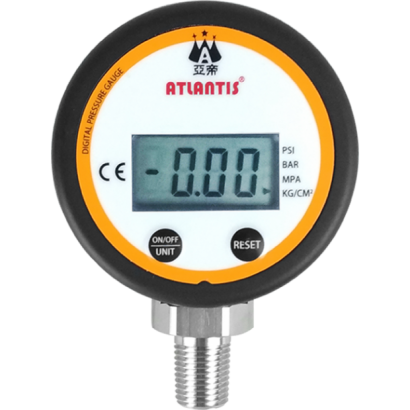

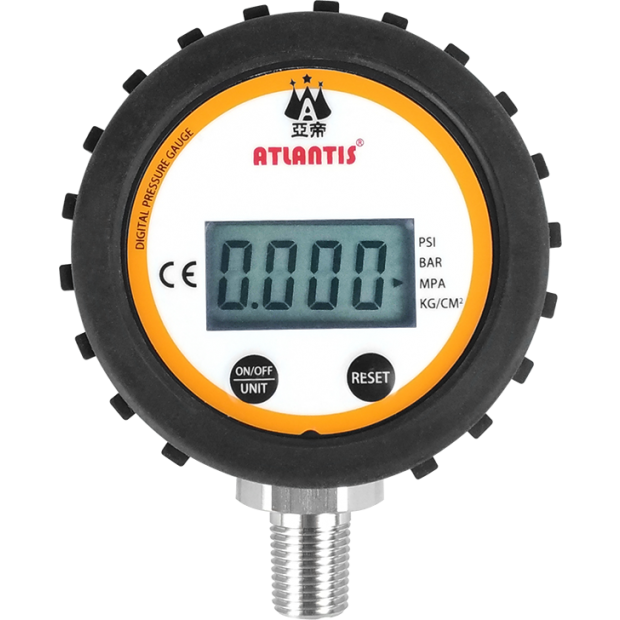

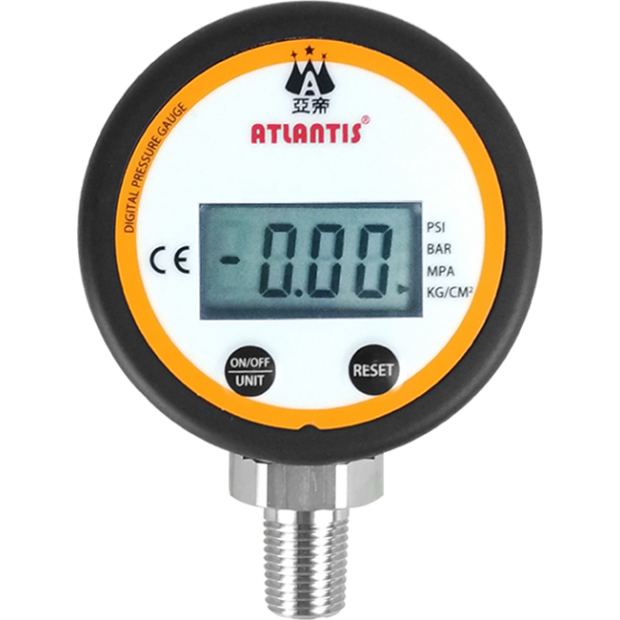

Digital Pressure Gauge (General Type) DPG-2.5
Digital Pressure Gauge (General Type) DPG-2.5
DPG-2.5 is an economic cost, convenient use and high performance digital pressure gauge, suitable for various instrument. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy within 0~5000psi pressure measurement.
DETAIL
Model: DPG-2.5
Introduction
DPG-2.5 is an economic cost, convenient use and high performance digital pressure gauge, suitable for various instrument. It adopts latest temperature compensation technology to ensure ±1.0%F.S. accuracy within 0~5000psi pressure measurement.
Features
■ OEM service
■ Affordable price and easy to operate
■ Switchable unit, zero reset, backlight and automatic shutdown
■ LCD screen with backlight ensures clear reading in the dark place
■ Adopts temperature compensation technology, full scale accuracy±1.0%
Main Specifications
▼Size
2.5”(68mm)
▼Installation type
Bottom mount
Back mount (Option)
▼Connection
Material: Stainless steel
(Option: Copper alloy)
Thread size: 1/4”(Option: 1/8”)
Thread specification: NPT, PT
▼Pressure range
0~5000 psi
▼Applicable media
Liquid and gas that compatible with material of connection
▼Operating temperature
-10℃~ 60℃
▼Storage temperature
-20℃~ 70℃
▼Operating humidity
35 ~ 85% RH
▼CE certificate
EN61326-1:2013
Other Specifications
▼Case material
Plastic
▼Screen display
4-digit LCD display with
backlight function
▼Screen size
31.5 (W) x 16.5 (H) mm
▼Power supply
CR123A lithium battery (3.0 V, 1400 mAh)
3 years battery service life (backlight off mode)
▼Switchable pressure unit
psi, bar, MPa, kg/cm2
▼Resolution
0.1 psi, 0.01bar, 0.001MPa, 0.01 kg/cm2
▼Accuracy
±0.5%F.S. (@22℃)
±1.0%F.S. (0℃~ 50℃)
▼Temperature compensation
-10℃~ 60℃
▼Max. pressure resistance
2*F.S.
